| Manufacturer | Analog Devices |
| Description | 64-Position Up/Down Control Digital Potentiometer |
| Pages / Page | 16 / 5 — AD5227. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating. ESD CAUTION |
| Revision | B |
| File Format / Size | PDF / 387 Kb |
| Document Language | English |

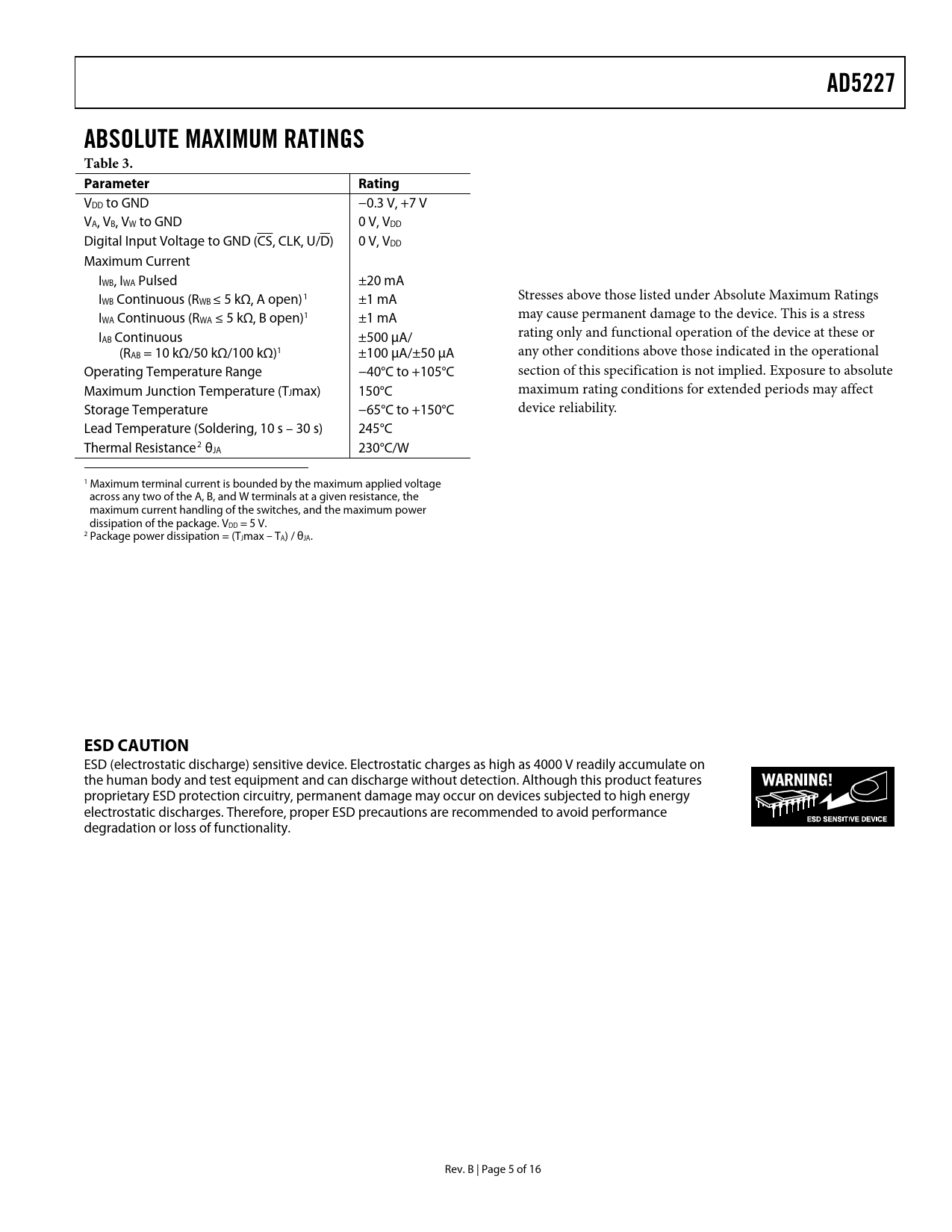

AD5227. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5 link to page 5
AD5227 ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating
V DD to GND −0.3 V, +7 V VA, VB, VW to GND 0 V, VDD Digital Input Voltage to GND (CS, CLK, U/D) 0 V, VDD Maximum Current IWB, IWA Pulsed ±20 mA I Stresses above those listed under Absolute Maximum Ratings WB Continuous (RWB ≤ 5 kΩ, A open) 1 ±1 mA I may cause permanent damage to the device. This is a stress WA Continuous (RWA ≤ 5 kΩ, B open)1 ±1 mA I rating only and functional operation of the device at these or AB Continuous ±500 μA/ (RAB = 10 kΩ/50 kΩ/100 kΩ)1 ±100 μA/±50 μA any other conditions above those indicated in the operational Operating Temperature Range −40°C to +105°C section of this specification is not implied. Exposure to absolute Maximum Junction Temperature (TJmax) 150°C maximum rating conditions for extended periods may affect Storage Temperature −65°C to +150°C device reliability. Lead Temperature (Soldering, 10 s – 30 s) 245°C Thermal Resistance2 θJA 230°C/W 1 Maximum terminal current is bounded by the maximum applied voltage across any two of the A, B, and W terminals at a given resistance, the maximum current handling of the switches, and the maximum power dissipation of the package. VDD = 5 V. 2 Package power dissipation = (TJmax – TA) / θJA.
