Datasheet AD7980-EP (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP |
| Pages / Page | 12 / 6 — AD7980-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. Table 5. … |
| Revision | A |
| File Format / Size | PDF / 340 Kb |
| Document Language | English |

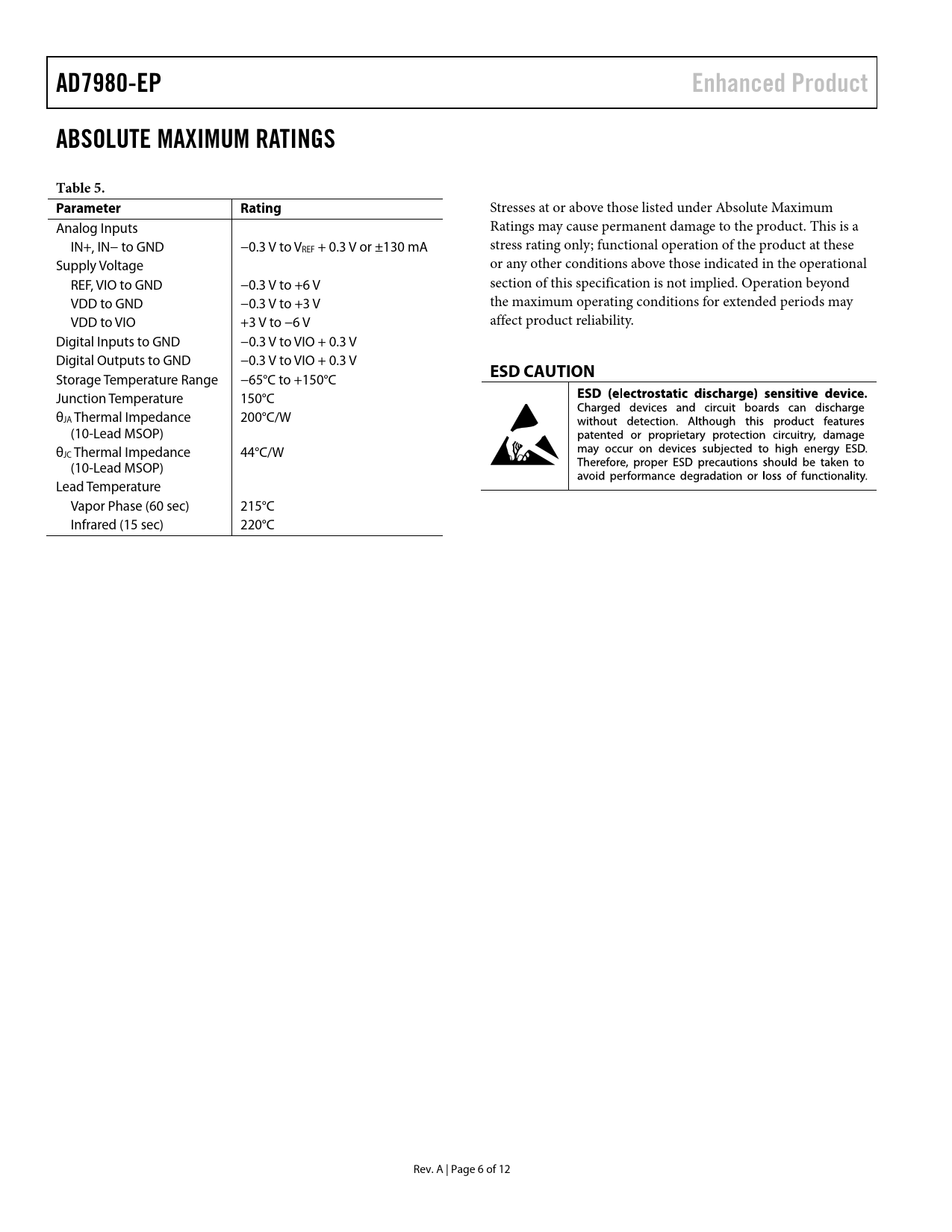

AD7980-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD7980-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS Table 5. Parameter Rating
Stresses at or above those listed under Absolute Maximum Analog Inputs Ratings may cause permanent damage to the product. This is a IN+, IN− to GND −0.3 V to VREF + 0.3 V or ±130 mA stress rating only; functional operation of the product at these Supply Voltage or any other conditions above those indicated in the operational REF, VIO to GND −0.3 V to +6 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +3 V the maximum operating conditions for extended periods may VDD to VIO +3 V to −6 V affect product reliability. Digital Inputs to GND −0.3 V to VIO + 0.3 V Digital Outputs to GND −0.3 V to VIO + 0.3 V
