| Manufacturer | National Semiconductor |
| Description | High Performance, High Fidelity Audio Operational Amplifier |
| Pages / Page | 28 / 10 — IMD vs Output Voltage. = 17V, V. = –17V, R. = 2.5V, V. = –2.5V, R. … |
| File Format / Size | PDF / 840 Kb |
| Document Language | English |
IMD vs Output Voltage. = 17V, V. = –17V, R. = 2.5V, V. = –2.5V, R. LME49710. = 15V, V. = –15V, R = 10k. = 12V, V. = –12V, R = 10k
Model Line for this Datasheet
Text Version of Document

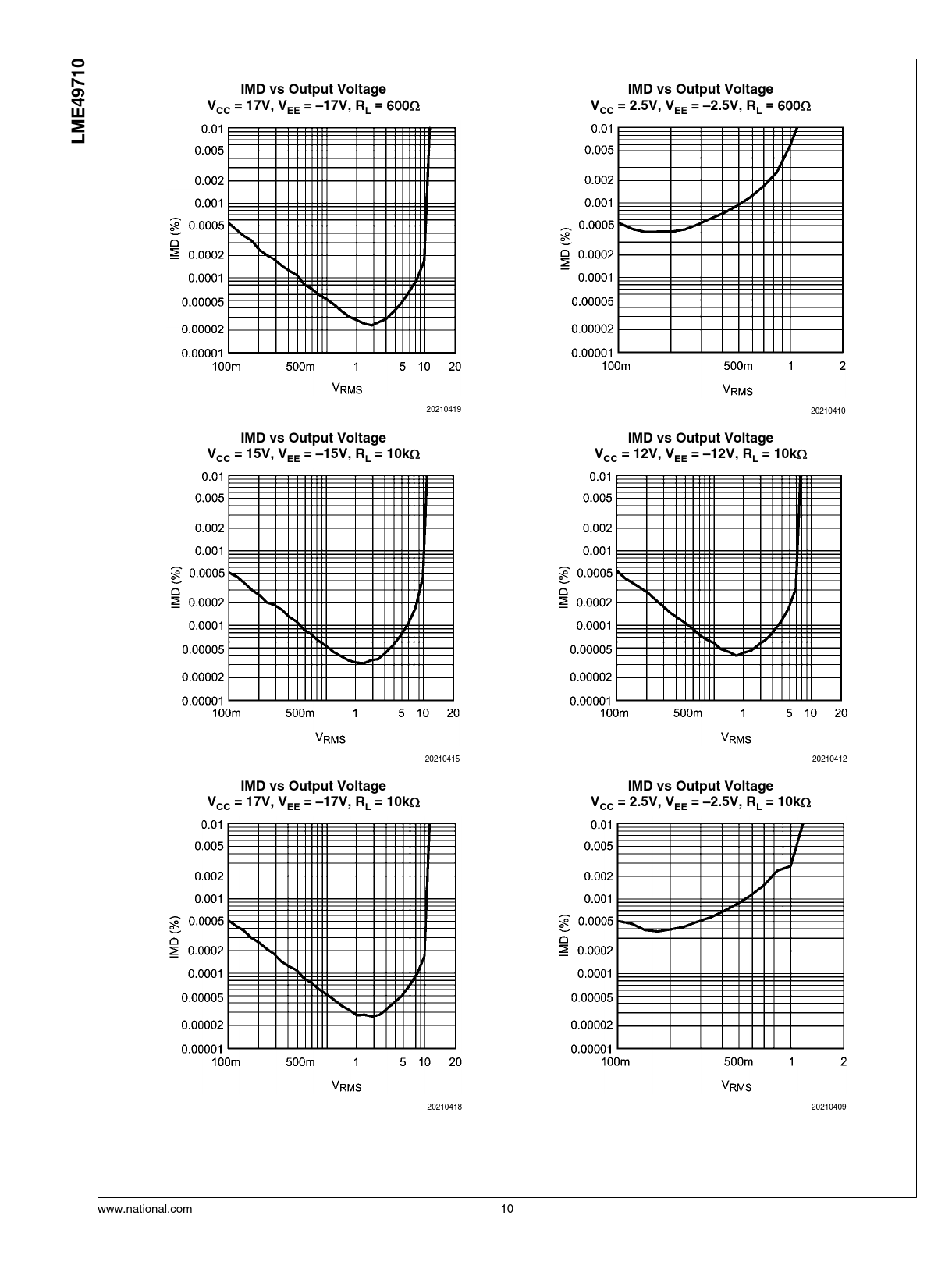

IMD vs Output Voltage IMD vs Output Voltage V = 17V, V = –17V, R
= 600Ω
V = 2.5V, V = –2.5V, R
= 600Ω
CC EE L CC EE L LME49710
20210419 20210410
IMD vs Output Voltage IMD vs Output Voltage V = 15V, V = –15V, R = 10k
Ω
V = 12V, V = –12V, R = 10k
Ω
CC EE L CC EE L
20210415 20210412
IMD vs Output Voltage IMD vs Output Voltage V = 17V, V = –17V, R = 10k
Ω
V = 2.5V, V = –2.5V, R = 10k
Ω
CC EE L CC EE L
