Datasheet DD311 (SiTI) - 2
| Manufacturer | SiTI |
| Description | High Constant Current Led Driver |
| Pages / Page | 15 / 2 — SILICON TOUCH TECHNOLOGY INC. DD311. HIGH CONSTANT CURRENT LED DRIVER. … |
| File Format / Size | PDF / 432 Kb |
| Document Language | English |
SILICON TOUCH TECHNOLOGY INC. DD311. HIGH CONSTANT CURRENT LED DRIVER. General Description. Features. Applications. Package Types
Model Line for this Datasheet
Text Version of Document
點晶科技股份有限公司
SILICON TOUCH TECHNOLOGY INC
. 新竹市科學園區展業一路 9 號 7 樓之 1 9-7F-1, Prosperity RoadⅠ, Hsin-Chu, Taiwan, R.O.C.
DD311
Tel：886-3-5645656 Fax：886-3-5645626

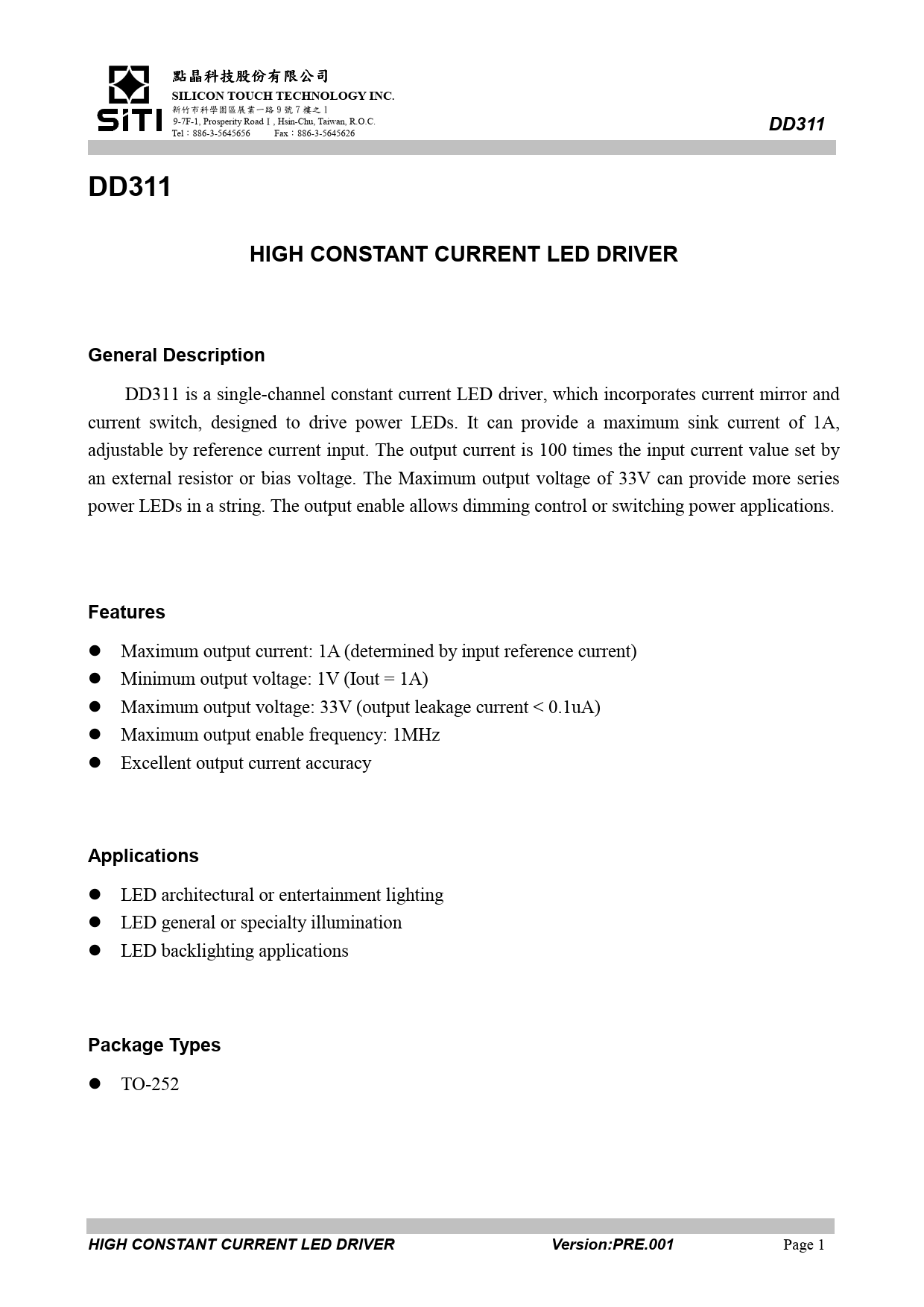

DD311 HIGH CONSTANT CURRENT LED DRIVER General Description
DD311 is a single-channel constant current LED driver, which incorporates current mirror and current switch, designed to drive power LEDs. It can provide a maximum sink current of 1A, adjustable by reference current input. The output current is 100 times the input current value set by an external resistor or bias voltage. The Maximum output voltage of 33V can provide more series power LEDs in a string. The output enable allows dimming control or switching power applications.
Features
Maximum output current: 1A (determined by input reference current) Minimum output voltage: 1V (Iout = 1A) Maximum output voltage: 33V (output leakage current < 0.1uA) Maximum output enable frequency: 1MHz Excellent output current accuracy
Applications
LED architectural or entertainment lighting LED general or specialty illumination LED backlighting applications
Package Types
TO-252
HIGH CONSTANT CURRENT LED DRIVER Version:PRE.001
Page 1
SILICON TOUCH TECHNOLOGY INC
. 新竹市科學園區展業一路 9 號 7 樓之 1 9-7F-1, Prosperity RoadⅠ, Hsin-Chu, Taiwan, R.O.C.
DD311
Tel：886-3-5645656 Fax：886-3-5645626
DD311 HIGH CONSTANT CURRENT LED DRIVER General Description
DD311 is a single-channel constant current LED driver, which incorporates current mirror and current switch, designed to drive power LEDs. It can provide a maximum sink current of 1A, adjustable by reference current input. The output current is 100 times the input current value set by an external resistor or bias voltage. The Maximum output voltage of 33V can provide more series power LEDs in a string. The output enable allows dimming control or switching power applications.
Features
Maximum output current: 1A (determined by input reference current) Minimum output voltage: 1V (Iout = 1A) Maximum output voltage: 33V (output leakage current < 0.1uA) Maximum output enable frequency: 1MHz Excellent output current accuracy
Applications
LED architectural or entertainment lighting LED general or specialty illumination LED backlighting applications
Package Types
TO-252
HIGH CONSTANT CURRENT LED DRIVER Version:PRE.001
Page 1
