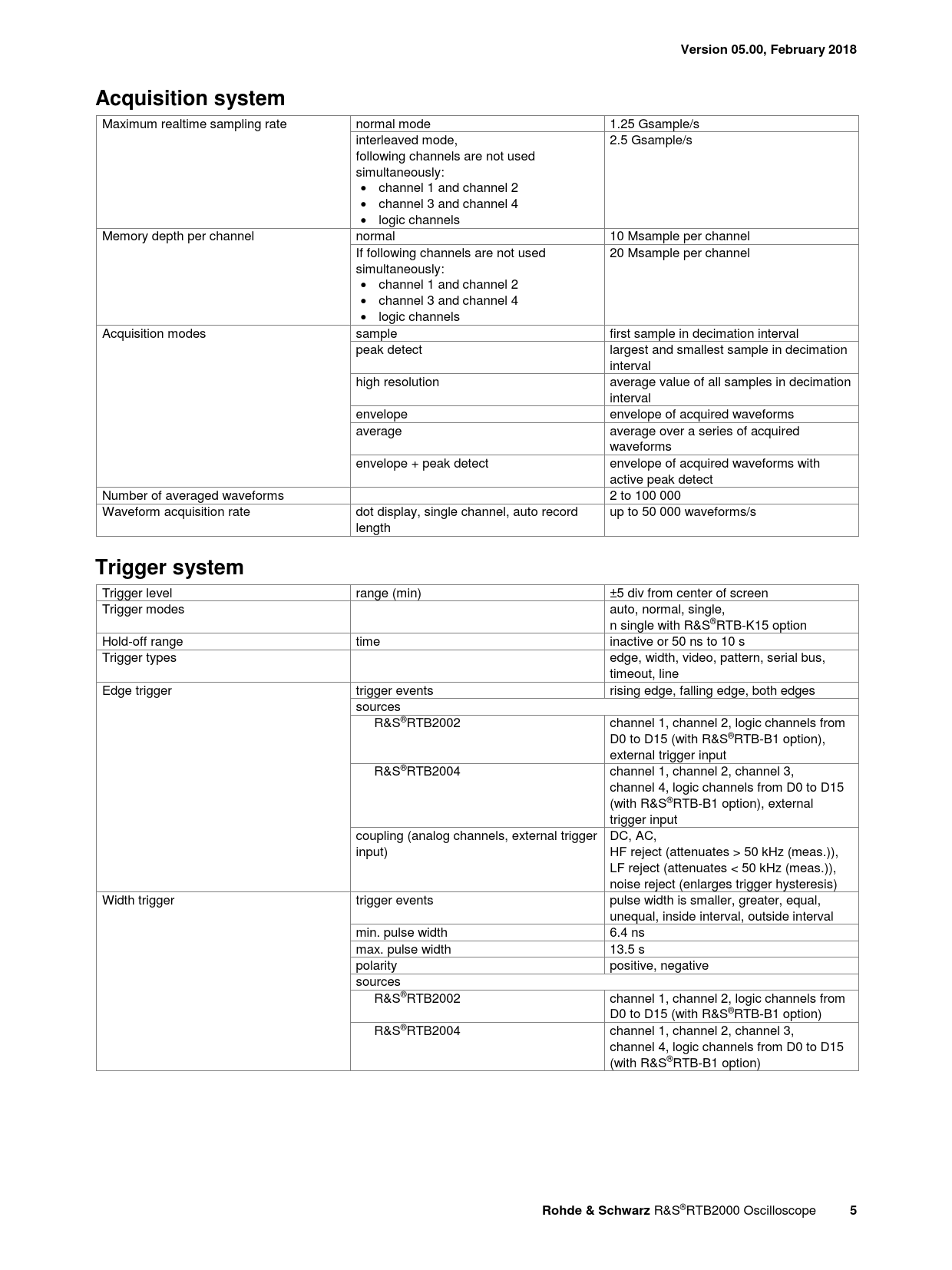

Version 05.00, February 2018 Acquisition system
Maximum realtime sampling rate normal mode 1.25 Gsample/s interleaved mode, 2.5 Gsample/s following channels are not used simultaneously: channel 1 and channel 2 channel 3 and channel 4 logic channels Memory depth per channel normal 10 Msample per channel If following channels are not used 20 Msample per channel simultaneously: channel 1 and channel 2 channel 3 and channel 4 logic channels Acquisition modes sample first sample in decimation interval peak detect largest and smallest sample in decimation interval high resolution average value of all samples in decimation interval envelope envelope of acquired waveforms average average over a series of acquired waveforms envelope + peak detect envelope of acquired waveforms with active peak detect Number of averaged waveforms 2 to 100 000 Waveform acquisition rate dot display, single channel, auto record up to 50 000 waveforms/s length
Trigger system
Trigger level range (min) ±5 div from center of screen Trigger modes auto, normal, single, n single with R&S®RTB-K15 option Hold-off range time inactive or 50 ns to 10 s Trigger types edge, width, video, pattern, serial bus, timeout, line Edge trigger trigger events rising edge, falling edge, both edges sources R&S®RTB2002 channel 1, channel 2, logic channels from D0 to D15 (with R&S®RTB-B1 option), external trigger input R&S®RTB2004 channel 1, channel 2, channel 3, channel 4, logic channels from D0 to D15 (with R&S®RTB-B1 option), external trigger input coupling (analog channels, external trigger DC, AC, input) HF reject (attenuates > 50 kHz (meas.)), LF reject (attenuates < 50 kHz (meas.)), noise reject (enlarges trigger hysteresis) Width trigger trigger events pulse width is smaller, greater, equal, unequal, inside interval, outside interval min. pulse width 6.4 ns max. pulse width 13.5 s polarity positive, negative sources R&S®RTB2002 channel 1, channel 2, logic channels from D0 to D15 (with R&S®RTB-B1 option) R&S®RTB2004 channel 1, channel 2, channel 3, channel 4, logic channels from D0 to D15 (with R&S®RTB-B1 option)
