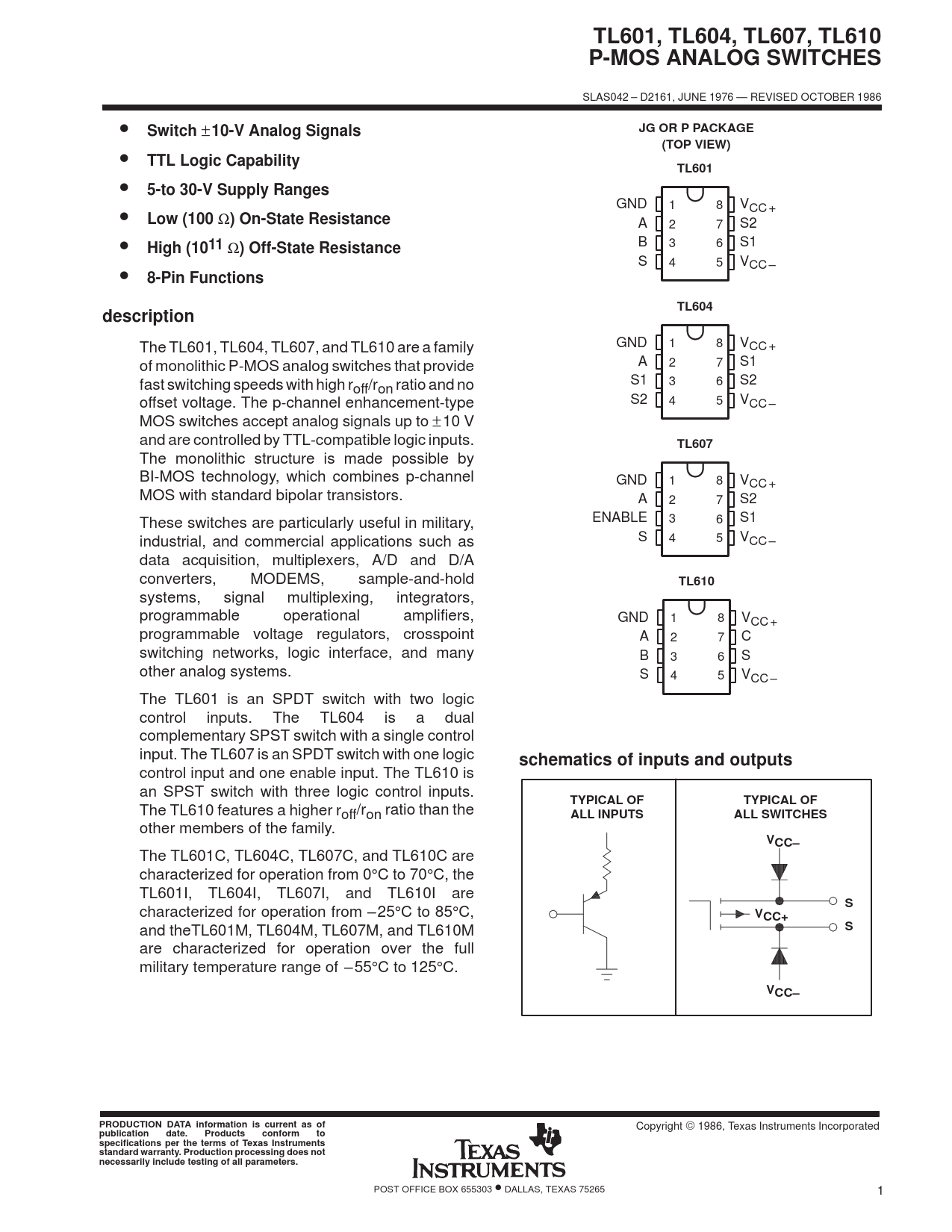

TL601, TL604, TL607, TL610 P-MOS ANALOG SWITCHES
SLAS042 – D2161, JUNE 1976 — REVISED OCTOBER 1986 •
Switch
±
10-V Analog Signals JG OR P PACKAGE
•
(TOP VIEW) TTL Logic Capability TL601
•
5-to 30-V Supply Ranges
• GND 1 8 VCC+
Low (100
Ω
) On-State Resistance
A 2 7 S2 •
High (1011
Ω
) Off-State Resistance
B 3 6 S1 • S 4 5 VCC–
8-Pin Functions TL604 description
The TL601, TL604, TL607, and TL610 are a family GND 1 8 VCC+ of monolithic P-MOS analog switches that provide A 2 7 S1 fast switching speeds with high r S1 3 6 S2 off/ron ratio and no offset voltage. The p-channel enhancement-type S2 4 5 VCC– MOS switches accept analog signals up to ± 10 V and are controlled by TTL-compatible logic inputs.
TL607
The monolithic structure is made possible by BI-MOS technology, which combines p-channel GND 1 8 VCC+ MOS with standard bipolar transistors. A 2 7 S2 These switches are particularly useful in military, ENABLE 3 6 S1 industrial, and commercial applications such as S 4 5 VCC– data acquisition, multiplexers, A/D and D/A converters, MODEMS, sample-and-hold
TL610
systems, signal multiplexing, integrators, programmable operational amplifiers, GND 1 8 VCC+ programmable voltage regulators, crosspoint A 2 7 C switching networks, logic interface, and many B 3 6 S other analog systems. S 4 5 VCC– The TL601 is an SPDT switch with two logic control inputs. The TL604 is a dual complementary SPST switch with a single control input. The TL607 is an SPDT switch with one logic
schematics of inputs and outputs
control input and one enable input. The TL610 is an SPST switch with three logic control inputs.
TYPICAL OF TYPICAL OF
The TL610 features a higher roff/ron ratio than the
ALL INPUTS ALL SWITCHES
other members of the family.
VCC–
The TL601C, TL604C, TL607C, and TL610C are characterized for operation from 0°C to 70°C, the TL601I, TL604I, TL607I, and TL610I are
S
characterized for operation from – 25°C to 85°C,
VCC+
and theTL601M, TL604M, TL607M, and TL610M
S
are characterized for operation over the full military temperature range of – 55°C to 125°C.
VCC– PRODUCTION DATA information is current as of
Copyright 1986, Texas Instruments Incorporated
publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
