MAX4073T/F/H. Low-Cost, SC70, Voltage-Output,. High-Side Current-Sense Amplifier. Table 1. Recommended Component Values
Model Line for this Datasheet
Text Version of Document

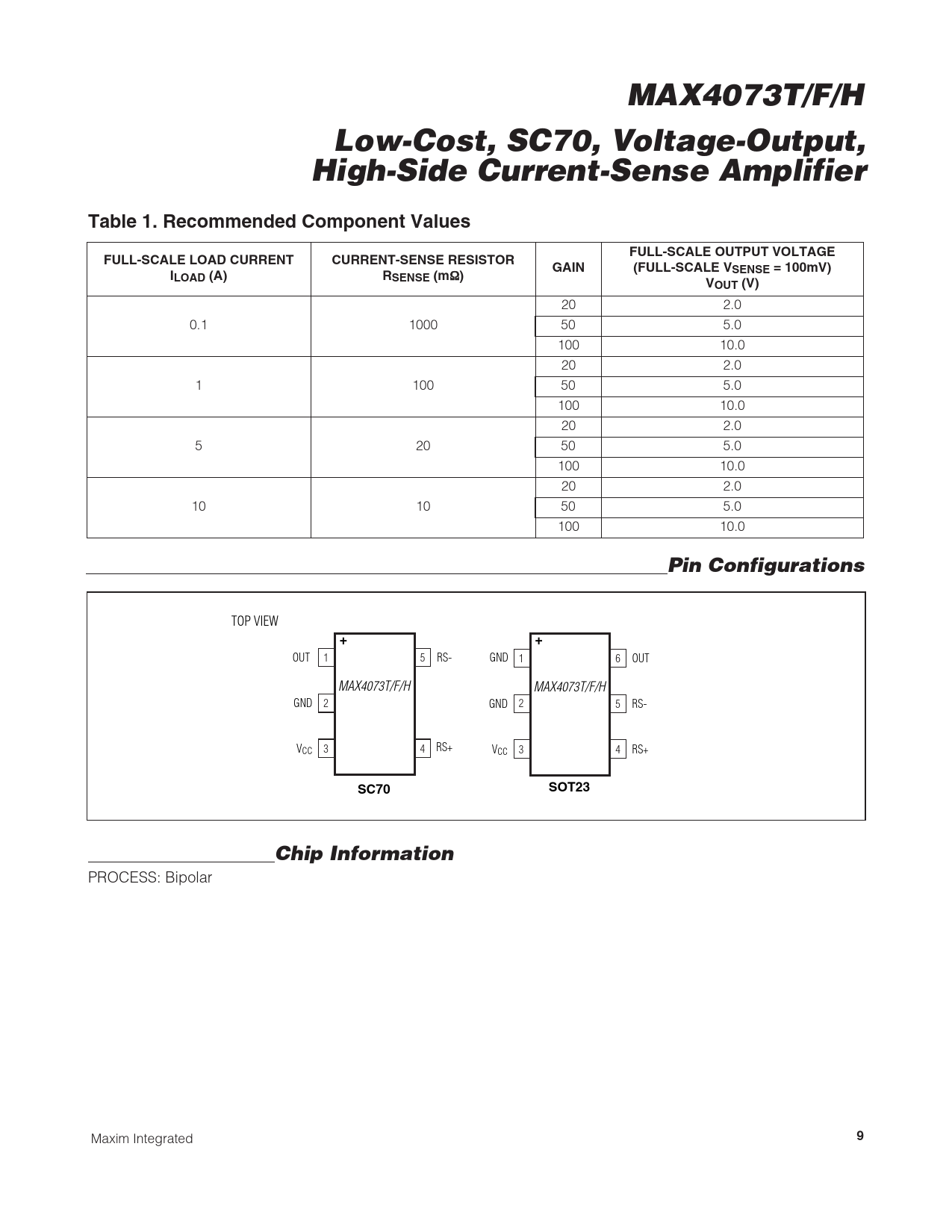

MAX4073T/F/H Low-Cost, SC70, Voltage-Output, High-Side Current-Sense Amplifier Table 1. Recommended Component Values FULL-SCALE OUTPUT VOLTAGE FULL-SCALE LOAD CURRENT CURRENT-SENSE RESISTOR GAIN (FULL-SCALE V ILOAD (A) R SENSE = 100mV) SENSE (m
Ω
) VOUT (V)
20 2.0 0.1 1000 50 5.0 100 10.0 20 2.0 1 100 50 5.0 100 10.0 20 2.0 5 20 50 5.0 100 10.0 20 2.0 10 10 50 5.0 100 10.0
Pin Configurations
TOP VIEW
+ +
OUT 1 5 RS- GND 1 6 OUT MAX4073T/F/H MAX4073T/F/H GND 2 GND 2 5 RS- VCC 3 4 RS+ VCC 3 4 RS+
SC70 SOT23 Chip Information
PROCESS: Bipolar
