Datasheet AD8221 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Precision Instrumentation Amplifier |
| Pages / Page | 25 / 9 — Table 3. Parameter. Rating. THERMAL CHARACTERISTICS. Table 4. Package. … |
| Revision | C |
| File Format / Size | PDF / 643 Kb |
| Document Language | English |

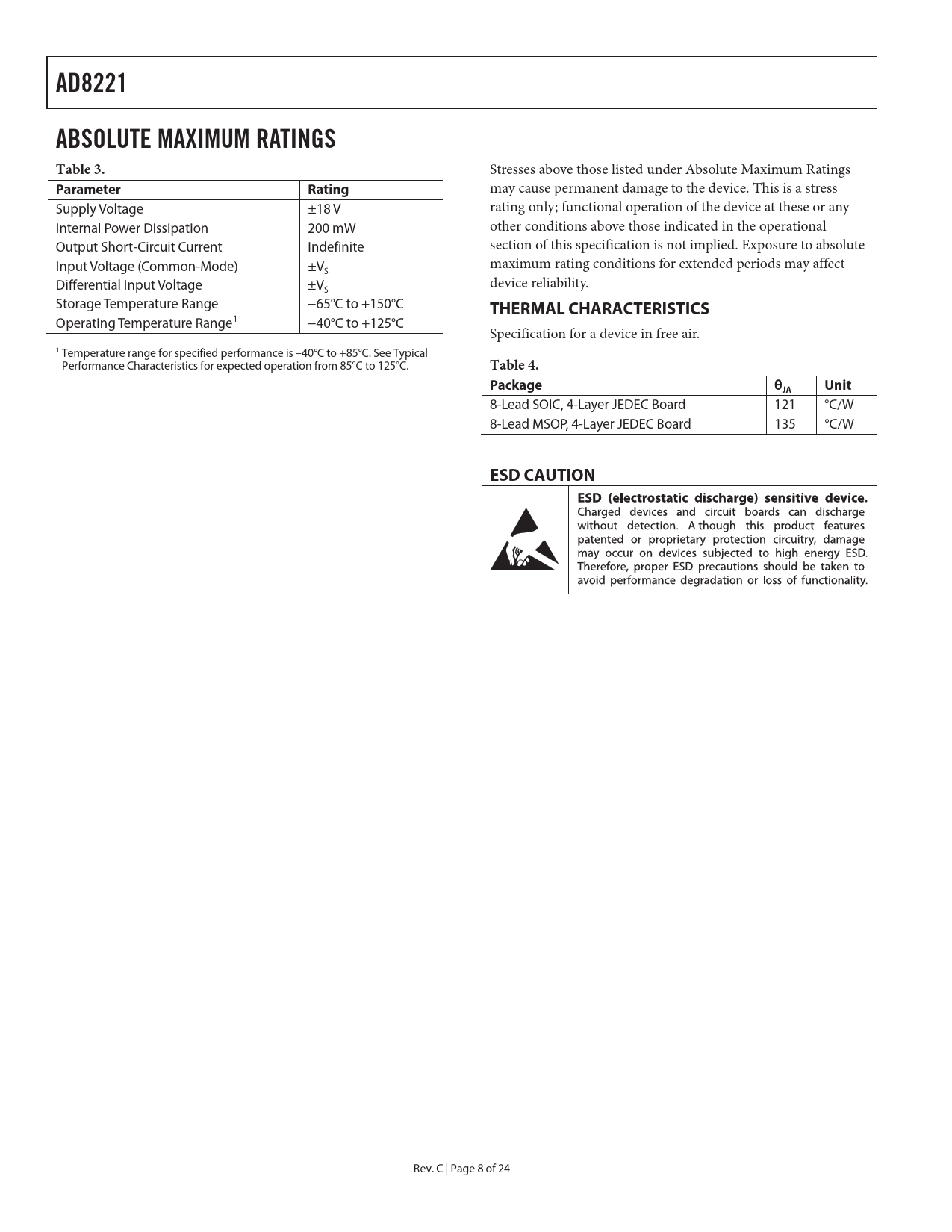

Table 3. Parameter. Rating. THERMAL CHARACTERISTICS. Table 4. Package. Unit. ESD CAUTION
Model Line for this Datasheet
AD8221
Text Version of Document
AD8221 ABSOLUTE MAXIMUM RATINGS
Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage ±18 V rating only; functional operation of the device at these or any Internal Power Dissipation 200 mW other conditions above those indicated in the operational Output Short-Circuit Current Indefinite section of this specification is not implied. Exposure to absolute Input Voltage (Common-Mode) ±V maximum rating conditions for extended periods may affect S Differential Input Voltage ±V device reliability. S Storage Temperature Range −65°C to +150°C
THERMAL CHARACTERISTICS
Operating Temperature Range1 −40°C to +125°C Specification for a device in free air. 1 Temperature range for specified performance is –40°C to +85°C. See Typical Performance Characteristics for expected operation from 85°C to 125°C.
Table 4. Package θ Unit JA
8-Lead SOIC, 4-Layer JEDEC Board 121 °C/W 8-Lead MSOP, 4-Layer JEDEC Board 135 °C/W
ESD CAUTION
Rev. C | Page 8 of 24
