| Manufacturer | Analog Devices |
| Description | 0.2 µV/°C Offset Drift, 105 MHz Low Power, Low Noise, Rail-to-Rail Amplifier |
| Pages / Page | 25 / 8 — ADA4805-1/ADA4805-2. Data Sheet. PIN CONFIGURATIONS AND FUNCTION … |
| Revision | B |
| File Format / Size | PDF / 784 Kb |
| Document Language | English |
ADA4805-1/ADA4805-2. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. ADA4805-1. VOUT 1. +VS. –VS 2. SHUTDOWN. +IN. –IN
Model Line for this Datasheet
Text Version of Document
ADA4805-1/ADA4805-2 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS ADA4805-1 ADA4805-1 VOUT 1 6 +VS VOUT 1 6 +VS –VS 2 5 SHUTDOWN –VS 2 5 SHUTDOWN
001 002
+IN 3 4 –IN +IN 3 4 –IN

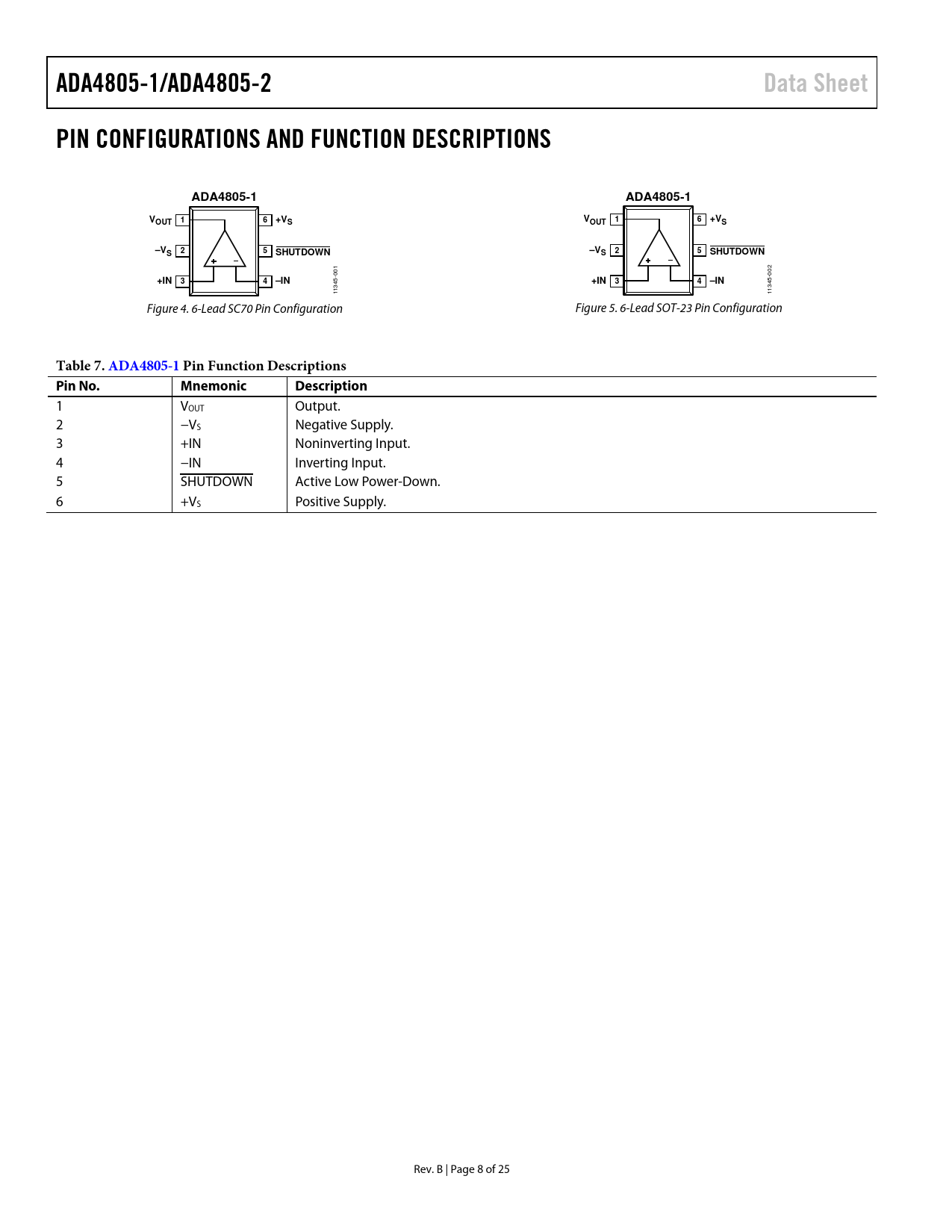

1345- 1345- 1 1 Figure 4. 6-Lead SC70 Pin Configuration Figure 5. 6-Lead SOT-23 Pin Configuration
Table 7. ADA4805-1 P in Function Descriptions Pin No. Mnemonic Description
1 VOUT Output. 2 −VS Negative Supply. 3 +IN Noninverting Input. 4 −IN Inverting Input. 5 SHUTDOWN Active Low Power-Down. 6 +VS Positive Supply. Rev. B | Page 8 of 25 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATIONS CIRCUIT TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V SUPPLY 5 V SUPPLY 3 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION AMPLIFIER DESCRIPTION INPUT PROTECTION SHUTDOWN OPERATION NOISE CONSIDERATIONS APPLICATIONS INFORMATION SLEW ENHANCEMENT EFFECT OF FEEDBACK RESISTOR ON FREQUENCY RESPONSE COMPENSATING PEAKING IN LARGE SIGNAL FREQUENCY RESPONSE DRIVING LOW POWER, HIGH RESOLUTION SUCCESSIVE APPROXIMATION REGISTER (SAR) ADCs DYNAMIC POWER SCALING SINGLE-ENDED TO DIFFERENTIAL CONVERSION LAYOUT CONSIDERATIONS Ground Plane Power Supply Bypassing OUTLINE DIMENSIONS ORDERING GUIDE
