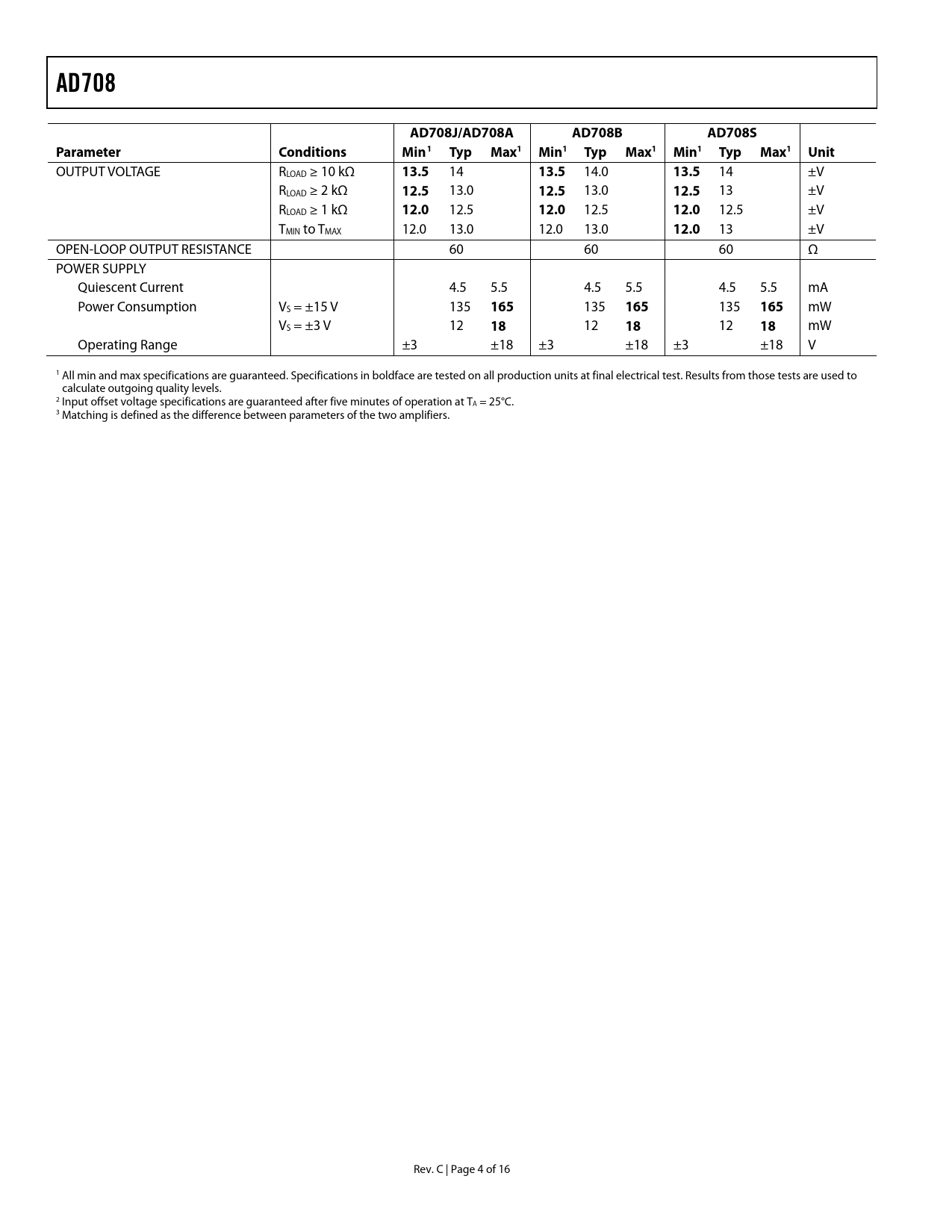

AD708 AD708J/AD708A AD708B AD708S Parameter Conditions Min1 Typ Max1 Min1 Typ Max1 Min1 Typ Max1 Unit
OUTPUT VOLTAGE RLOAD ≥ 10 kΩ
13.5
14
13.5
14.0
13.5
14 ±V RLOAD ≥ 2 kΩ
12.5
13.0
12.5
13.0
12.5
13 ±V RLOAD ≥ 1 kΩ
12.0
12.5
12.0
12.5
12.0
12.5 ±V TMIN to TMAX 12.0 13.0 12.0 13.0
12.0
13 ±V OPEN-LOOP OUTPUT RESISTANCE 60 60 60 Ω POWER SUPPLY Quiescent Current 4.5 5.5 4.5 5.5 4.5 5.5 mA Power Consumption VS = ±15 V 135
165
135
165
135
165
mW VS = ±3 V 12
18
12
18
12
18
mW Operating Range ±3 ±18 ±3 ±18 ±3 ±18 V 1 All min and max specifications are guaranteed. Specifications in boldface are tested on all production units at final electrical test. Results from those tests are used to calculate outgoing quality levels. 2 Input offset voltage specifications are guaranteed after five minutes of operation at TA = 25°C. 3 Matching is defined as the difference between parameters of the two amplifiers. Rev. C | Page 4 of 16 Document Outline FEATURES PIN CONFIGURATION GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CROSSTALK PERFORMANCE OPERATION WITH A GAIN OF −100 HIGH PRECISION PROGRAMMABLE GAIN AMPLIFIER BRIDGE SIGNAL CONDITIONER PRECISION ABSOLUTE VALUE CIRCUIT SELECTION OF PASSIVE COMPONENTS OUTLINE DIMENSIONS ORDERING GUIDE
