Datasheet AD712 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Precision, Low Cost, High Speed, BiFET Dual Op Amp |
| Pages / Page | 21 / 6 — Table 2. Parameter Rating. ESD CAUTION. 8-lead PDIP package:. θJA = … |
| Revision | I |
| File Format / Size | PDF / 408 Kb |
| Document Language | English |
Table 2. Parameter Rating. ESD CAUTION. 8-lead PDIP package:. θJA = 165°C/W
Text Version of Document

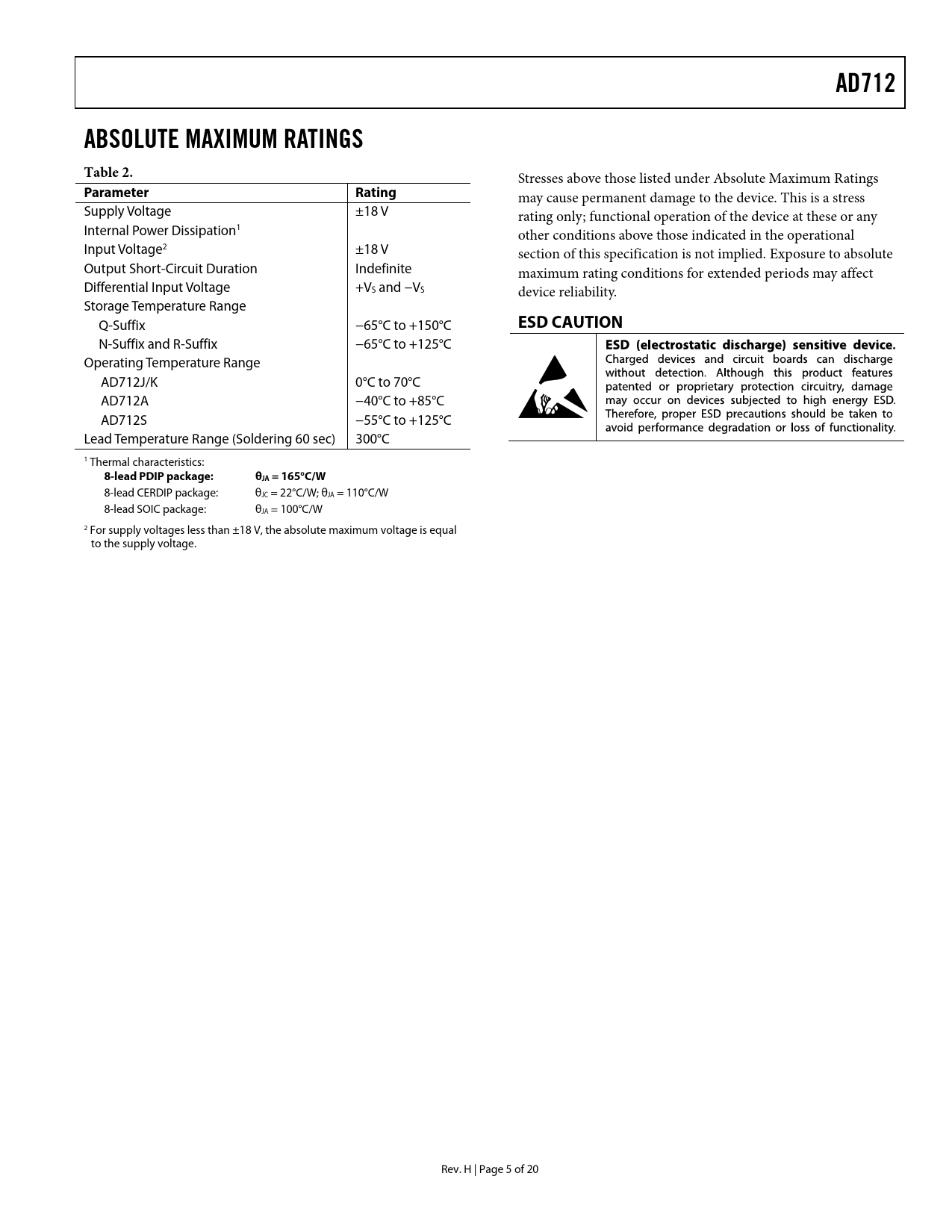

link to page 6 AD712 ABSOLUTE MAXIMUM RATINGS
Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage ±18 V rating only; functional operation of the device at these or any Internal Power Dissipation1 other conditions above those indicated in the operational Input Voltage2 ±18 V section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration Indefinite maximum rating conditions for extended periods may affect Differential Input Voltage +VS and −VS device reliability. Storage Temperature Range Q-Suffix −65°C to +150°C
ESD CAUTION
N-Suffix and R-Suffix −65°C to +125°C Operating Temperature Range AD712J/K 0°C to 70°C AD712A −40°C to +85°C AD712S −55°C to +125°C Lead Temperature Range (Soldering 60 sec) 300°C 1 Thermal characteristics:
8-lead PDIP package: θJA = 165°C/W
8-lead CERDIP package: θJC = 22°C/W; θJA = 110°C/W 8-lead SOIC package: θJA = 100°C/W 2 For supply voltages less than ±18 V, the absolute maximum voltage is equal to the supply voltage. Rev. H | Page 5 of 20 Document Outline FEATURES GENERAL DESCRIPTION CONNECTION DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS SETTLING TIME OPTIMIZING SETTLING TIME OP AMP SETTLING TIME—A MATHEMATICAL MODEL APPLICATIONS INFORMATION GUARDING DAC CONVERTER APPLICATIONS NOISE CHARACTERISTICS DRIVING THE ANALOG INPUT OF AN ADC DRIVING A LARGE CAPACITIVE LOAD FILTERS ACTIVE FILTER APPLICATIONS SECOND-ORDER LOW-PASS FILTER 9-POLE CHEBYCHEV FILTER OUTLINE DIMENSIONS ORDERING GUIDE
