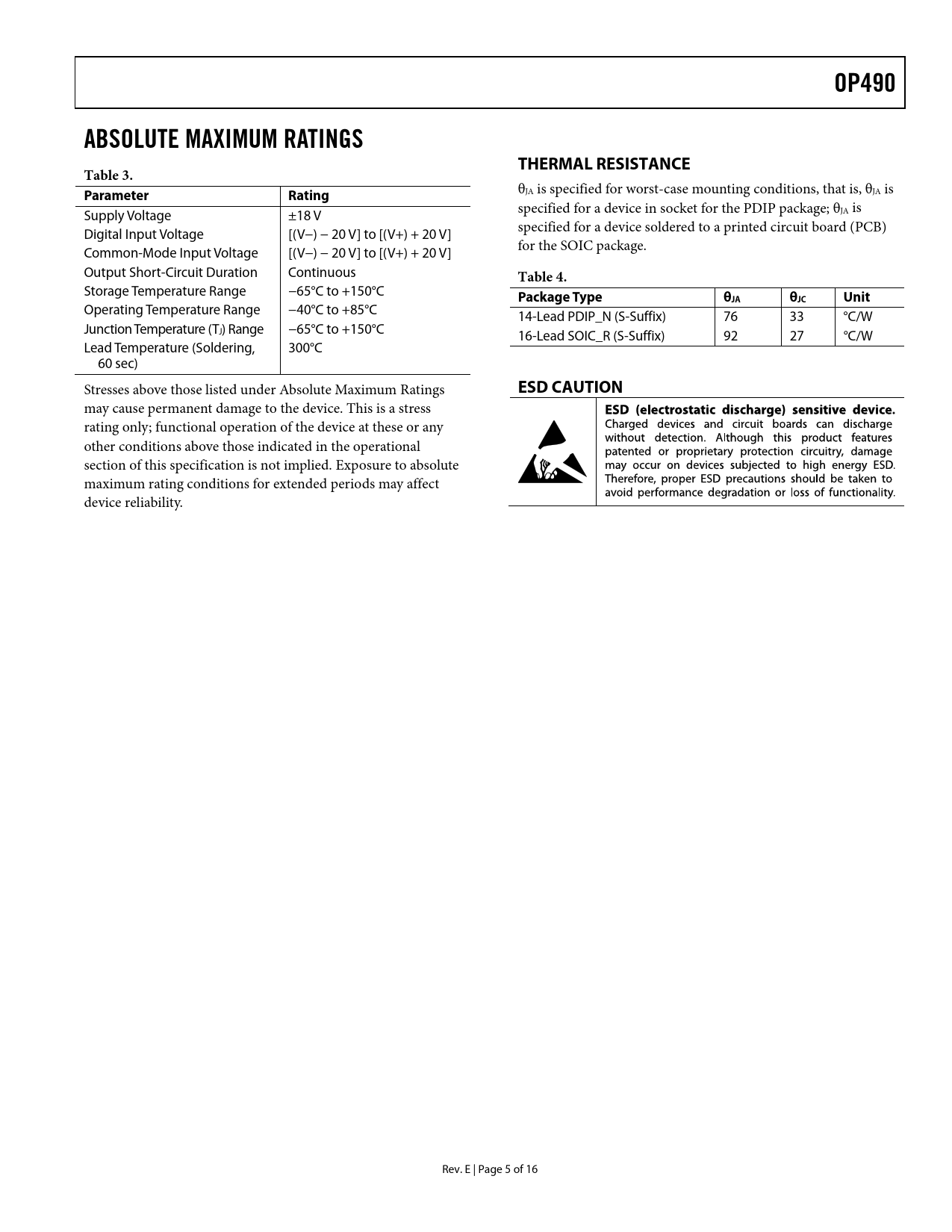

OP490. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter Rating. Table 4. Package Type. θJA. θJC Unit. ESD CAUTION
Text Version of Document
OP490 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3.
θ
Parameter Rating
JA is specified for worst-case mounting conditions, that is, θJA is specified for a device in socket for the PDIP package; θ Supply Voltage ±18 V JA is specified for a device soldered to a printed circuit board (PCB) Digital Input Voltage [(V−) − 20 V] to [(V+) + 20 V] for the SOIC package. Common-Mode Input Voltage [(V−) − 20 V] to [(V+) + 20 V] Output Short-Circuit Duration Continuous
Table 4.
Storage Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Operating Temperature Range −40°C to +85°C 14-Lead PDIP_N (S-Suffix) 76 33 °C/W Junction Temperature (TJ) Range −65°C to +150°C 16-Lead SOIC_R (S-Suffix) 92 27 °C/W Lead Temperature (Soldering, 300°C 60 sec) Stresses above those listed under Absolute Maximum Ratings
ESD CAUTION
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. E | Page 5 of 16 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION BATTERY-POWERED APPLICATIONS SINGLE-SUPPLY OUTPUT VOLTAGE RANGE INPUT VOLTAGE PROTECTION MICROPOWER VOLTAGE-CONTROLLED OSCILLATOR MICROPOWER SINGLE-SUPPLY QUAD VOLTAGE-OUTPUT 8-BIT DAC HIGH OUTPUT AMPLIFIER SINGLE-SUPPLY MICROPOWER QUAD PROGRAMMABLE GAIN AMPLIFIER OUTLINE DIMENSIONS ORDERING GUIDE
