Datasheet LTC6910-1, LTC6910-2, LTC6910-3 (Linear Technology) - 4
| Manufacturer | Linear Technology |
| Description | Digitally Controlled Programmable Gain Amplifiers in SOT-23 |
| Pages / Page | 26 / 4 — gain seTTings anD properTies. Table 3. LTC6910-3. NOMINAL. NOMINAL LINEAR … |
| Revision | B |
| File Format / Size | PDF / 344 Kb |
| Document Language | English |
gain seTTings anD properTies. Table 3. LTC6910-3. NOMINAL. NOMINAL LINEAR INPUT RANGE (V. VOLTAGE GAIN. P-P). INPUT. Dual 5V. Single 5V
Model Line for this Datasheet
- LTC6910-1CTS8#PBF LTC6910-1CTS8#TRMPBF LTC6910-1CTS8#TRPBF LTC6910-1HTS8#PBF LTC6910-1HTS8#TRMPBF LTC6910-1HTS8#TRPBF LTC6910-1ITS8#PBF LTC6910-1ITS8#TRMPBF LTC6910-1ITS8#TRPBF
Text Version of Document
LTC6910-1/ LTC6910-2/LTC6910-3

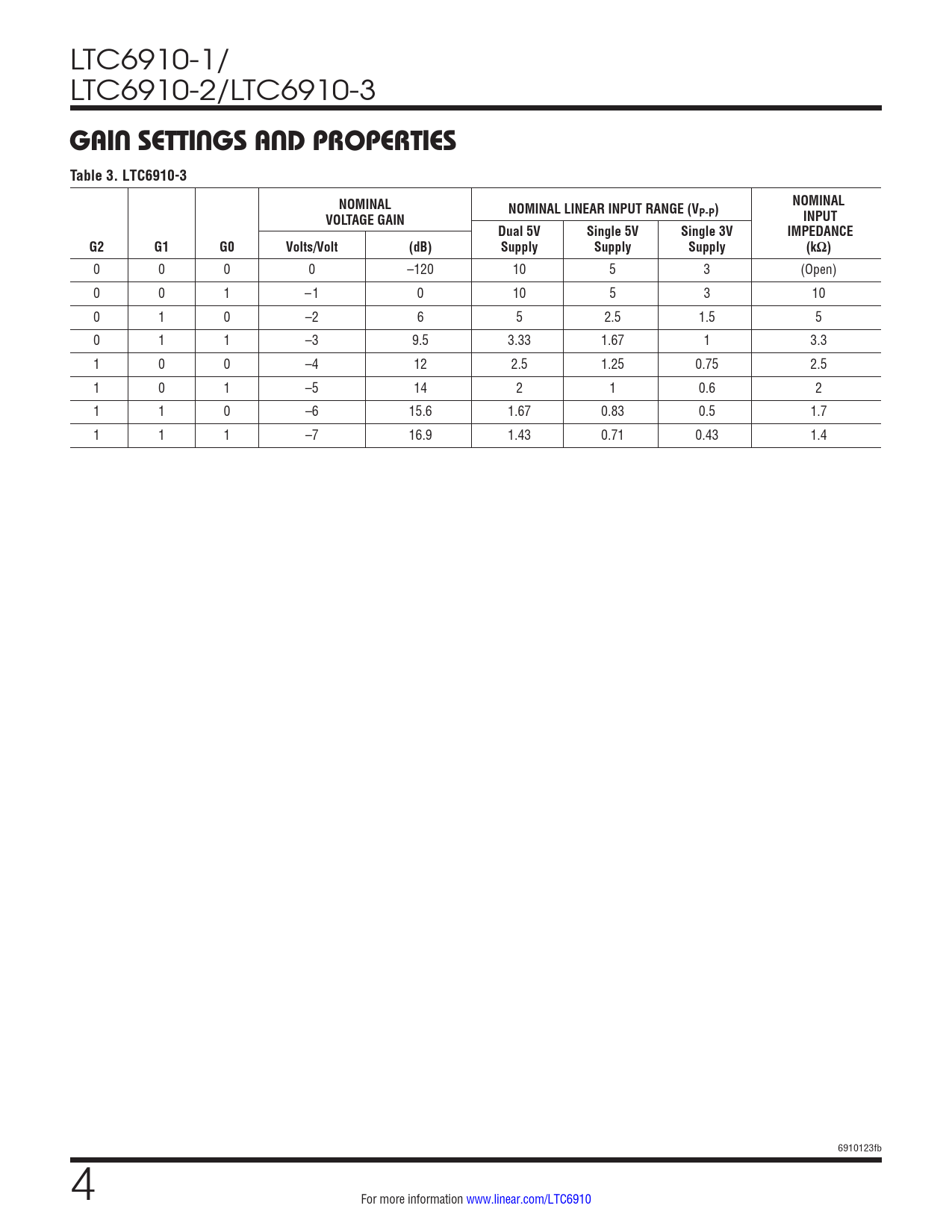

gain seTTings anD properTies Table 3. LTC6910-3 NOMINAL NOMINAL LINEAR INPUT RANGE (V VOLTAGE GAIN P-P) NOMINAL INPUT Dual 5V Single 5V Single 3V IMPEDANCE G2 G1 G0 Volts/Volt (dB) Supply Supply Supply (kΩ)
0 0 0 0 –120 10 5 3 (Open) 0 0 1 –1 0 10 5 3 10 0 1 0 –2 6 5 2.5 1.5 5 0 1 1 –3 9.5 3.33 1.67 1 3.3 1 0 0 –4 12 2.5 1.25 0.75 2.5 1 0 1 –5 14 2 1 0.6 2 1 1 0 –6 15.6 1.67 0.83 0.5 1.7 1 1 1 –7 16.9 1.43 0.71 0.43 1.4 6910123fb 4 For more information www.linear.com/LTC6910 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Gain Settings and Properties Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Typical Application Related Parts
