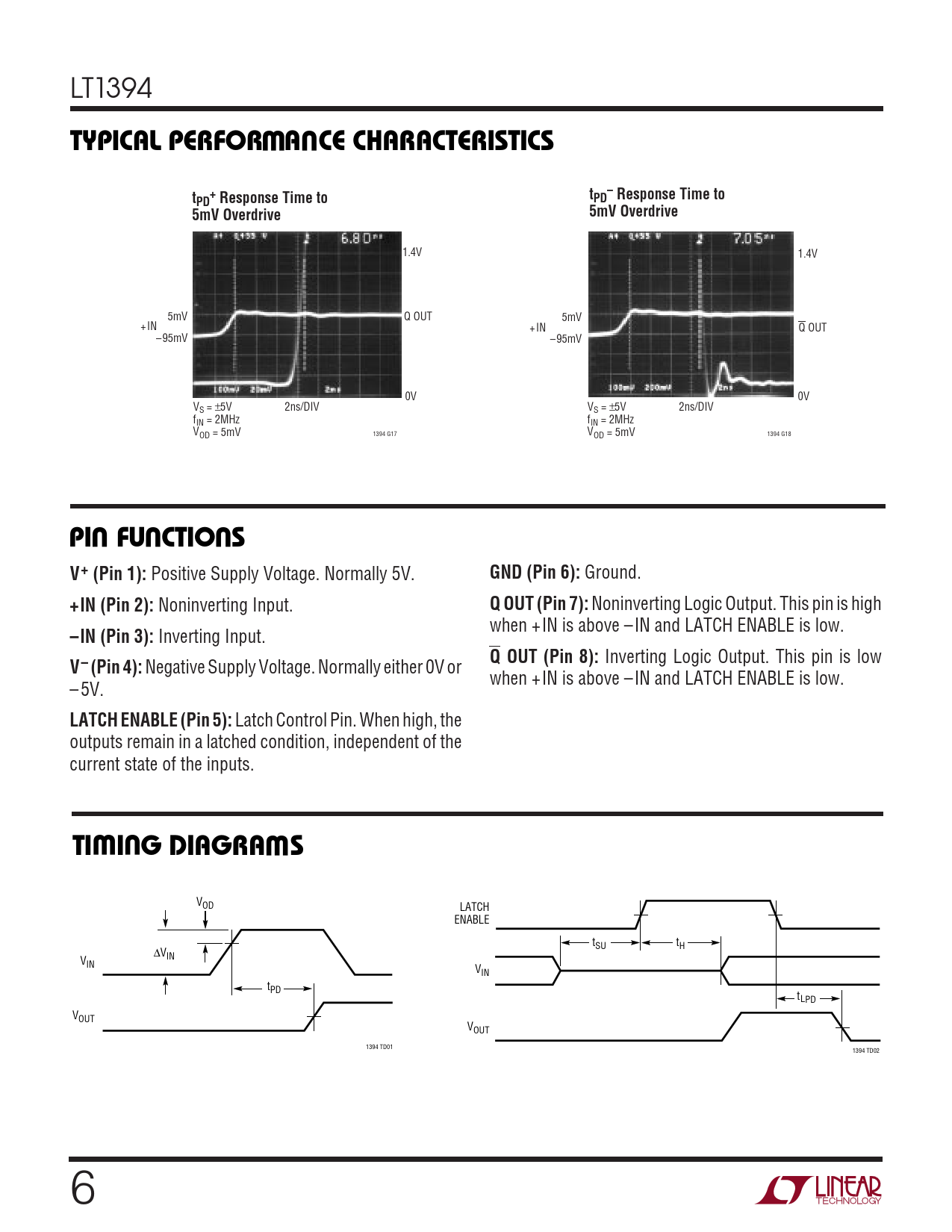

LT1394
W U TYPICAL PERFORMANCE CHARACTERISTICS – t + t Response Time to PD Response Time to PD 5mV Overdrive 5mV Overdrive
1.4V 1.4V 5mV Q OUT 5mV + IN + IN Q OUT –95mV –95mV 0V 0V VS = ±5V 2ns/DIV VS = ±5V 2ns/DIV fIN = 2MHz fIN = 2MHz VOD = 5mV 1394 G17 VOD = 5mV 1394 G18
U U U PIN FUNCTIONS V+ (Pin 1):
Positive Supply Voltage. Normally 5V.
GND (Pin 6):
Ground.
+IN (Pin 2):
Noninverting Input.
Q OUT (Pin 7):
Noninverting Logic Output. This pin is high when +IN is above –IN and LATCH ENABLE is low.
–IN (Pin 3):
Inverting Input.
Q OUT (Pin 8):
Inverting Logic Output. This pin is low
V– (Pin 4):
Negative Supply Voltage. Normally either 0V or when +IN is above –IN and LATCH ENABLE is low. – 5V.
LATCH ENABLE (Pin 5):
Latch Control Pin. When high, the outputs remain in a latched condition, independent of the current state of the inputs.
W U W TI I G DIAGRA S
VOD LATCH ENABLE t t ∆ SU H V V IN IN VIN tPD tLPD VOUT VOUT 1394 TD01 1394 TD02 6
