Datasheet LT1719 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 4.5ns Single/Dual Supply 3V/5V Comparator with Rail-to-Rail Output |
| Pages / Page | 22 / 7 — PIN FUNCTIONS. LT1719S8. LT1719S6. VCC (Pin 1):. –IN (Pin 1):. + IN (Pin … |
| File Format / Size | PDF / 220 Kb |
| Document Language | English |

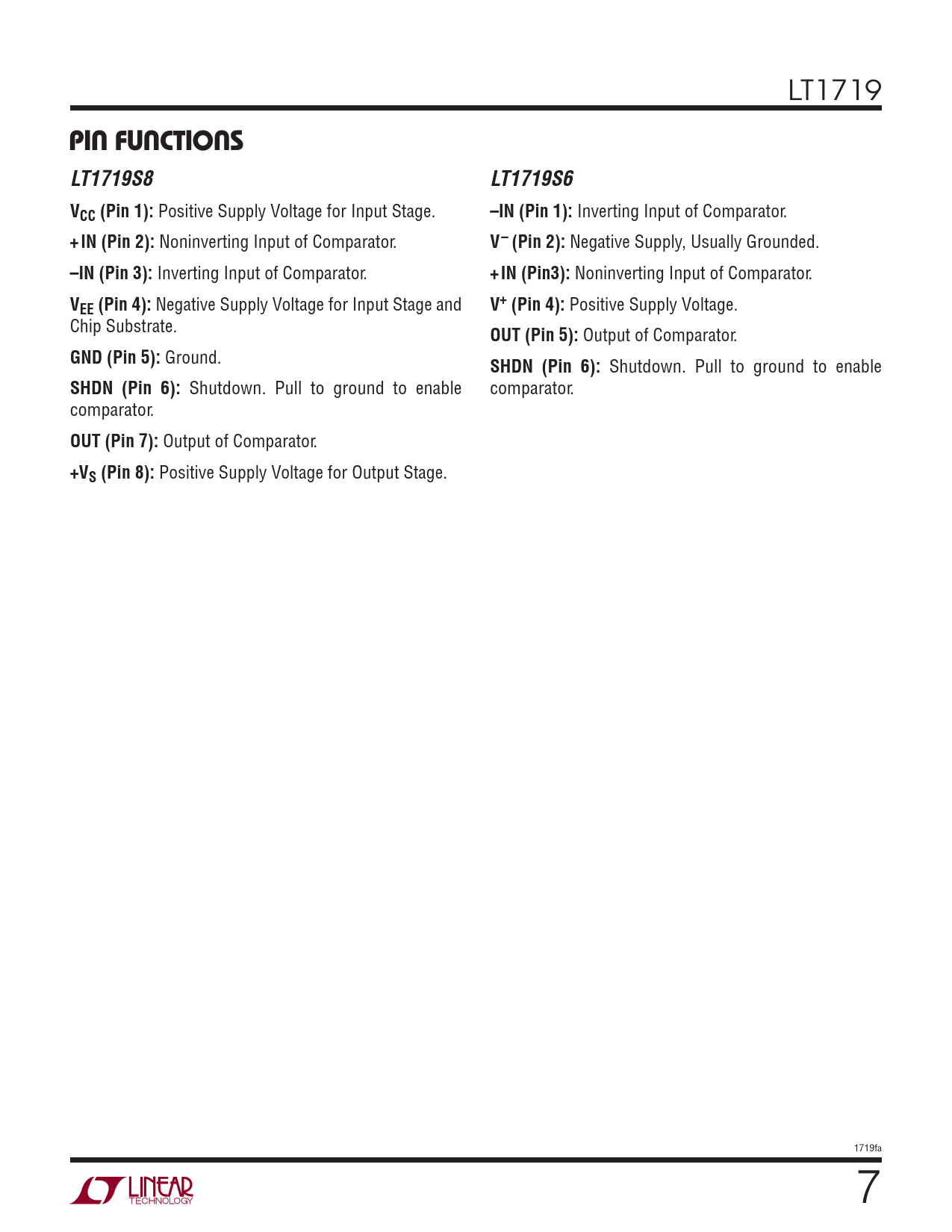

PIN FUNCTIONS. LT1719S8. LT1719S6. VCC (Pin 1):. –IN (Pin 1):. + IN (Pin 2):. V– (Pin 2):. –IN (Pin 3):. + IN (Pin3):. VEE (Pin 4):
Model Line for this Datasheet
Text Version of Document
LT1719
PIN FUNCTIONS LT1719S8 LT1719S6 VCC (Pin 1):
Positive Supply Voltage for Input Stage.
–IN (Pin 1):
Inverting Input of Comparator.
+ IN (Pin 2):
Noninverting Input of Comparator.
V– (Pin 2):
Negative Supply, Usually Grounded.
–IN (Pin 3):
Inverting Input of Comparator.
+ IN (Pin3):
Noninverting Input of Comparator.
VEE (Pin 4):
Negative Supply Voltage for Input Stage and
V+ (Pin 4):
Positive Supply Voltage. Chip Substrate.
OUT (Pin 5):
Output of Comparator.
GND (Pin 5):
Ground.
SHDN (Pin 6):
Shutdown. Pull to ground to enable
SHDN (Pin 6):
Shutdown. Pull to ground to enable comparator. comparator.
OUT (Pin 7):
Output of Comparator.
+VS (Pin 8):
Positive Supply Voltage for Output Stage. 1719fa 7
PIN FUNCTIONS LT1719S8 LT1719S6 VCC (Pin 1):
Positive Supply Voltage for Input Stage.
–IN (Pin 1):
Inverting Input of Comparator.
+ IN (Pin 2):
Noninverting Input of Comparator.
V– (Pin 2):
Negative Supply, Usually Grounded.
–IN (Pin 3):
Inverting Input of Comparator.
+ IN (Pin3):
Noninverting Input of Comparator.
VEE (Pin 4):
Negative Supply Voltage for Input Stage and
V+ (Pin 4):
Positive Supply Voltage. Chip Substrate.
OUT (Pin 5):
Output of Comparator.
GND (Pin 5):
Ground.
SHDN (Pin 6):
Shutdown. Pull to ground to enable
SHDN (Pin 6):
Shutdown. Pull to ground to enable comparator. comparator.
OUT (Pin 7):
Output of Comparator.
+VS (Pin 8):
Positive Supply Voltage for Output Stage. 1719fa 7
