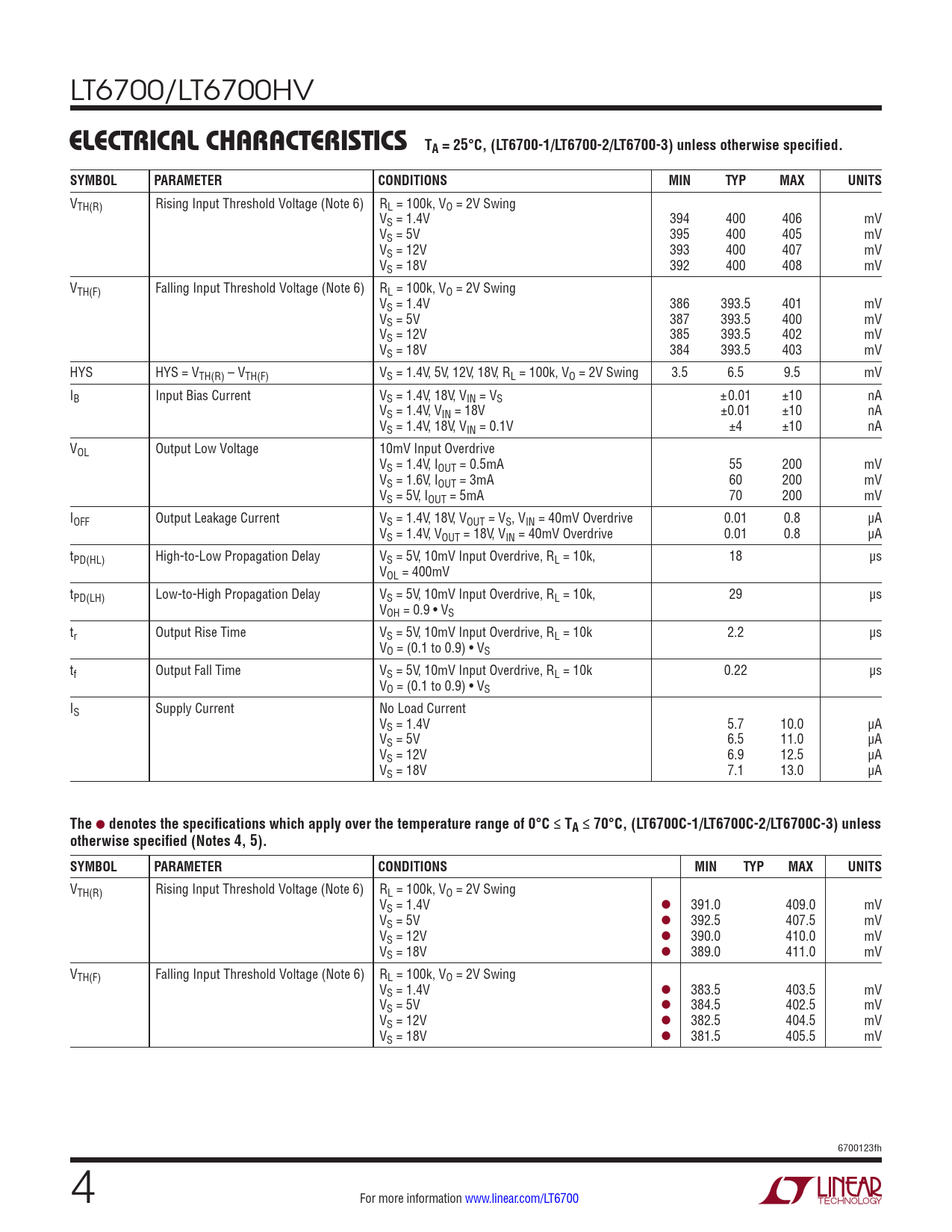

ELECTRICAL CHARACTERISTICS. TA = 25°C, (LT6700-1/LT6700-2/LT6700-3) unless otherwise specified. SYMBOL. PARAMETER. CONDITIONS
