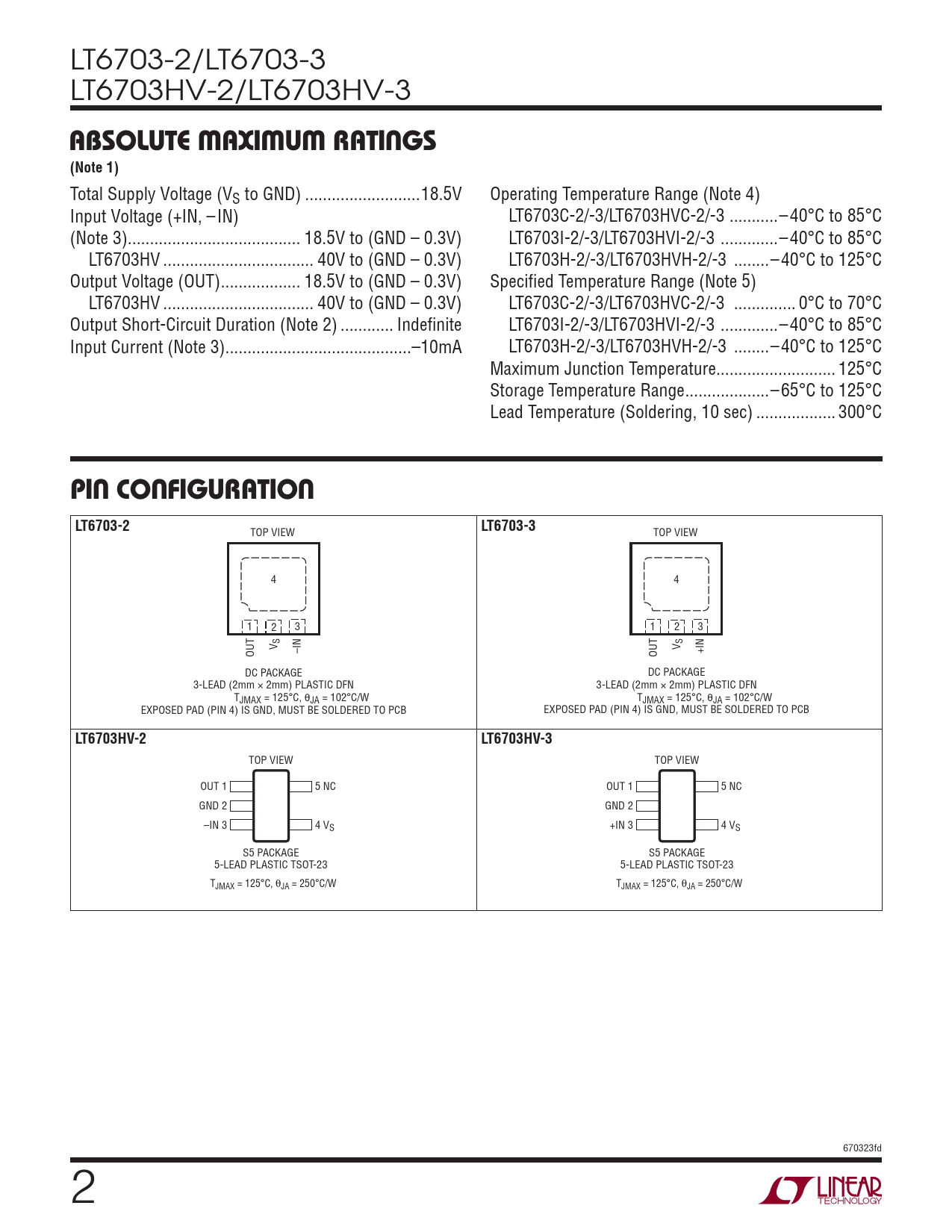

LT6703-2/LT6703-3 LT6703HV-2/LT6703HV-3
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (VS to GND) ..18.5V Operating Temperature Range (Note 4) Input Voltage (+IN, –IN) LT6703C-2/-3/LT6703HVC-2/-3 ...–40°C to 85°C (Note 3) ... 18.5V to (GND – 0.3V) LT6703I-2/-3/LT6703HVI-2/-3 ...–40°C to 85°C LT6703HV .. 40V to (GND – 0.3V) LT6703H-2/-3/LT6703HVH-2/-3 ..–40°C to 125°C Output Voltage (OUT) .. 18.5V to (GND – 0.3V) Specifi ed Temperature Range (Note 5) LT6703HV .. 40V to (GND – 0.3V) LT6703C-2/-3/LT6703HVC-2/-3 .. 0°C to 70°C Output Short-Circuit Duration (Note 2) .. Indefi nite LT6703I-2/-3/LT6703HVI-2/-3 ...–40°C to 85°C Input Current (Note 3) ..–10mA LT6703H-2/-3/LT6703HVH-2/-3 ..–40°C to 125°C Maximum Junction Temperature... 125°C Storage Temperature Range ...–65°C to 125°C Lead Temperature (Soldering, 10 sec) .. 300°C
PIN CONFIGURATION LT6703-2 LT6703-3
TOP VIEW TOP VIEW 4 4 1 2 3 1 2 3 S S V V OUT –IN OUT +IN DC PACKAGE DC PACKAGE 3-LEAD (2mm × 2mm) PLASTIC DFN 3-LEAD (2mm × 2mm) PLASTIC DFN TJMAX = 125°C, θJA = 102°C/W TJMAX = 125°C, θJA = 102°C/W EXPOSED PAD (PIN 4) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 4) IS GND, MUST BE SOLDERED TO PCB
LT6703HV-2 LT6703HV-3
TOP VIEW TOP VIEW OUT 1 5 NC OUT 1 5 NC GND 2 GND 2 –IN 3 4 VS +IN 3 4 VS S5 PACKAGE S5 PACKAGE 5-LEAD PLASTIC TSOT-23 5-LEAD PLASTIC TSOT-23 TJMAX = 125°C, θJA = 250°C/W TJMAX = 125°C, θJA = 250°C/W 670323fd 2
