Datasheet ADA4077-1, ADA4077-2, ADA4077-4 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 4 MHz, 7 nV/√Hz, Low Offset and Drift, High Precision Single Amplifier |
| Pages / Page | 27 / 9 — Data Sheet. ADA4077-1/ADA4077-2/ADA4077-4. OUT A 1. –IN A. ADA4077-2. OUT … |
| Revision | E |
| File Format / Size | PDF / 987 Kb |
| Document Language | English |
Data Sheet. ADA4077-1/ADA4077-2/ADA4077-4. OUT A 1. –IN A. ADA4077-2. OUT B. –IN A 2. ADA4077-2 7 OUT B. TOP VIEW. +IN A 3. –IN B
Model Line for this Datasheet
- ADA4077-1ARMZ ADA4077-1ARMZ-R7 ADA4077-1ARMZ-RL ADA4077-1ARZ ADA4077-1ARZ-R7 ADA4077-1ARZ-RL ADA4077-1BRZ ADA4077-1BRZ-R7 ADA4077-1BRZ-RL
Text Version of Document

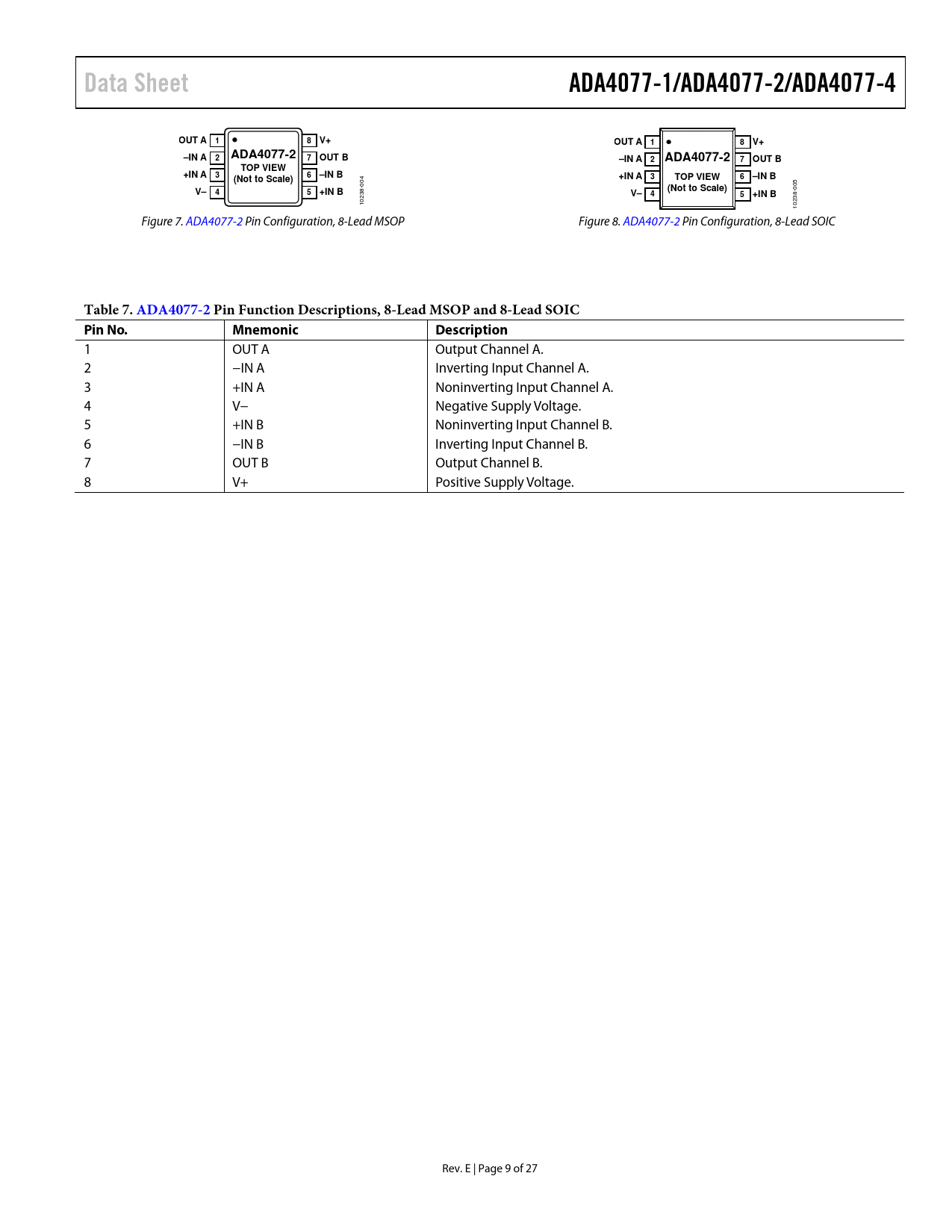

Data Sheet ADA4077-1/ADA4077-2/ADA4077-4 OUT A 1 8 V+ OUT A 1 8 V+ –IN A ADA4077-2 2 7 OUT B –IN A 2 ADA4077-2 7 OUT B TOP VIEW +IN A 3 6 –IN B (Not to Scale) +IN A 3 TOP VIEW 6 –IN B
004 005
V– (Not to Scale) 4 5 +IN B V– 4 5 +IN B
10238- 10238- Figure 7. ADA4077-2 Pin Configuration, 8-Lead MSOP Figure 8. ADA4077-2 Pin Configuration, 8-Lead SOIC
Table 7. ADA4077-2 P in Function Descriptions, 8-Lead MSOP and 8-Lead SOIC Pin No. Mnemonic Description
1 OUT A Output Channel A. 2 −IN A Inverting Input Channel A. 3 +IN A Noninverting Input Channel A. 4 V− Negative Supply Voltage. 5 +IN B Noninverting Input Channel B. 6 −IN B Inverting Input Channel B. 7 OUT B Output Channel B. 8 V+ Positive Supply Voltage. Rev. E | Page 9 of 27 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUIT THEORY OF OPERATION APPLICATIONS INFORMATION OUTPUT PHASE REVERSAL LOW POWER LINEARIZED RTD PROPER BOARD LAYOUT LONG-TERM DRIFT TEMPERATURE HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
