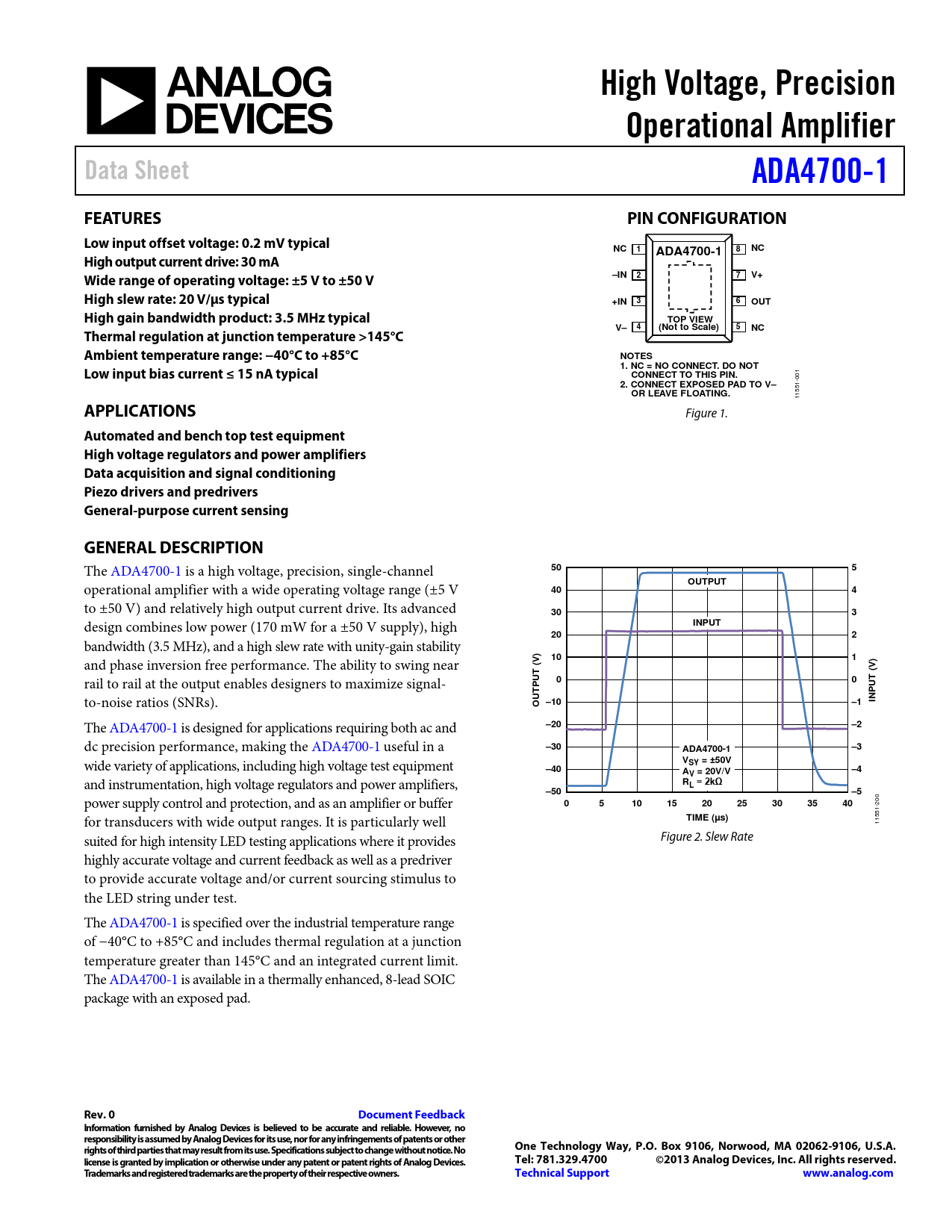

High Voltage, Precision Operational Amplifier Data Sheet ADA4700-1 FEATURES PIN CONFIGURATION Low input offset voltage: 0.2 mV typical NC 1 8 NC ADA4700-1 High output current drive: 30 mA Wide range of operating voltage: ±5 V to ±50 V –IN 2 7 V+ High slew rate: 20 V/µs typical +IN 3 6 OUT High gain bandwidth product: 3.5 MHz typical TOP VIEW V– 4 (Not to Scale) 5 NC Thermal regulation at junction temperature >145°C Ambient temperature range: −40°C to +85°C NOTES Low input bias current ≤ 15 nA typical 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
001
2. CONNECT EXPOSED PAD TO V– OR LEAVE FLOATING.
1551- 1
APPLICATIONS
Figure 1.
Automated and bench top test equipment High voltage regulators and power amplifiers Data acquisition and signal conditioning Piezo drivers and predrivers General-purpose current sensing GENERAL DESCRIPTION
The ADA4700-1 is a high voltage, precision, single-channel
50 5
operational amplifier with a wide operating voltage range (±5 V
OUTPUT 40 4
to ±50 V) and relatively high output current drive. Its advanced
30 3
design combines low power (170 mW for a ±50 V supply), high
INPUT 20 2
bandwidth (3.5 MHz), and a high slew rate with unity-gain stability and phase inversion free performance. The ability to swing near
10 1 (V) T (V)
rail to rail at the output enables designers to maximize signal-
0 0 T PU T PU
to-noise ratios (SNRs).
U –10 –1 IN O
The ADA4700-1 is designed for applications requiring both ac and
–20 –2
dc precision performance, making the ADA4700-1 useful in a
–30 –3 ADA4700-1
wide variety of applications, including high voltage test equipment
VSY = ±50V –40 –4 AV = 20V/V
and instrumentation, high voltage regulators and power amplifiers,
RL = 2kΩ –50 –5
power supply control and protection, and as an amplifier or buffer
0 5 10 15 20 25 30 35 40
200 for transducers with wide output ranges. It is particularly well
TIME (µs)
11551- suited for high intensity LED testing applications where it provides Figure 2. Slew Rate highly accurate voltage and current feedback as wel as a predriver to provide accurate voltage and/or current sourcing stimulus to the LED string under test. The ADA4700-1 is specified over the industrial temperature range of −40°C to +85°C and includes thermal regulation at a junction temperature greater than 145°C and an integrated current limit. The ADA4700-1 is available in a thermally enhanced, 8-lead SOIC package with an exposed pad.
