| Description | 100 V, Precision Operational Amplifier |
| Pages / Page | 29 / 10 — Data Sheet. ADA4700-1. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| File Format / Size | PDF / 655 Kb |
| Document Language | English |

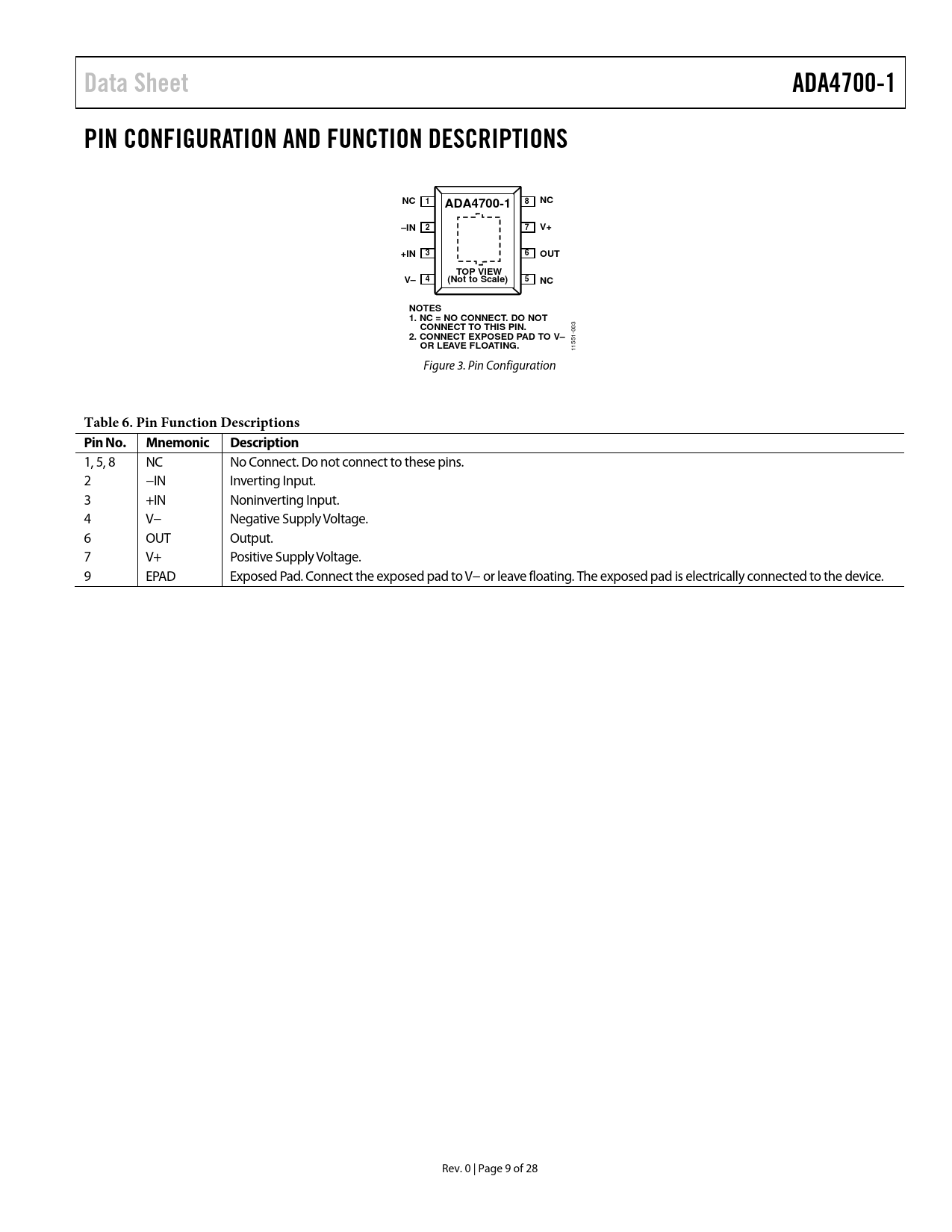

Data Sheet. ADA4700-1. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +IN. OUT. TOP VIEW. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
Data Sheet ADA4700-1 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NC 1 8 NC ADA4700-1 –IN 2 7 V+ +IN 3 6 OUT TOP VIEW V– 4 (Not to Scale) 5 NC NOTES 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
003
2. CONNECT EXPOSED PAD TO V– OR LEAVE FLOATING.
1551- 1 Figure 3. Pin Configuration
Table 6. Pin Function Descriptions Pin No. Mnemonic Description
1, 5, 8 NC No Connect. Do not connect to these pins. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 V− Negative Supply Voltage. 6 OUT Output. 7 V+ Positive Supply Voltage. 9 EPAD Exposed Pad. Connect the exposed pad to V− or leave floating. The exposed pad is electrical y connected to the device. Rev. 0 | Page 9 of 28 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications VSY = ±50 V Electrical Characteristics VSY = ±24 V Electrical Characteristics VSY = ±5 V Electrical Charateristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Theory of Operation Thermal Regulation Applications Information Thermal Management Safe Operating Area Driving Capacitive Loads Increasing Current Drive Constant Current Applications Outline Dimensions Ordering Guide
