ADA4700-1. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter. Rating. Table 5. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
link to page 23 link to page 9 link to page 23 link to page 9

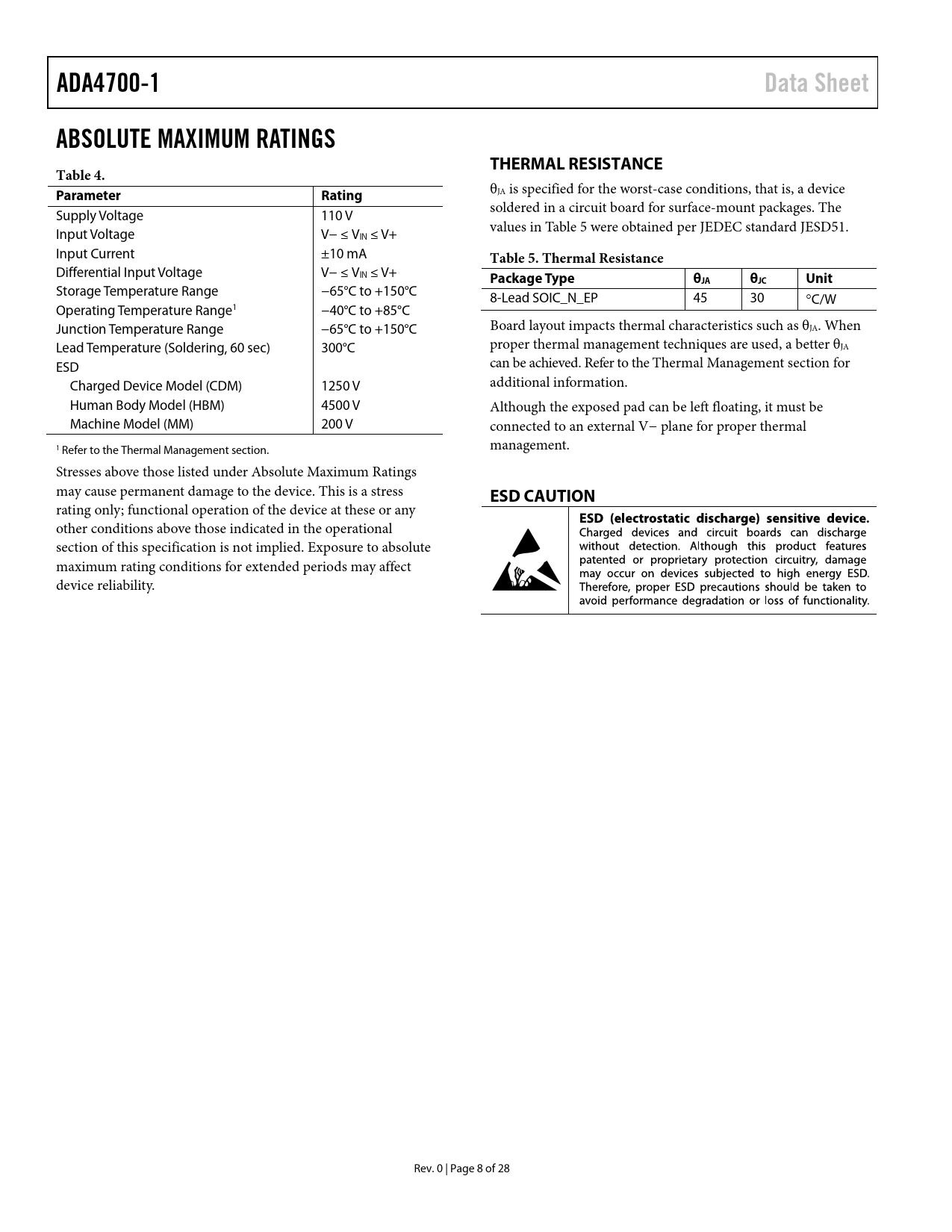

ADA4700-1 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 110 V soldered in a circuit board for surface-mount packages. The Input Voltage V− ≤ V values in Table 5 were obtained per JEDEC standard JESD51. IN ≤ V+ Input Current ±10 mA
Table 5. Thermal Resistance
Differential Input Voltage V− ≤ VIN ≤ V+
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead SOIC_N_EP 45 30 °C/W Operating Temperature Range1 −40°C to +85°C Junction Temperature Range −65°C to +150°C Board layout impacts thermal characteristics such as θJA. When Lead Temperature (Soldering, 60 sec) 300°C proper thermal management techniques are used, a better θJA ESD can be achieved. Refer to the Thermal Management section for Charged Device Model (CDM) 1250 V additional information. Human Body Model (HBM) 4500 V Although the exposed pad can be left floating, it must be Machine Model (MM) 200 V connected to an external V− plane for proper thermal 1 Refer to the Thermal Management section. management. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
ESD CAUTION
rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 8 of 28 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications VSY = ±50 V Electrical Characteristics VSY = ±24 V Electrical Characteristics VSY = ±5 V Electrical Charateristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Theory of Operation Thermal Regulation Applications Information Thermal Management Safe Operating Area Driving Capacitive Loads Increasing Current Drive Constant Current Applications Outline Dimensions Ordering Guide
