Datasheet AD8625, AD8626, AD8627 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Precision Low Power Single-Supply JFET Amplifiers |
| Pages / Page | 20 / 5 — Data Sheet. AD8625/AD8626/AD8627. ABSOLUTE MAXIMUM RATINGS. Table 3. … |
| Revision | F |
| File Format / Size | PDF / 290 Kb |
| Document Language | English |

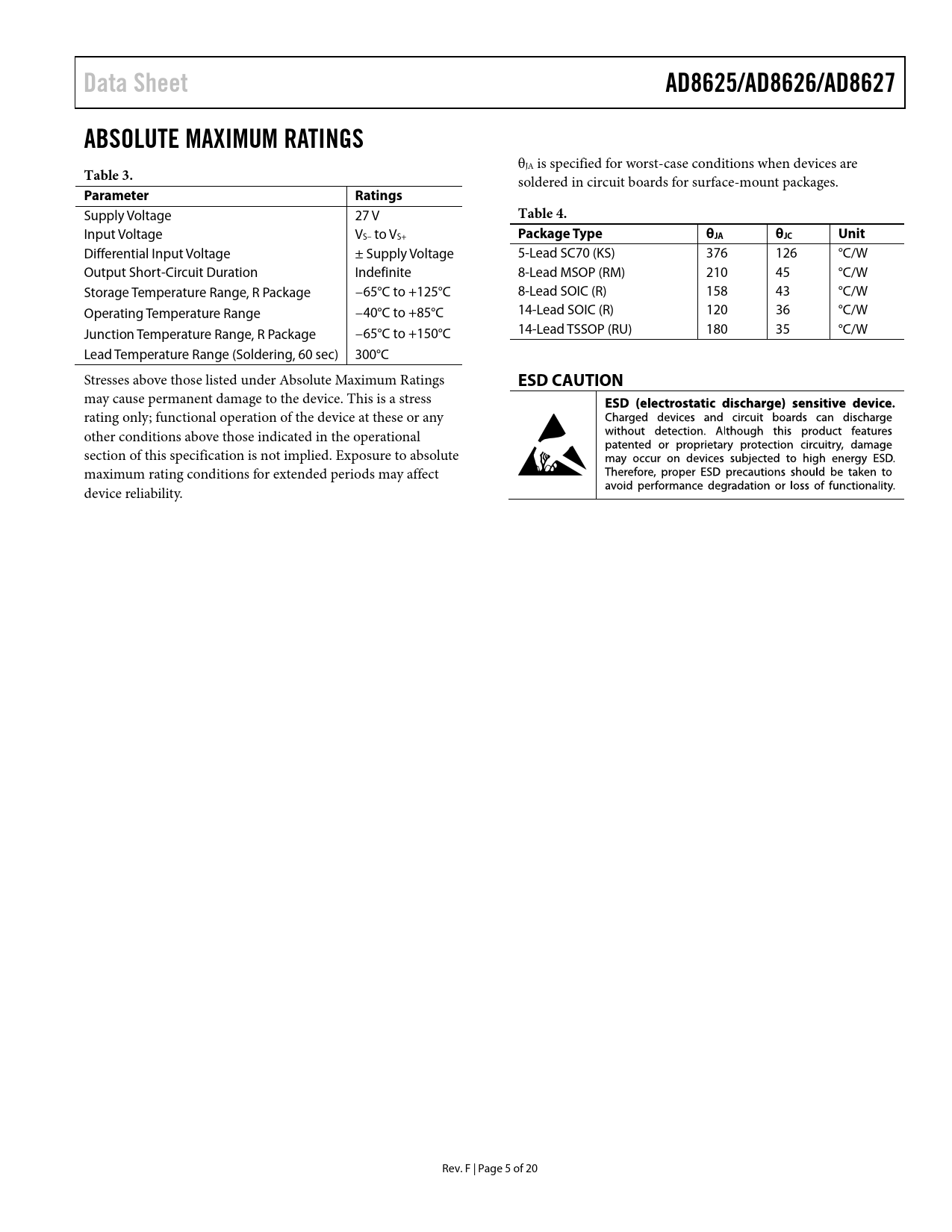

Data Sheet. AD8625/AD8626/AD8627. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Ratings. Table 4. Package Type. θJA. θJC. Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8625/AD8626/AD8627 ABSOLUTE MAXIMUM RATINGS
θJA is specified for worst-case conditions when devices are
Table 3.
soldered in circuit boards for surface-mount packages.
Parameter Ratings
Supply Voltage 27 V
Table 4.
Input Voltage VS– to VS+
Package Type θJA θJC Unit
Differential Input Voltage ± Supply Voltage 5-Lead SC70 (KS) 376 126 °C/W Output Short-Circuit Duration Indefinite 8-Lead MSOP (RM) 210 45 °C/W Storage Temperature Range, R Package −65°C to +125°C 8-Lead SOIC (R) 158 43 °C/W Operating Temperature Range −40°C to +85°C 14-Lead SOIC (R) 120 36 °C/W Junction Temperature Range, R Package −65°C to +150°C 14-Lead TSSOP (RU) 180 35 °C/W Lead Temperature Range (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings
ESD CAUTION
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. F | Page 5 of 20 Document Outline Features Applications Pin Configurations General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Applications Information Minimizing Input Current Photodiode Preamplifier Application Output Amplifier for DACs Eight-Pole Sallen Key Low-Pass Filter Outline Dimensions Ordering Guide
