Datasheet OP295, OP495 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Dual/Quad Rail-to-Rail Operational Amplifiers |
| Pages / Page | 16 / 1 — Dual/Quad Rail-to-Rail. Operational Amplifiers. OP295/OP495. FEATURES. … |
| Revision | G |
| File Format / Size | PDF / 379 Kb |
| Document Language | English |

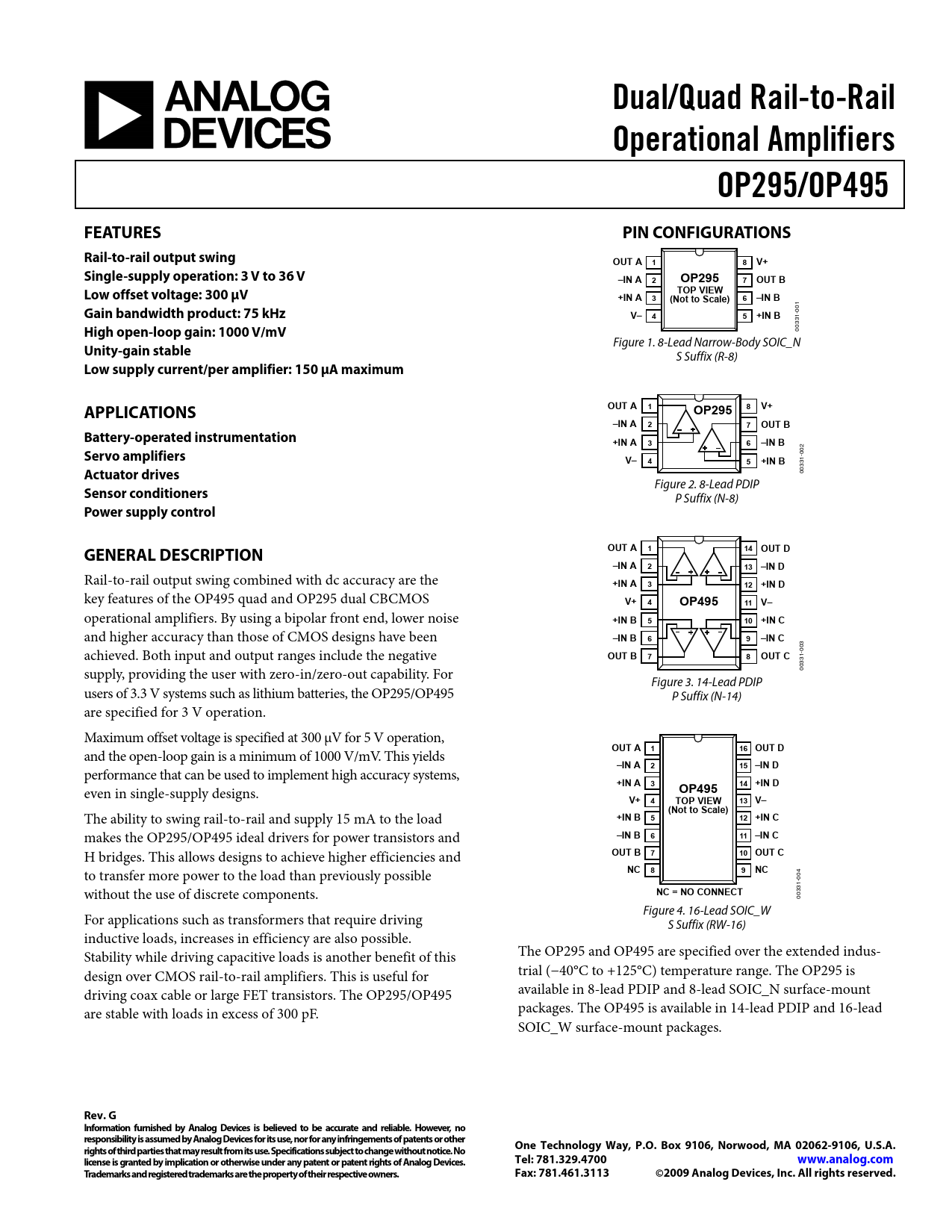

Dual/Quad Rail-to-Rail. Operational Amplifiers. OP295/OP495. FEATURES. PIN CONFIGURATIONS. Rail-to-rail output swing. OUT A 1
Model Line for this Datasheet
Text Version of Document
Dual/Quad Rail-to-Rail Operational Amplifiers OP295/OP495 FEATURES PIN CONFIGURATIONS Rail-to-rail output swing OUT A 1 8 V+ Single-supply operation: 3 V to 36 V –IN A 2 OP295 7 OUT B Low offset voltage: 300 μV TOP VIEW +IN A 3 (Not to Scale) 6 –IN B
1
Gain bandwidth product: 75 kHz V– 4 5 +IN B
-00 1 33
High open-loop gain: 1000 V/mV
00 Figure 1. 8-Lead Narrow-Body SOIC_N
Unity-gain stable
S Suffix (R-8)
Low supply current/per amplifier: 150 μA maximum OUT A APPLICATIONS 1 8 V+ OP295 –IN A 2 7 OUT B Battery-operated instrumentation +IN A 3 6 –IN B
2
Servo amplifiers
-00
V– 4 5 +IN B
31 03
Actuator drives
0 Figure 2. 8-Lead PDIP
Sensor conditioners
P Suffix (N-8)
Power supply control OUT A 1 14 OUT D GENERAL DESCRIPTION –IN A 2 13 –IN D
Rail-to-rail output swing combined with dc accuracy are the
+IN A 3 12 +IN D
key features of the OP495 quad and OP295 dual CBCMOS
V+ 4 OP495 11 V–
operational amplifiers. By using a bipolar front end, lower noise
+IN B 5 10 +IN C
and higher accuracy than those of CMOS designs have been
–IN B 6 9 –IN C
03 0 achieved. Both input and output ranges include the negative
OUT B 7 8 OUT C
1- 33 supply, providing the user with zero-in/zero-out capability. For 00 Figure 3. 14-Lead PDIP users of 3.3 V systems such as lithium batteries, the OP295/OP495 P Suffix (N-14) are specified for 3 V operation. Maximum offset voltage is specified at 300 μV for 5 V operation,
OUT A 1 16 OUT D
and the open-loop gain is a minimum of 1000 V/mV. This yields
–IN A 2 15 –IN D
performance that can be used to implement high accuracy systems,
+IN A 3 14 +IN D
even in single-supply designs.
OP495 V+ 4 TOP VIEW 13 V– (Not to Scale)
The ability to swing rail-to-rail and supply 15 mA to the load
+IN B 5 12 +IN C
makes the OP295/OP495 ideal drivers for power transistors and
–IN B 6 11 –IN C
H bridges. This allows designs to achieve higher efficiencies and
OUT B 7 10 OUT C
to transfer more power to the load than previously possible
NC 8 9 NC
4 00 1- without the use of discrete components.
NC = NO CONNECT
33 00 Figure 4. 16-Lead SOIC_W For applications such as transformers that require driving S Suffix (RW-16) inductive loads, increases in efficiency are also possible. Stability while driving capacitive loads is another benefit of this The OP295 and OP495 are specified over the extended indus- design over CMOS rail-to-rail amplifiers. This is useful for trial (−40°C to +125°C) temperature range. The OP295 is driving coax cable or large FET transistors. The OP295/OP495 available in 8-lead PDIP and 8-lead SOIC_N surface-mount are stable with loads in excess of 300 pF. packages. The OP495 is available in 14-lead PDIP and 16-lead SOIC_W surface-mount packages.
