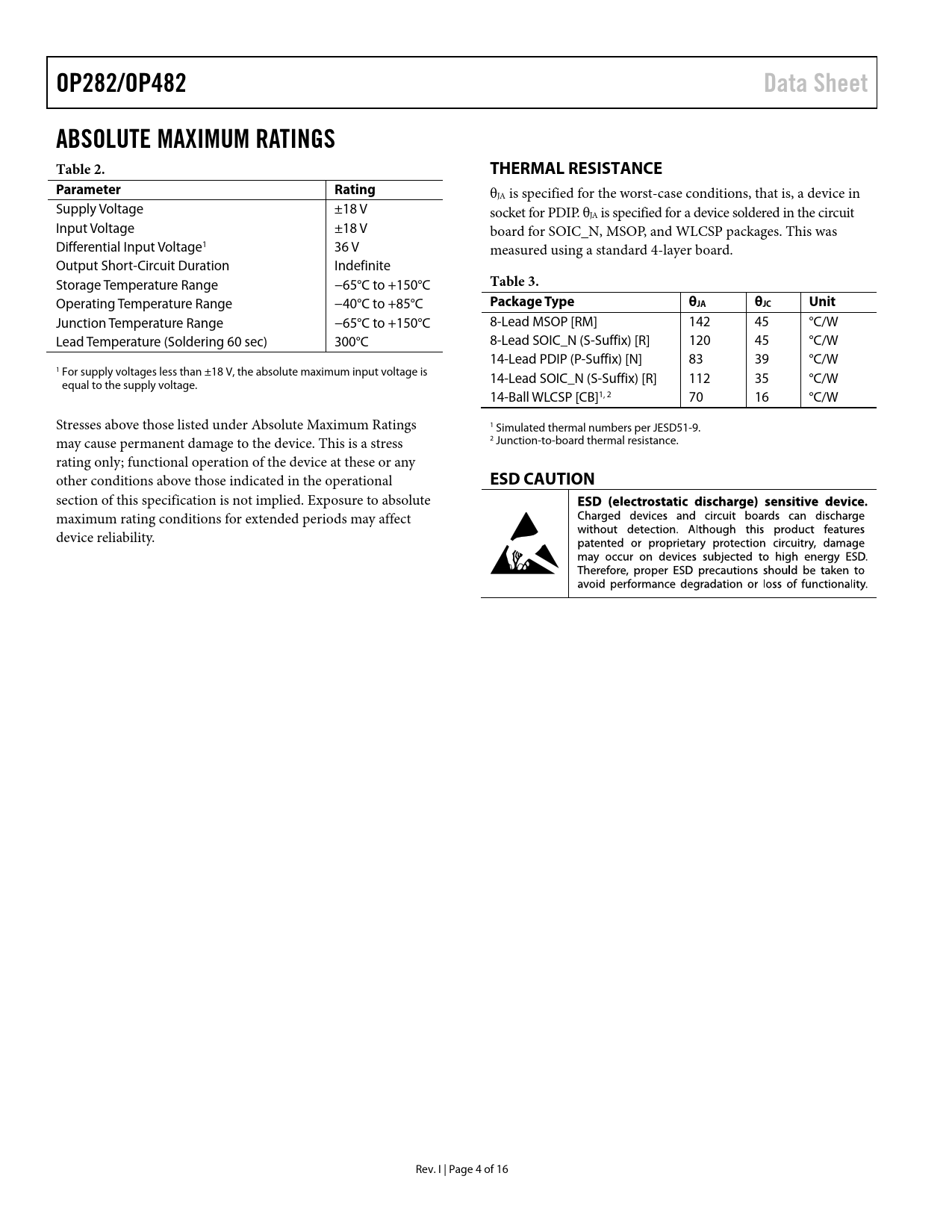

OP282/OP482. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Package Type. θJA. θJC. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4
OP282/OP482 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device in Supply Voltage ±18 V socket for PDIP. θJA is specified for a device soldered in the circuit Input Voltage ±18 V board for SOIC_N, MSOP, and WLCSP packages. This was Differential Input Voltage1 36 V measured using a standard 4-layer board. Output Short-Circuit Duration Indefinite Storage Temperature Range −65°C to +150°C
Table 3.
Operating Temperature Range −40°C to +85°C
Package Type θJA θJC Unit
Junction Temperature Range −65°C to +150°C 8-Lead MSOP [RM] 142 45 °C/W Lead Temperature (Soldering 60 sec) 300°C 8-Lead SOIC_N (S-Suffix) [R] 120 45 °C/W 14-Lead PDIP (P-Suffix) [N] 83 39 °C/W 1 For supply voltages less than ±18 V, the absolute maximum input voltage is 14-Lead SOIC_N (S-Suffix) [R] 112 35 °C/W equal to the supply voltage. 14-Ball WLCSP [CB]1, 2 70 16 °C/W Stresses above those listed under Absolute Maximum Ratings 1 Simulated thermal numbers per JESD51-9. may cause permanent damage to the device. This is a stress 2 Junction-to-board thermal resistance. rating only; functional operation of the device at these or any other conditions above those indicated in the operational
ESD CAUTION
section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. I | Page 4 of 16 Document Outline Features Applications General Description Pin Connections Table of Contents Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Applications Information High-Side Signal Conditioning Phase Inversion Active Filters Programmable State Variable Filter Outline Dimensions Ordering Guide
