Datasheet OP290 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Low Voltage Dual Precision, Micropower Op Amp |
| Pages / Page | 13 / 5 — OP290. Table 2. OP290G. Parameter. Symbol. Conditions. Min. Typ. Max. Unit |
| Revision | C |
| File Format / Size | PDF / 268 Kb |
| Document Language | English |
OP290. Table 2. OP290G. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Text Version of Document
link to page 5
OP290
VS = ±1.5 V to ±15 V, −40°C ≤ TA ≤ +85°C, unless otherwise noted.

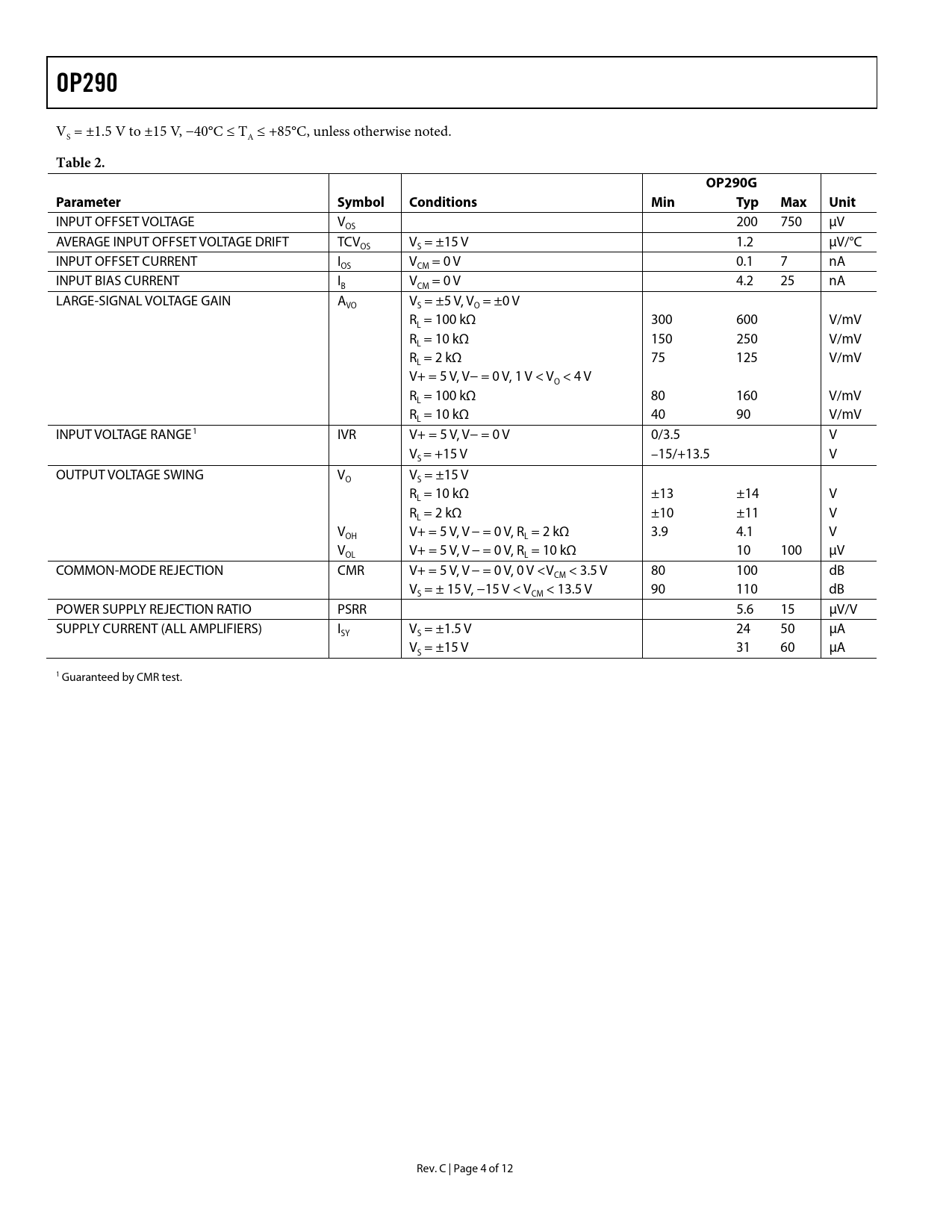

Table 2. OP290G Parameter Symbol Conditions Min Typ Max Unit
INPUT OFFSET VOLTAGE V 200 750 μV OS AVERAGE INPUT OFFSET VOLTAGE DRIFT TCV V = ±15 V 1.2 μV/°C OS S INPUT OFFSET CURRENT I V = 0 V 0.1 7 nA OS CM INPUT BIAS CURRENT I V = 0 V 4.2 25 nA B CM LARGE-SIGNAL VOLTAGE GAIN A V = ±5 V, V = ±0 V VO S O R = 100 kΩ 300 600 V/mV L R = 10 kΩ 150 250 V/mV L R = 2 kΩ 75 125 V/mV L V+ = 5 V, V− = 0 V, 1 V < V < 4 V O R = 100 kΩ 80 160 V/mV L R = 10 kΩ 40 90 V/mV L INPUT VOLTAGE RANGE1 IVR V+ = 5 V, V− = 0 V 0/3.5 V V = +15 V –15/+13.5 V S OUTPUT VOLTAGE SWING V V = ±15 V O S R = 10 kΩ ±13 ±14 V L R = 2 kΩ ±10 ±11 V L V V+ = 5 V, V − = 0 V, R = 2 kΩ 3.9 4.1 V OH L V V+ = 5 V, V − = 0 V, R = 10 kΩ 10 100 μV OL L COMMON-MODE REJECTION CMR V+ = 5 V, V − = 0 V, 0 V < V < 3.5 V 80 100 dB CM V = ± 15 V, −15 V < V < 13.5 V 90 110 dB S CM POWER SUPPLY REJECTION RATIO PSRR 5.6 15 μV/V SUPPLY CURRENT (ALL AMPLIFIERS) I V = ±1.5 V 24 50 μA SY S V = ±15 V 31 60 μA S 1 Guaranteed by CMR test. Rev. C | Page 4 of 12 Document Outline Features Pin Connections General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Theory of Operation Battery-Powered Applications Input Voltage Protection Single-Supply Output Voltage Range Applications Information Temperature to 4 mA to 20 mA Transmitter Variable Slew Rate Filter Low Overhead Voltage Reference Outline Dimensions Ordering Guide
