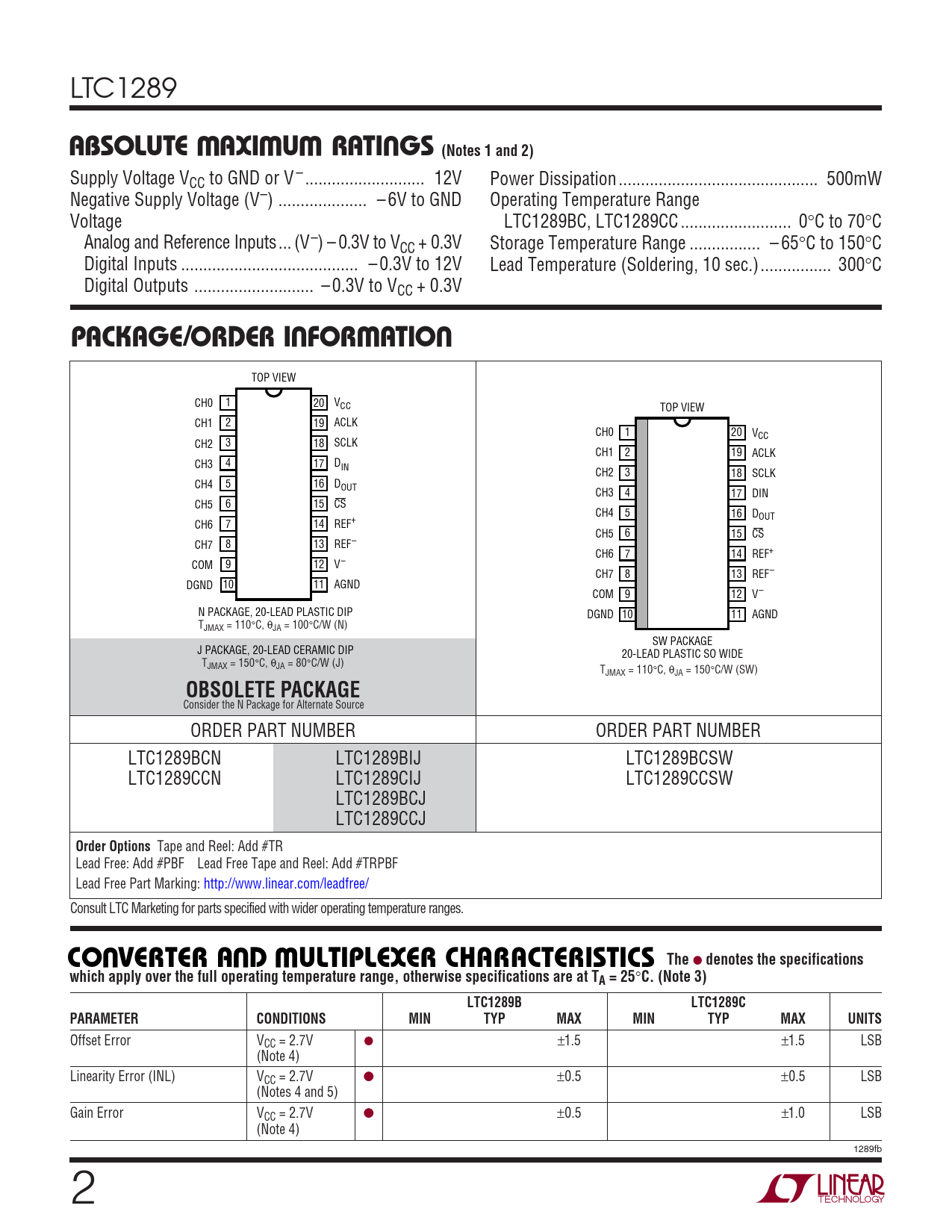

LTC1289 WWWUABSOLUTEAXI UAR TI GS (Notes 1 and 2) Supply Voltage VCC to GND or V – ... 12V Power Dissipation ... 500mW Negative Supply Voltage (V–) .. – 6V to GND Operating Temperature Range Voltage LTC1289BC, LTC1289CC ... 0°C to 70°C Analog and Reference Inputs... (V–) – 0.3V to VCC + 0.3V Storage Temperature Range .. – 65°C to 150°C Digital Inputs .. – 0.3V to 12V Lead Temperature (Soldering, 10 sec.).. 300°C Digital Outputs ... – 0.3V to VCC + 0.3V UWUPACKAGE/ORDER I FOR ATIO TOP VIEW CH0 1 20 VCC TOP VIEW CH1 2 19 ACLK CH0 1 20 VCC CH2 3 18 SCLK CH1 2 19 ACLK CH3 4 17 DIN CH2 3 18 SCLK CH4 5 16 DOUT CH3 4 17 DIN CH5 6 15 CS CH4 5 16 DOUT CH6 7 14 REF+ CH5 6 15 CS CH7 8 13 REF– CH6 7 14 REF+ COM 9 12 V– CH7 8 13 REF– DGND 10 11 AGND COM 9 12 V– N PACKAGE, 20-LEAD PLASTIC DIP DGND 10 11 AGND TJMAX = 110°C, θJA = 100°C/W (N) SW PACKAGE J PACKAGE, 20-LEAD CERAMIC DIP 20-LEAD PLASTIC SO WIDE TJMAX = 150°C, θJA = 80°C/W (J) TJMAX = 110°C, θJA = 150°C/W (SW) OBSOLETE PACKAGE Consider the N Package for Alternate Source ORDER PART NUMBER ORDER PART NUMBER LTC1289BCN LTC1289BIJ LTC1289BCSW LTC1289CCN LTC1289CIJ LTC1289CCSW LTC1289BCJ LTC1289CCJ Order Options Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ Consult LTC Marketing for parts specified with wider operating temperature ranges. UU WCO VERTER A D ULTIPLEXER CHARACTERISTICS The ● denotes the specificationswhich apply over the full operating temperature range, otherwise specifications are at TA = 25 ° C. (Note 3)LTC1289BLTC1289CPARAMETERCONDITIONSMINTYPMAXMINTYPMAXUNITS Offset Error VCC = 2.7V ● ±1.5 ±1.5 LSB (Note 4) Linearity Error (INL) VCC = 2.7V ● ±0.5 ±0.5 LSB (Notes 4 and 5) Gain Error VCC = 2.7V ● ±0.5 ±1.0 LSB (Note 4) 1289fb 2
