LTC1293/LTC1294/LTC1296

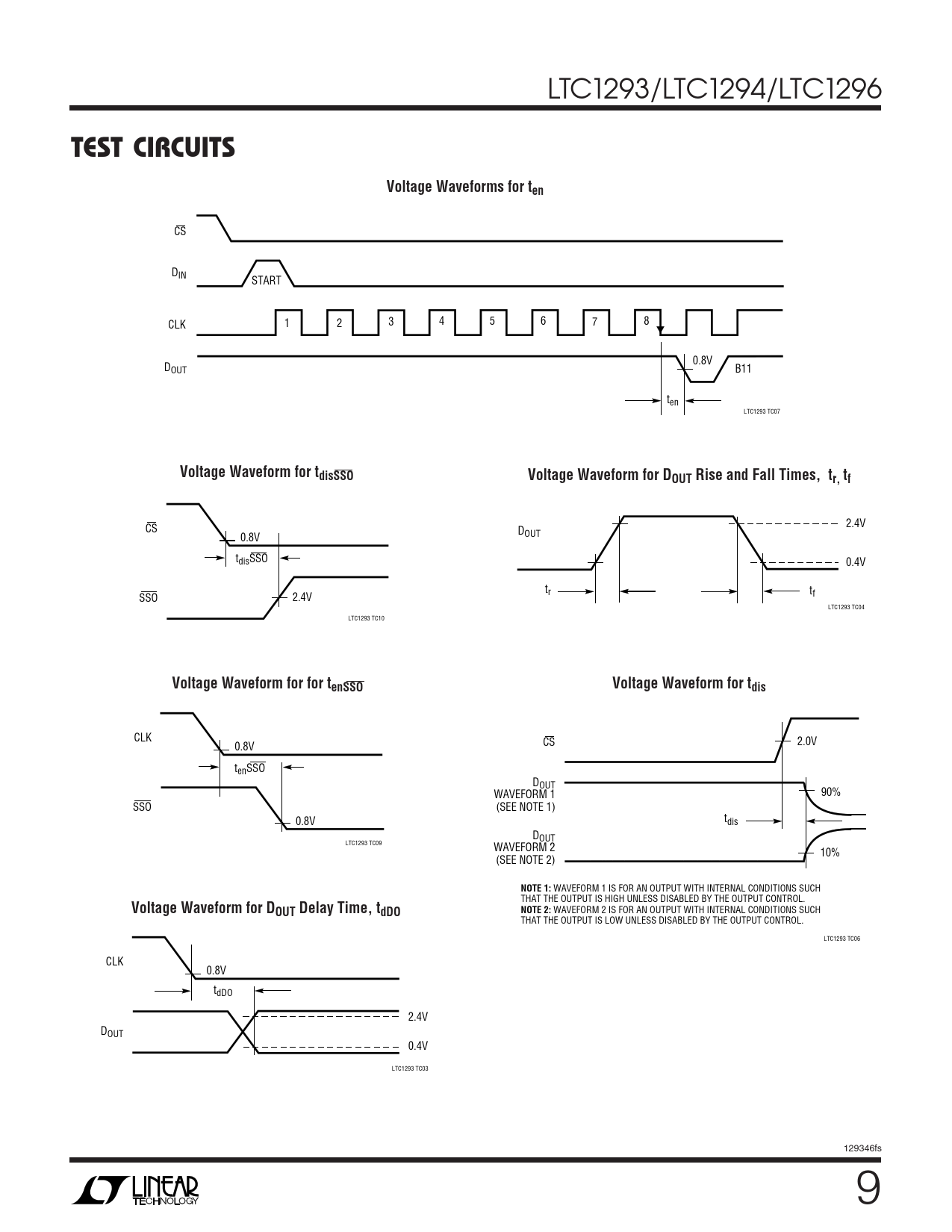

TEST CIRCUITS Voltage Waveforms for ten
CS DIN START CLK 1 2 3 4 5 6 7 8 0.8V DOUT B11 ten LTC1293 TC07
Voltage Waveform for tdisSSO Voltage Waveform for DOUT Rise and Fall Times, tr, tf
2.4V CS DOUT 0.8V tdisSSO 0.4V tr tf SSO 2.4V LTC1293 TC04 LTC1293 TC10
Voltage Waveform for for t Voltage Waveform for t enSSO dis
CLK CS 2.0V 0.8V tenSSO DOUT WAVEFORM 1 90% SSO (SEE NOTE 1) 0.8V tdis DOUT LTC1293 TC09 WAVEFORM 2 10% (SEE NOTE 2)
NOTE 1:
WAVEFORM 1 IS FOR AN OUTPUT WITH INTERNAL CONDITIONS SUCH THAT THE OUTPUT IS HIGH UNLESS DISABLED BY THE OUTPUT CONTROL.
Voltage Waveform for DOUT Delay Time, tdDO NOTE 2:
WAVEFORM 2 IS FOR AN OUTPUT WITH INTERNAL CONDITIONS SUCH THAT THE OUTPUT IS LOW UNLESS DISABLED BY THE OUTPUT CONTROL. LTC1293 TC06 CLK 0.8V tdDO 2.4V DOUT 0.4V LTC1293 TC03 129346fs 9
