Datasheet LTC2123 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Dual 14-Bit 250Msps ADC with JESD204B Serial Outputs |
| Pages / Page | 50 / 9 — TYPICAL PERFORMANCE CHARACTERISTICS. CMLOUT Bathtub Curve, 2.5Gbps. … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

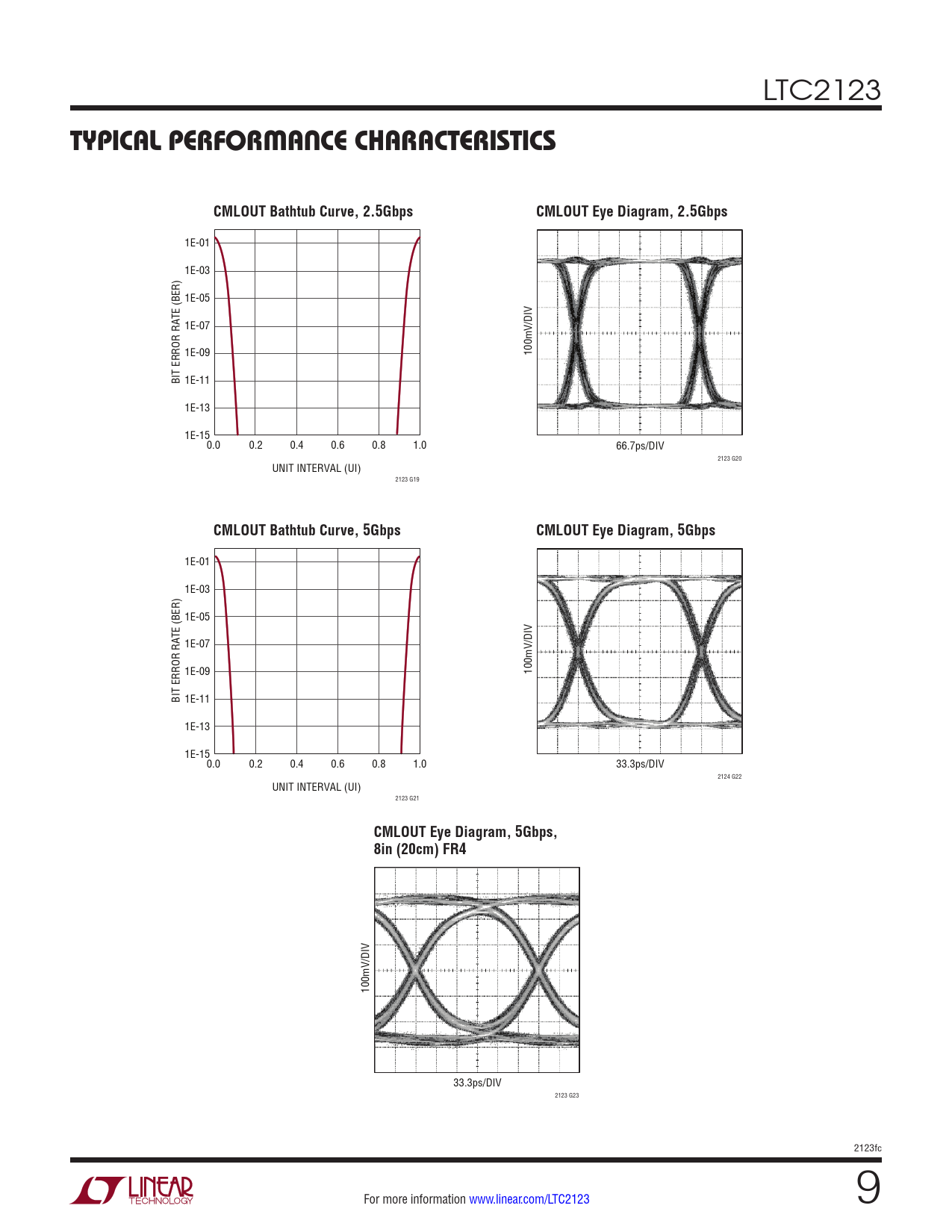

TYPICAL PERFORMANCE CHARACTERISTICS. CMLOUT Bathtub Curve, 2.5Gbps. CMLOUT Eye Diagram, 2.5Gbps. CMLOUT Bathtub Curve, 5Gbps
Model Line for this Datasheet
Text Version of Document
LTC2123
TYPICAL PERFORMANCE CHARACTERISTICS CMLOUT Bathtub Curve, 2.5Gbps CMLOUT Eye Diagram, 2.5Gbps
1E-01 1E-03 1E-05 1E-07 1E-09 100mV/DIV BIT ERROR RATE (BER) 1E-11 1E-13 1E-150.0 0.2 0.4 0.6 0.8 1.0 66.7ps/DIV 2123 G20 UNIT INTERVAL (UI) 2123 G19
CMLOUT Bathtub Curve, 5Gbps CMLOUT Eye Diagram, 5Gbps
1E-01 1E-03 1E-05 1E-07 1E-09 100mV/DIV BIT ERROR RATE (BER) 1E-11 1E-13 1E-150.0 0.2 0.4 0.6 0.8 1.0 33.3ps/DIV 2124 G22 UNIT INTERVAL (UI) 2123 G21
CMLOUT Eye Diagram, 5Gbps, 8in (20cm) FR4
100mV/DIV 33.3ps/DIV 2123 G23 2123fc For more information www.linear.com/LTC2123 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Converter Characteristics Pin Configuration Analog Input Dynamic Accuracy Internal Reference Characteristics Power Requirements Digital Inputs and Outputs Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagram SPI Timing Definitions Applications Information Typical Applications Package Description Typical Application Related Parts
