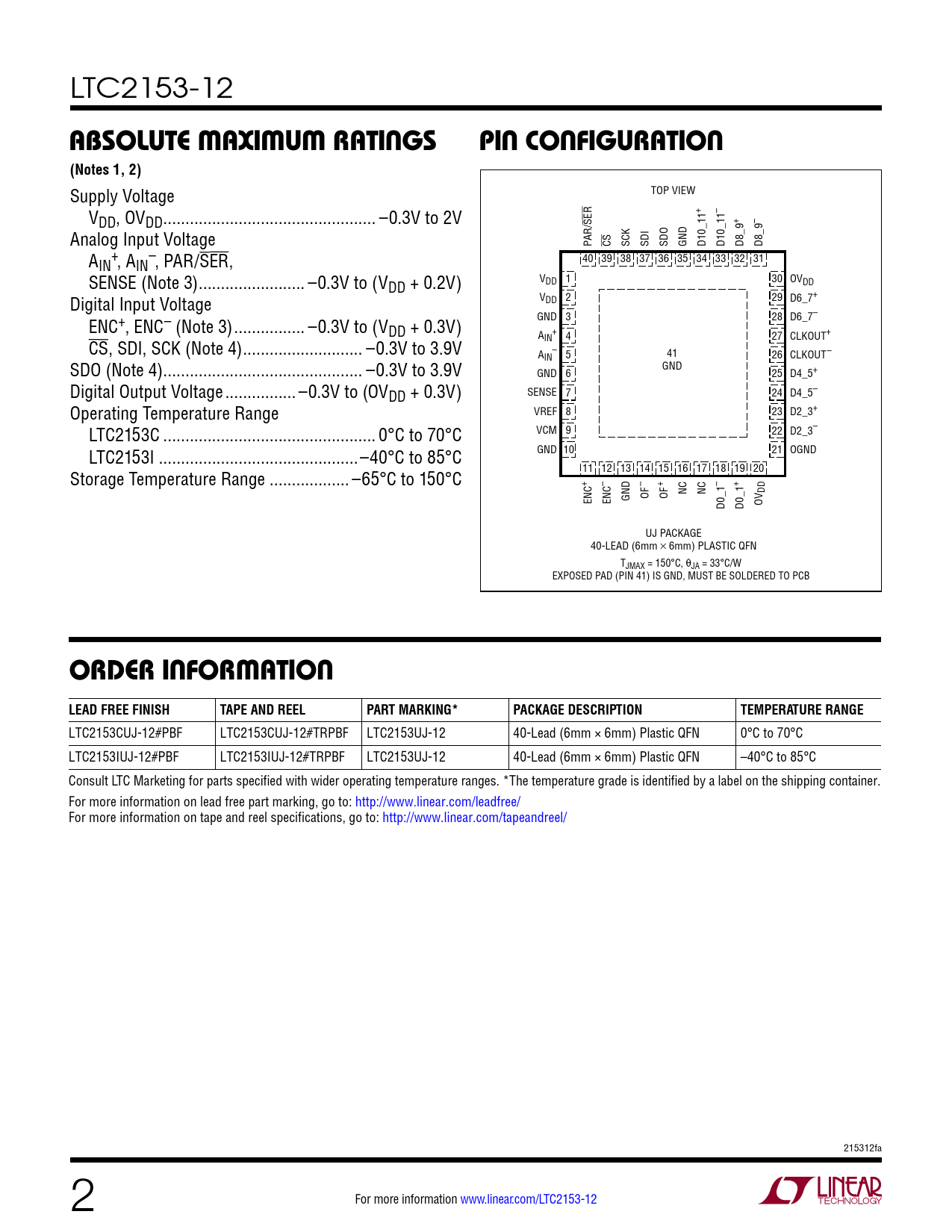

LTC2153-12
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage TOP VIEW V + – DD, OVDD .. –0.3V to 2V SER + – Analog Input Voltage PAR/ CS SCK SDI SDO GND D10_11 D10_11 D8_9 D8_9 A + – IN , AIN , PAR/SER, 40 39 38 37 36 35 34 33 32 31 SENSE (Note 3) .. –0.3V to (VDD + 0.2V) VDD 1 30 OVDD Digital Input Voltage VDD 2 29 D6_7+ ENC+, ENC– (Note 3) .. –0.3V to (V GND 3 28 D6_7– DD + 0.3V) A + IN 4 27 CLKOUT+ CS, SDI, SCK (Note 4) ... –0.3V to 3.9V A – IN 5 41 26 CLKOUT– SDO (Note 4) ... –0.3V to 3.9V GND GND 6 25 D4_5+ Digital Output Voltage .. –0.3V to (OVDD + 0.3V) SENSE 7 24 D4_5– Operating Temperature Range VREF 8 23 D2_3+ LTC2153C .. 0°C to 70°C VCM 9 22 D2_3– LTC2153I ...–40°C to 85°C GND 10 21 OGND Storage Temperature Range .. –65°C to 150°C 11 12 13 14 15 16 17 18 19 20 + – – F + F – + DD ENC ENC GND UJ P O ACKAGE O NC NC D0_1 D0_1 OV 40-LEAD (6mm × 6mm) PLASTIC QFN TJMAX = 150°C, θJA = 33°C/W EXPOSED PAD (PIN 41) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2153CUJ-12#PBF LTC2153CUJ-12#TRPBF LTC2153UJ-12 40-Lead (6mm × 6mm) Plastic QFN 0°C to 70°C LTC2153IUJ-12#PBF LTC2153IUJ-12#TRPBF LTC2153UJ-12 40-Lead (6mm × 6mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 215312fa 2 For more information www.linear.com/LTC2153-12 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Power Requirements Digital Inputs And Outputs Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagrams Applications Information Typical Applications Package Description Related Parts
