LTC2159

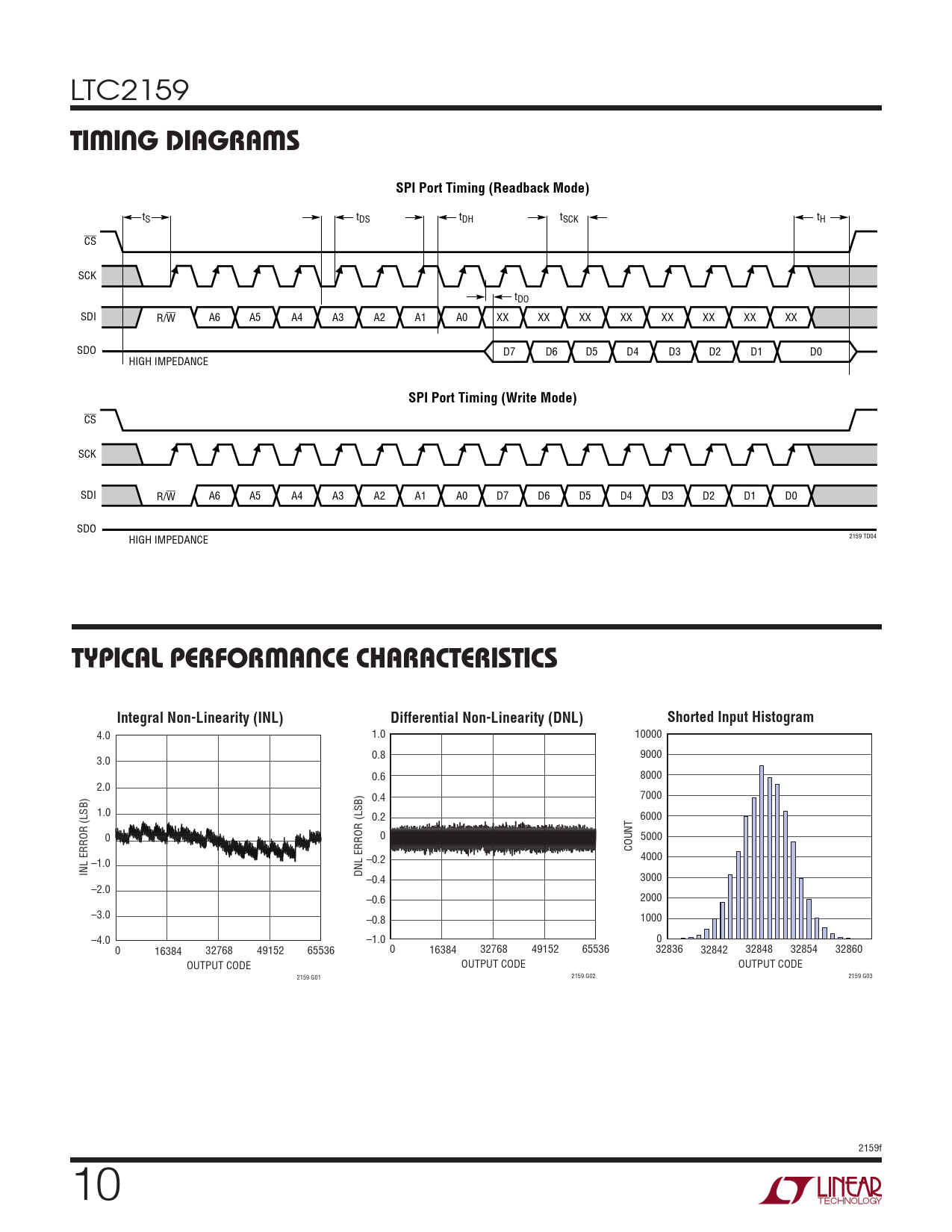

TiMing DiagraMs SPI Port Timing (Readback Mode)
tS tDS tDH tSCK tH CS SCK tDO SDI R/W A6 A5 A4 A3 A2 A1 A0 XX XX XX XX XX XX XX XX SDO D7 D6 D5 D4 D3 D2 D1 D0 HIGH IMPEDANCE
SPI Port Timing (Write Mode)
CS SCK SDI R/W A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 SDO 2159 TD04 HIGH IMPEDANCE
Typical perForMance characTerisTics Integral Non-Linearity (INL) Differential Non-Linearity (DNL) Shorted Input Histogram
4.0 1.0 10000 3.0 0.8 9000 0.6 8000 2.0 0.4 7000 1.0 0.2 6000 0 0 5000 COUNT 4000 –1.0 –0.2 INL ERROR (LSB) DNL ERROR (LSB) –0.4 3000 –2.0 –0.6 2000 –3.0 –0.8 1000 –4.0 –1.0 0 0 16384 32768 49152 65536 0 16384 32768 49152 65536 32836 32842 32848 32854 32860 OUTPUT CODE OUTPUT CODE OUTPUT CODE 2159 G01 2159 G02 2159 G03 2159f 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
