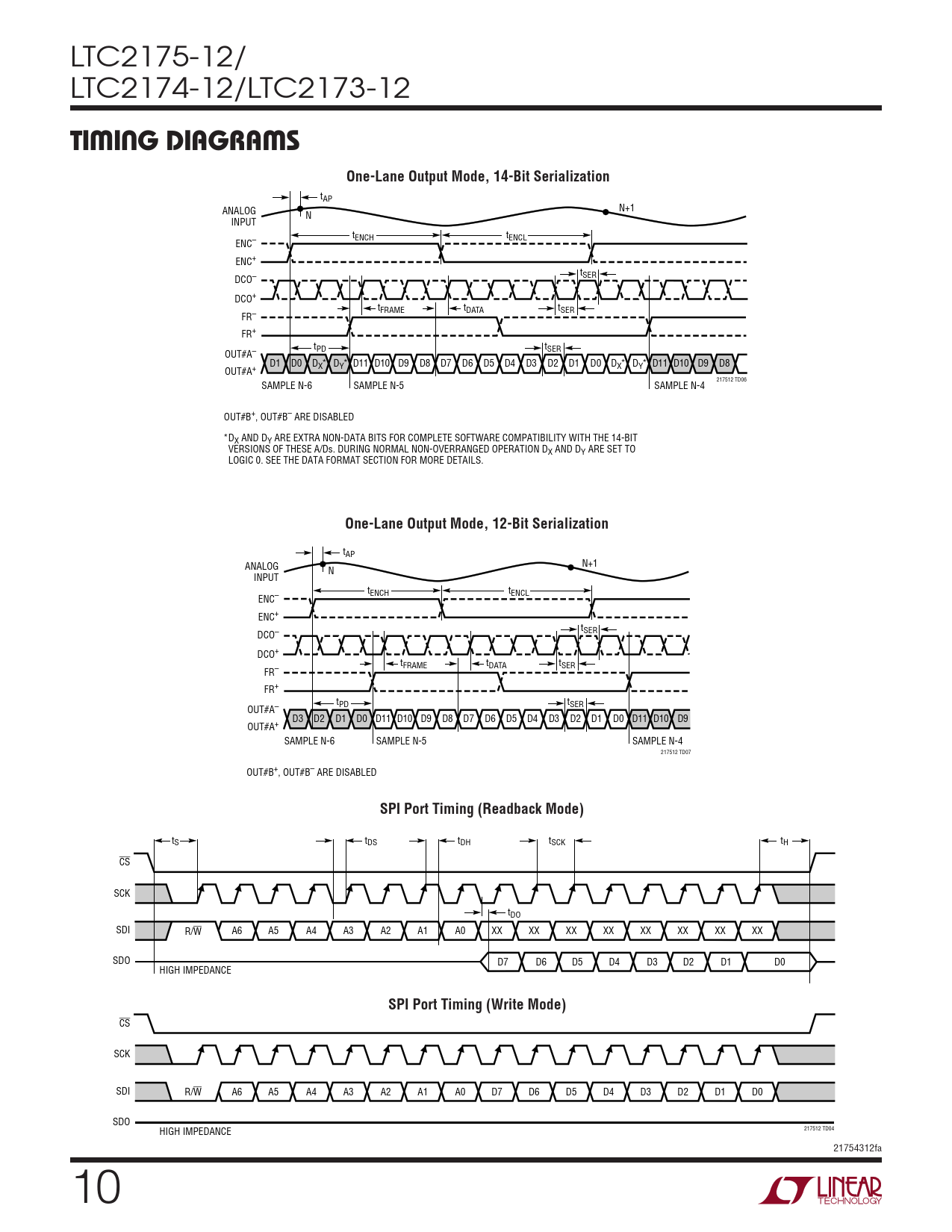

TiMing DiagraMs. One-Lane Output Mode, 14-Bit Serialization. One-Lane Output Mode, 12-Bit Serialization
Model Line for this Datasheet
- LTC2173CUKG-12#PBF LTC2173CUKG-12#PBF LTC2173CUKG-12#TRPBF LTC2173CUKG-12#TRPBF LTC2173IUKG-12#PBF LTC2173IUKG-12#PBF LTC2173IUKG-12#TRPBF LTC2173IUKG-12#TRPBF
Text Version of Document
LTC2175-12/ LTC2174-12/LTC2173-12
TiMing DiagraMs One-Lane Output Mode, 14-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D1 D0 DX* DY* D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 DX* DY* D11 D10 D9 D8 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 217512 TD06 OUT#B+, OUT#B– ARE DISABLED *DX AND DY ARE EXTRA NON-DATA BITS FOR COMPLETE SOFTWARE COMPATIBILITY WITH THE 14-BIT VERSIONS OF THESE A/Ds. DURING NORMAL NON-OVERRANGED OPERATION DX AND DY ARE SET TO LOGIC 0. SEE THE DATA FORMAT SECTION FOR MORE DETAILS.
One-Lane Output Mode, 12-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D3 D2 D1 D0 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 D11 D10 D9 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 217512 TD07 OUT#B+, OUT#B– ARE DISABLED
SPI Port Timing (Readback Mode)
tS tDS tDH tSCK tH CS SCK tDO SDI R/W A6 A5 A4 A3 A2 A1 A0 XX XX XX XX XX XX XX XX SDO D7 D6 D5 D4 D3 D2 D1 D0 HIGH IMPEDANCE
SPI Port Timing (Write Mode)
