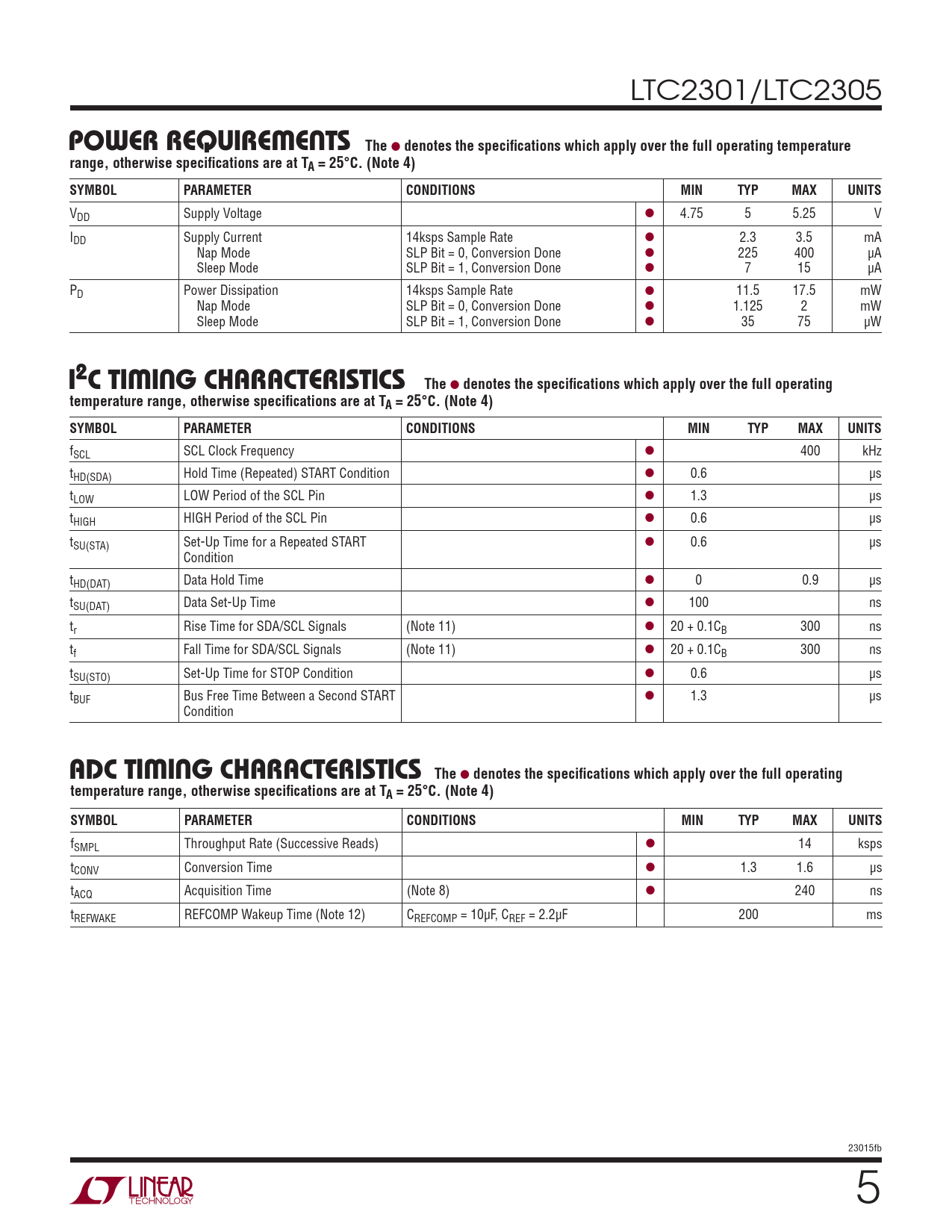

POWER REQUIREMENTS. The. denotes the specifi cations which apply over the full operating temperature
