Datasheet LTC2378-16 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 16-Bit, 1Msps, Low Power SAR ADC with 97dB SNR |
| Pages / Page | 26 / 3 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| File Format / Size | PDF / 782 Kb |
| Document Language | English |

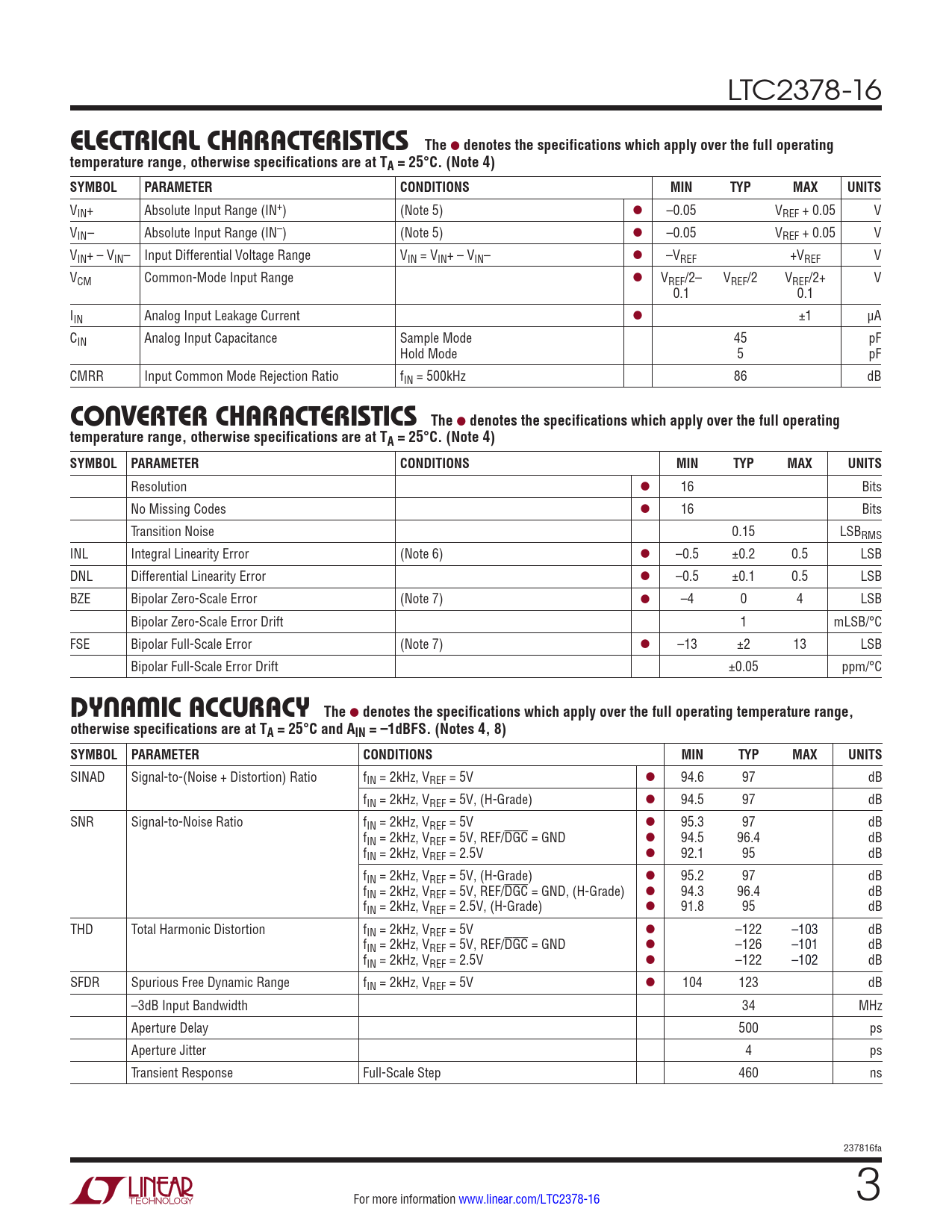

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC2378CDE-16#PBF LTC2378CDE-16#PBF LTC2378CDE-16#TRPBF LTC2378CDE-16#TRPBF LTC2378CMS-16#PBF LTC2378CMS-16#PBF LTC2378CMS-16#TRPBF LTC2378CMS-16#TRPBF LTC2378HMS-16#PBF LTC2378HMS-16#PBF LTC2378HMS-16#TRPBF LTC2378HMS-16#TRPBF LTC2378IDE-16#PBF LTC2378IDE-16#PBF LTC2378IDE-16#TRPBF LTC2378IDE-16#TRPBF LTC2378IMS-16#PBF LTC2378IMS-16#PBF LTC2378IMS-16#TRPBF LTC2378IMS-16#TRPBF
Text Version of Document
LTC2378-16
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN+ Absolute Input Range (IN+) (Note 5) l –0.05 VREF + 0.05 V VIN– Absolute Input Range (IN–) (Note 5) l –0.05 VREF + 0.05 V VIN+ – VIN– Input Differential Voltage Range VIN = VIN+ – VIN– l –VREF +VREF V VCM Common-Mode Input Range l VREF/2– VREF/2 VREF/2+ V 0.1 0.1 IIN Analog Input Leakage Current l ±1 µA CIN Analog Input Capacitance Sample Mode 45 pF Hold Mode 5 pF CMRR Input Common Mode Rejection Ratio fIN = 500kHz 86 dB
converTer characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution l 16 Bits No Missing Codes l 16 Bits Transition Noise 0.15 LSBRMS INL Integral Linearity Error (Note 6) l –0.5 ±0.2 0.5 LSB DNL Differential Linearity Error l –0.5 ±0.1 0.5 LSB BZE Bipolar Zero-Scale Error (Note 7) l –4 0 4 LSB Bipolar Zero-Scale Error Drift 1 mLSB/°C FSE Bipolar Full-Scale Error (Note 7) l –13 ±2 13 LSB Bipolar Full-Scale Error Drift ±0.05 ppm/°C
DynaMic accuracy The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C and AIN = –1dBFS. (Notes 4, 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SINAD Signal-to-(Noise + Distortion) Ratio fIN = 2kHz, VREF = 5V l 94.6 97 dB fIN = 2kHz, VREF = 5V, (H-Grade) l 94.5 97 dB SNR Signal-to-Noise Ratio fIN = 2kHz, VREF = 5V l 95.3 97 dB fIN = 2kHz, VREF = 5V, REF/DGC = GND l 94.5 96.4 dB fIN = 2kHz, VREF = 2.5V l 92.1 95 dB fIN = 2kHz, VREF = 5V, (H-Grade) l 95.2 97 dB fIN = 2kHz, VREF = 5V, REF/DGC = GND, (H-Grade) l 94.3 96.4 dB fIN = 2kHz, VREF = 2.5V, (H-Grade) l 91.8 95 dB THD Total Harmonic Distortion fIN = 2kHz, VREF = 5V l –122 –103 dB fIN = 2kHz, VREF = 5V, REF/DGC = GND l –126 –101 dB fIN = 2kHz, VREF = 2.5V l –122 –102 dB SFDR Spurious Free Dynamic Range fIN = 2kHz, VREF = 5V l 104 123 dB –3dB Input Bandwidth 34 MHz Aperture Delay 500 ps Aperture Jitter 4 ps Transient Response Full-Scale Step 460 ns 237816fa For more information www.linear.com/LTC2378-16 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Revision History Typical Application Related Parts
