Datasheet LTC2380-16 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 16-Bit, 2Msps, Low Power SAR ADC with 96.2dB SNR |
| Pages / Page | 26 / 3 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| File Format / Size | PDF / 694 Kb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC2380CDE-16#PBF LTC2380CDE-16#PBF LTC2380CDE-16#TRPBF LTC2380CDE-16#TRPBF LTC2380CMS-16#PBF LTC2380CMS-16#PBF LTC2380CMS-16#TRPBF LTC2380CMS-16#TRPBF LTC2380HMS-16#PBF LTC2380HMS-16#PBF LTC2380HMS-16#TRPBF LTC2380HMS-16#TRPBF LTC2380IDE-16#PBF LTC2380IDE-16#PBF LTC2380IDE-16#TRPBF LTC2380IDE-16#TRPBF LTC2380IMS-16#PBF LTC2380IMS-16#PBF LTC2380IMS-16#TRPBF LTC2380IMS-16#TRPBF
Text Version of Document
LTC2380-16

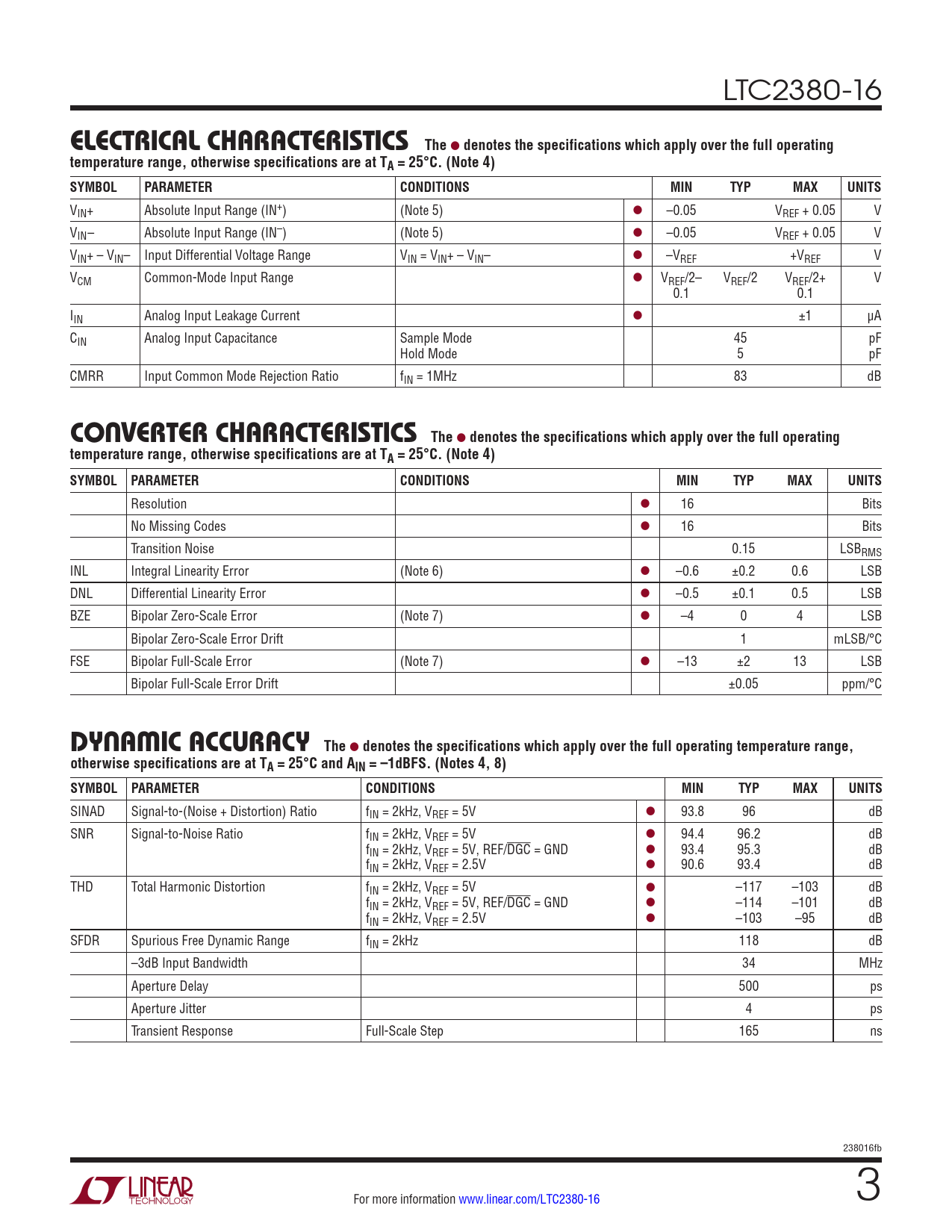

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN+ Absolute Input Range (IN+) (Note 5) l –0.05 VREF + 0.05 V VIN– Absolute Input Range (IN–) (Note 5) l –0.05 VREF + 0.05 V VIN+ – VIN– Input Differential Voltage Range VIN = VIN+ – VIN– l –VREF +VREF V VCM Common-Mode Input Range l VREF/2– VREF/2 VREF/2+ V 0.1 0.1 IIN Analog Input Leakage Current l ±1 µA CIN Analog Input Capacitance Sample Mode 45 pF Hold Mode 5 pF CMRR Input Common Mode Rejection Ratio fIN = 1MHz 83 dB
CONVERTER CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution l 16 Bits No Missing Codes l 16 Bits Transition Noise 0.15 LSBRMS INL Integral Linearity Error (Note 6) l –0.6 ±0.2 0.6 LSB DNL Differential Linearity Error l –0.5 ±0.1 0.5 LSB BZE Bipolar Zero-Scale Error (Note 7) l –4 0 4 LSB Bipolar Zero-Scale Error Drift 1 mLSB/°C FSE Bipolar Full-Scale Error (Note 7) l –13 ±2 13 LSB Bipolar Full-Scale Error Drift ±0.05 ppm/°C
DYNAMIC ACCURACY The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C and AIN = –1dBFS. (Notes 4, 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SINAD Signal-to-(Noise + Distortion) Ratio fIN = 2kHz, VREF = 5V l 93.8 96 dB SNR Signal-to-Noise Ratio fIN = 2kHz, VREF = 5V l 94.4 96.2 dB fIN = 2kHz, VREF = 5V, REF/DGC = GND l 93.4 95.3 dB fIN = 2kHz, VREF = 2.5V l 90.6 93.4 dB THD Total Harmonic Distortion fIN = 2kHz, VREF = 5V l –117 –103 dB fIN = 2kHz, VREF = 5V, REF/DGC = GND l –114 –101 dB fIN = 2kHz, VREF = 2.5V l –103 –95 dB SFDR Spurious Free Dynamic Range fIN = 2kHz 118 dB –3dB Input Bandwidth 34 MHz Aperture Delay 500 ps Aperture Jitter 4 ps Transient Response Full-Scale Step 165 ns 238016fb For more information www.linear.com/LTC2380-16 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Typical Application Related Parts
