TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V,
Model Line for this Datasheet
- LTC2380CDE-16#PBF LTC2380CDE-16#PBF LTC2380CDE-16#TRPBF LTC2380CDE-16#TRPBF LTC2380CMS-16#PBF LTC2380CMS-16#PBF LTC2380CMS-16#TRPBF LTC2380CMS-16#TRPBF LTC2380HMS-16#PBF LTC2380HMS-16#PBF LTC2380HMS-16#TRPBF LTC2380HMS-16#TRPBF LTC2380IDE-16#PBF LTC2380IDE-16#PBF LTC2380IDE-16#TRPBF LTC2380IDE-16#TRPBF LTC2380IMS-16#PBF LTC2380IMS-16#PBF LTC2380IMS-16#TRPBF LTC2380IMS-16#TRPBF
Text Version of Document
LTC2380-16

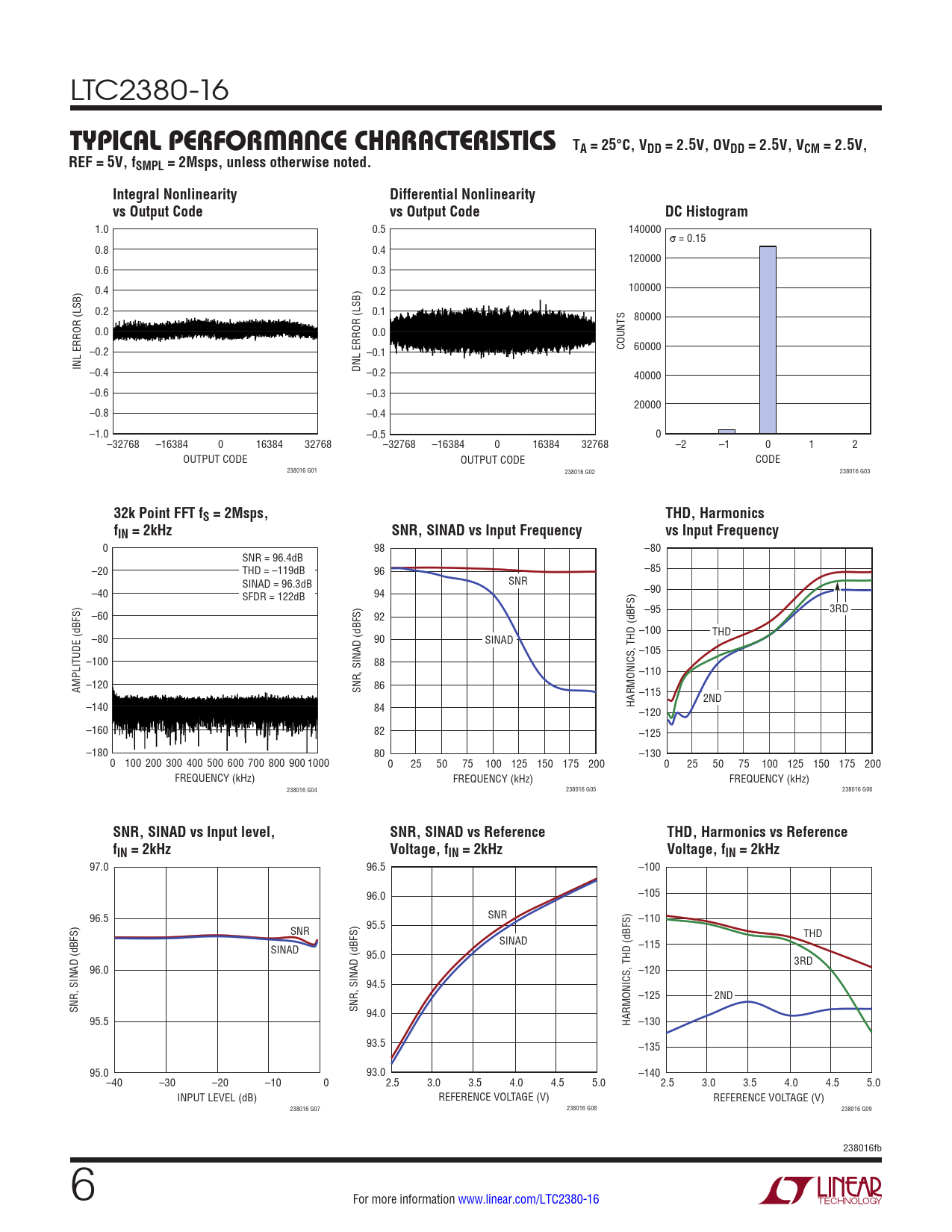

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V, REF = 5V, fSMPL = 2Msps, unless otherwise noted. Integral Nonlinearity Differential Nonlinearity vs Output Code vs Output Code DC Histogram
