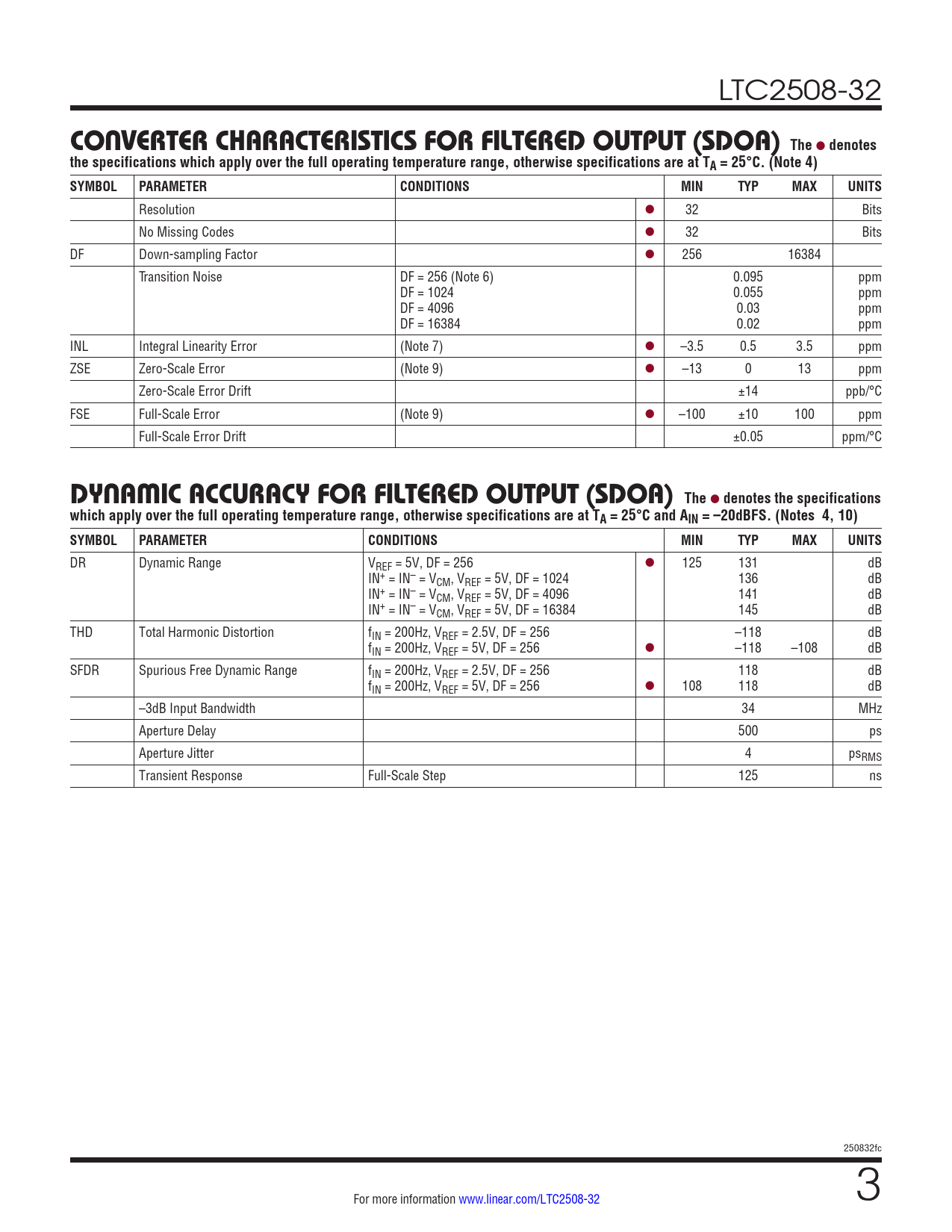

CONVERTER CHARACTERISTICS FOR FILTERED OUTPUT (SDOA). The. denotes
Model Line for this Datasheet
Text Version of Document
LTC2508-32
CONVERTER CHARACTERISTICS FOR FILTERED OUTPUT (SDOA) The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution l 32 Bits No Missing Codes l 32 Bits DF Down-sampling Factor l 256 16384 Transition Noise DF = 256 (Note 6) 0.095 ppm DF = 1024 0.055 ppm DF = 4096 0.03 ppm DF = 16384 0.02 ppm INL Integral Linearity Error (Note 7) l –3.5 0.5 3.5 ppm ZSE Zero-Scale Error (Note 9) l –13 0 13 ppm Zero-Scale Error Drift ±14 ppb/°C FSE Full-Scale Error (Note 9) l –100 ±10 100 ppm Full-Scale Error Drift ±0.05 ppm/°C
