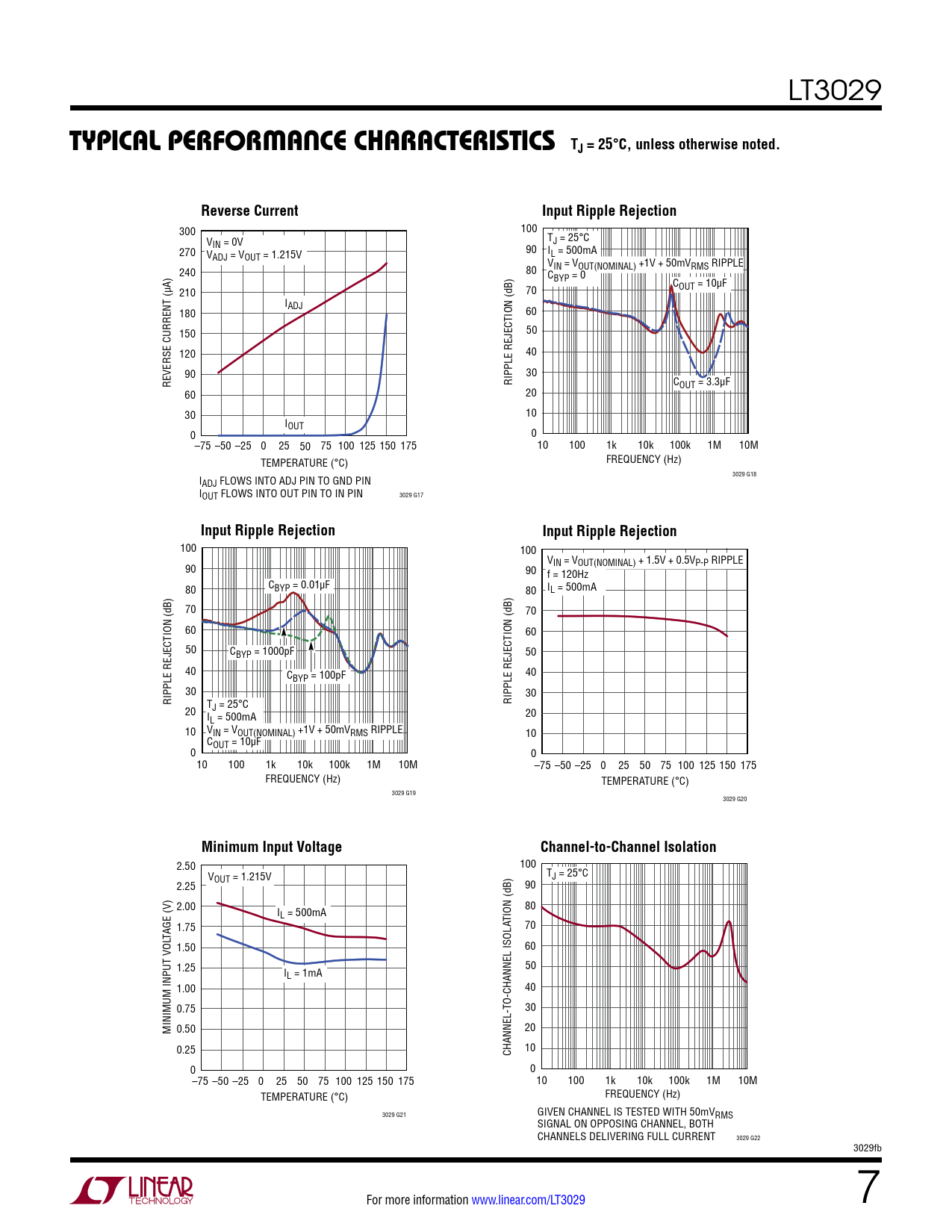

Typical perForMance characTerisTics TJ = 25°C, unless otherwise noted. Reverse Current. Input Ripple Rejection
