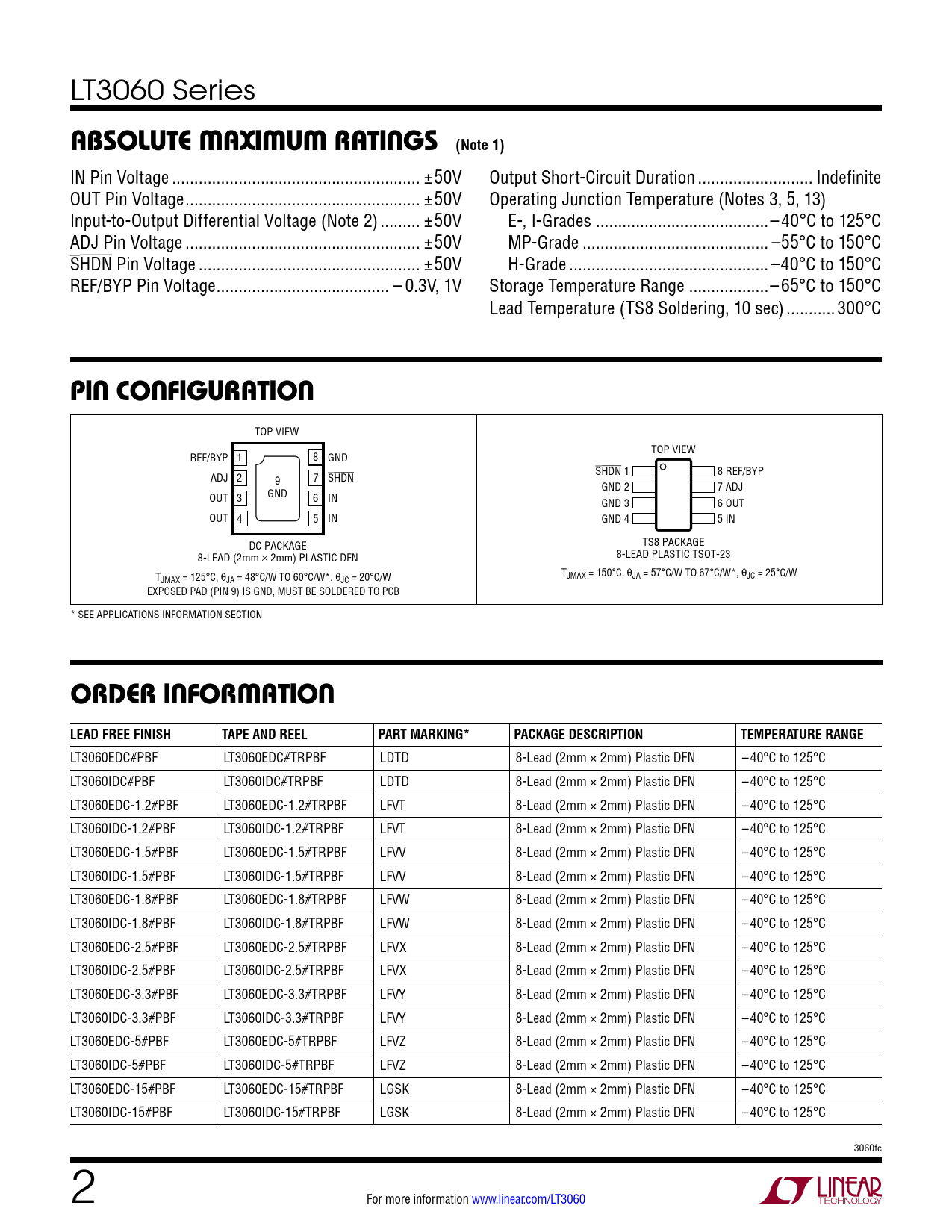

LT3060 Series
absoluTe MaxiMuM raTings (Note 1)
IN Pin Voltage .. ±50V Output Short-Circuit Duration .. Indefinite OUT Pin Voltage ... ±50V Operating Junction Temperature (Notes 3, 5, 13) Input-to-Output Differential Voltage (Note 2) ... ±50V E-, I-Grades ...–40°C to 125°C ADJ Pin Voltage ... ±50V MP-Grade .. –55°C to 150°C SHDN Pin Voltage .. ±50V H-Grade ... –40°C to 150°C REF/BYP Pin Voltage ... – 0.3V, 1V Storage Temperature Range ..–65°C to 150°C Lead Temperature (TS8 Soldering, 10 sec) ...300°C
pin conFiguraTion
TOP VIEW TOP VIEW REF/BYP 1 8 GND SHDN 1 8 REF/BYP ADJ 2 7 SHDN 9 GND 2 7 ADJ OUT GND 3 6 IN GND 3 6 OUT OUT 4 5 IN GND 4 5 IN DC PACKAGE TS8 PACKAGE 8-LEAD (2mm × 2mm) PLASTIC DFN 8-LEAD PLASTIC TSOT-23 T T JMAX = 125°C, θJA = 48°C/W TO 60°C/W*, θJC = 20°C/W JMAX = 150°C, θJA = 57°C/W TO 67°C/W*, θJC = 25°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB * SEE APPLICATIONS INFORMATION SECTION
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3060EDC#PBF LT3060EDC#TRPBF LDTD 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC#PBF LT3060IDC#TRPBF LDTD 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-1.2#PBF LT3060EDC-1.2#TRPBF LFVT 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-1.2#PBF LT3060IDC-1.2#TRPBF LFVT 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-1.5#PBF LT3060EDC-1.5#TRPBF LFVV 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-1.5#PBF LT3060IDC-1.5#TRPBF LFVV 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-1.8#PBF LT3060EDC-1.8#TRPBF LFVW 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-1.8#PBF LT3060IDC-1.8#TRPBF LFVW 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-2.5#PBF LT3060EDC-2.5#TRPBF LFVX 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-2.5#PBF LT3060IDC-2.5#TRPBF LFVX 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-3.3#PBF LT3060EDC-3.3#TRPBF LFVY 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-3.3#PBF LT3060IDC-3.3#TRPBF LFVY 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-5#PBF LT3060EDC-5#TRPBF LFVZ 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-5#PBF LT3060IDC-5#TRPBF LFVZ 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060EDC-15#PBF LT3060EDC-15#TRPBF LGSK 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C LT3060IDC-15#PBF LT3060IDC-15#TRPBF LGSK 8-Lead (2mm × 2mm) Plastic DFN –40°C to 125°C 3060fc 2 For more information www.linear.com/LT3060 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Application Revision History Typical Application Related Parts
