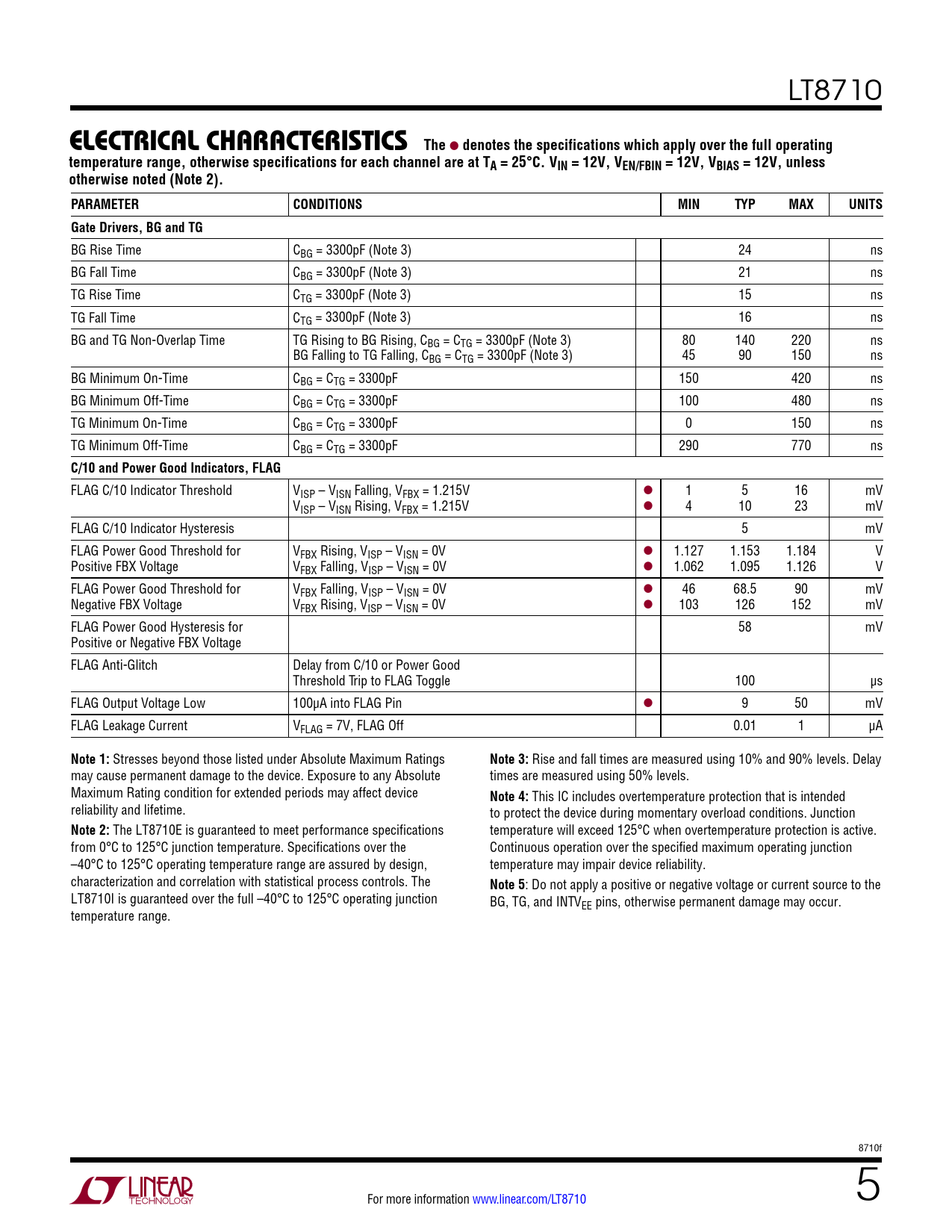

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT8710
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications for each channel are at TA = 25°C. VIN = 12V, VEN/FBIN = 12V, VBIAS = 12V, unless otherwise noted (Note 2). PARAMETER CONDITIONS MIN TYP MAX UNITS Gate Drivers, BG and TG
BG Rise Time CBG = 3300pF (Note 3) 24 ns BG Fall Time CBG = 3300pF (Note 3) 21 ns TG Rise Time CTG = 3300pF (Note 3) 15 ns TG Fall Time CTG = 3300pF (Note 3) 16 ns BG and TG Non-Overlap Time TG Rising to BG Rising, CBG = CTG = 3300pF (Note 3) 80 140 220 ns BG Falling to TG Falling, CBG = CTG = 3300pF (Note 3) 45 90 150 ns BG Minimum On-Time CBG = CTG = 3300pF 150 420 ns BG Minimum Off-Time CBG = CTG = 3300pF 100 480 ns TG Minimum On-Time CBG = CTG = 3300pF 0 150 ns TG Minimum Off-Time CBG = CTG = 3300pF 290 770 ns
C/10 and Power Good Indicators, FLAG
FLAG C/10 Indicator Threshold VISP – VISN Falling, VFBX = 1.215V l 1 5 16 mV VISP – VISN Rising, VFBX = 1.215V l 4 10 23 mV FLAG C/10 Indicator Hysteresis 5 mV FLAG Power Good Threshold for VFBX Rising, VISP – VISN = 0V l 1.127 1.153 1.184 V Positive FBX Voltage VFBX Falling, VISP – VISN = 0V l 1.062 1.095 1.126 V FLAG Power Good Threshold for VFBX Falling, VISP – VISN = 0V l 46 68.5 90 mV Negative FBX Voltage VFBX Rising, VISP – VISN = 0V l 103 126 152 mV FLAG Power Good Hysteresis for 58 mV Positive or Negative FBX Voltage FLAG Anti-Glitch Delay from C/10 or Power Good Threshold Trip to FLAG Toggle 100 µs FLAG Output Voltage Low 100µA into FLAG Pin l 9 50 mV FLAG Leakage Current VFLAG = 7V, FLAG Off 0.01 1 µA
