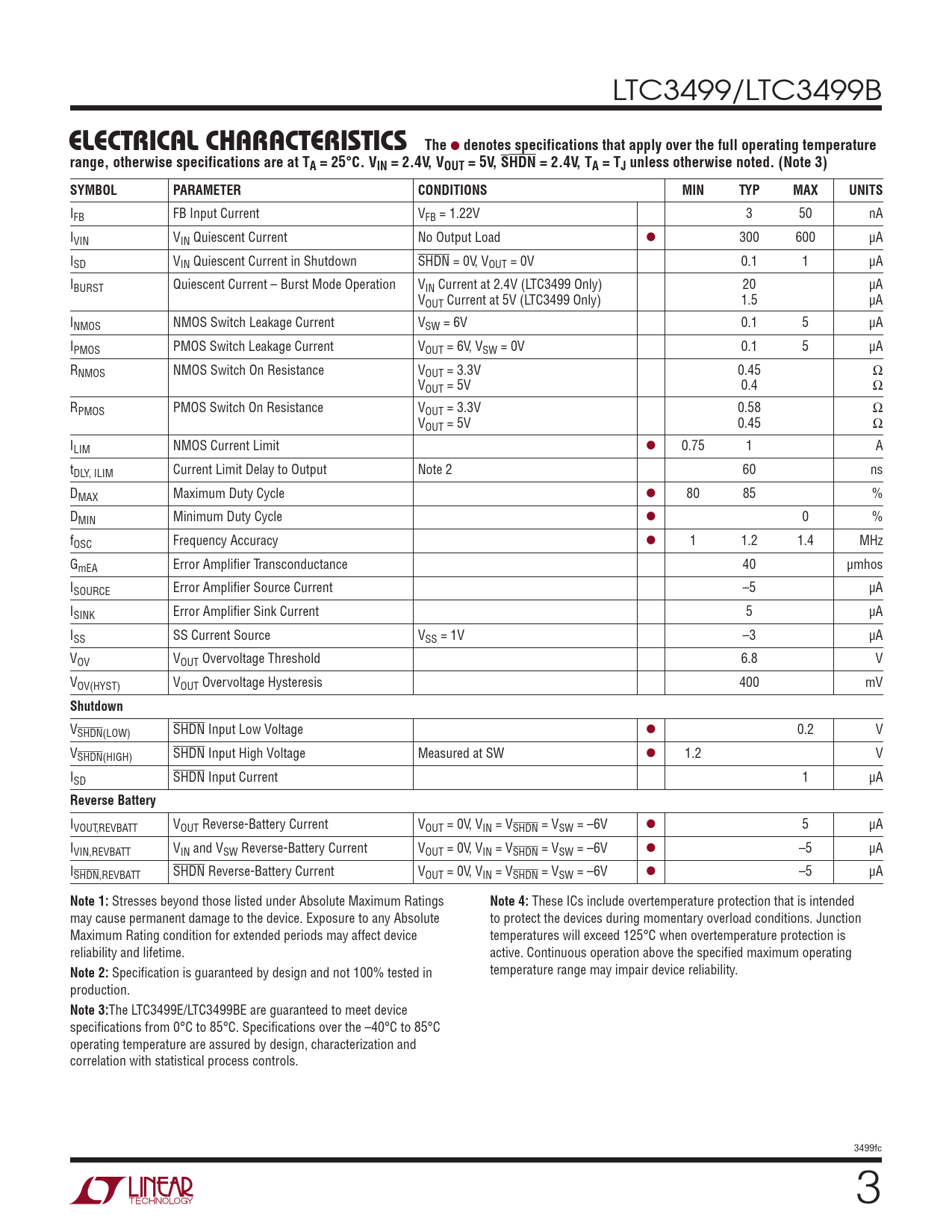

LTC3499/LTC3499B
ELECTRICAL CHARACTERISTICS The
l
denotes specifications that apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 2.4V, VOUT = 5V, SHDN = 2.4V, TA = TJ unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IFB FB Input Current VFB = 1.22V 3 50 nA IVIN VIN Quiescent Current No Output Load l 300 600 µA ISD VIN Quiescent Current in Shutdown SHDN = 0V, VOUT = 0V 0.1 1 µA IBURST Quiescent Current – Burst Mode Operation VIN Current at 2.4V (LTC3499 Only) 20 µA VOUT Current at 5V (LTC3499 Only) 1.5 µA INMOS NMOS Switch Leakage Current VSW = 6V 0.1 5 µA IPMOS PMOS Switch Leakage Current VOUT = 6V, VSW = 0V 0.1 5 µA RNMOS NMOS Switch On Resistance VOUT = 3.3V 0.45 Ω VOUT = 5V 0.4 Ω RPMOS PMOS Switch On Resistance VOUT = 3.3V 0.58 Ω VOUT = 5V 0.45 Ω ILIM NMOS Current Limit l 0.75 1 A tDLY, ILIM Current Limit Delay to Output Note 2 60 ns DMAX Maximum Duty Cycle l 80 85 % DMIN Minimum Duty Cycle l 0 % fOSC Frequency Accuracy l 1 1.2 1.4 MHz GmEA Error Amplifier Transconductance 40 µmhos ISOURCE Error Amplifier Source Current –5 µA ISINK Error Amplifier Sink Current 5 µA ISS SS Current Source VSS = 1V –3 µA VOV VOUT Overvoltage Threshold 6.8 V VOV(HYST) VOUT Overvoltage Hysteresis 400 mV
Shutdown
VSHDN(LOW) SHDN Input Low Voltage l 0.2 V VSHDN(HIGH) SHDN Input High Voltage Measured at SW l 1.2 V ISD SHDN Input Current 1 µA
Reverse Battery
IVOUT,REVBATT VOUT Reverse-Battery Current VOUT = 0V, VIN = VSHDN = VSW = –6V l 5 µA IVIN,REVBATT VIN and VSW Reverse-Battery Current VOUT = 0V, VIN = VSHDN = VSW = –6V l –5 µA ISHDN,REVBATT SHDN Reverse-Battery Current VOUT = 0V, VIN = VSHDN = VSW = –6V l –5 µA
