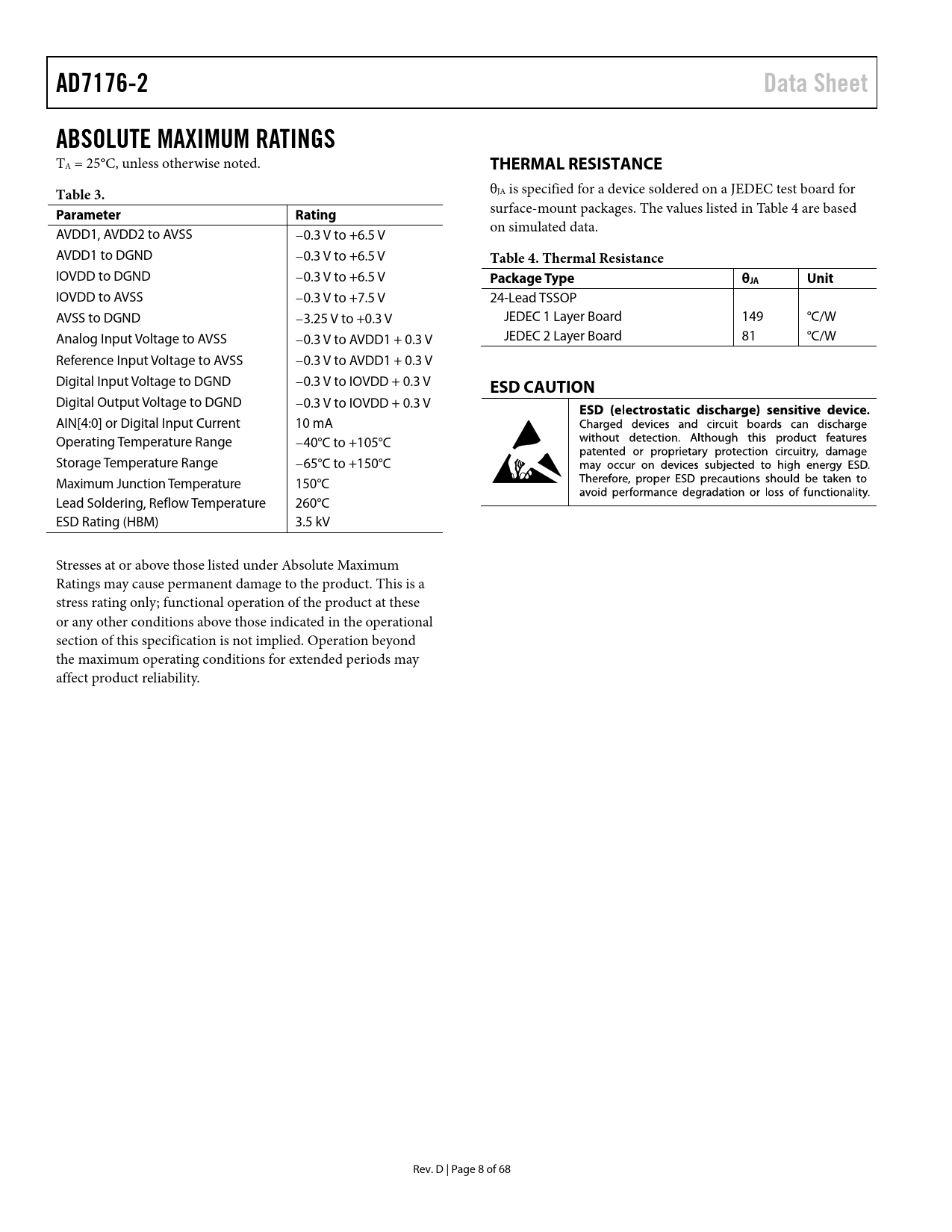

AD7176-2 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 3.
θJA is specified for a device soldered on a JEDEC test board for surface-mount packages. The values listed in Table 4 are based
Parameter Rating
on simulated data. AVDD1, AVDD2 to AVSS −0.3 V to +6.5 V AVDD1 to DGND −0.3 V to +6.5 V
Table 4. Thermal Resistance
IOVDD to DGND −0.3 V to +6.5 V
Package Type θJA Unit
IOVDD to AVSS −0.3 V to +7.5 V 24-Lead TSSOP AVSS to DGND −3.25 V to +0.3 V JEDEC 1 Layer Board 149 °C/W Analog Input Voltage to AVSS −0.3 V to AVDD1 + 0.3 V JEDEC 2 Layer Board 81 °C/W Reference Input Voltage to AVSS −0.3 V to AVDD1 + 0.3 V Digital Input Voltage to DGND −0.3 V to IOVDD + 0.3 V
ESD CAUTION
Digital Output Voltage to DGND −0.3 V to IOVDD + 0.3 V AIN[4:0] or Digital Input Current 10 mA Operating Temperature Range −40°C to +105°C Storage Temperature Range −65°C to +150°C Maximum Junction Temperature 150°C Lead Soldering, Reflow Temperature 260°C ESD Rating (HBM) 3.5 kV Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. D | Page 8 of 68 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING CHARACTERISTICS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS NOISE PERFORMANCE AND RESOLUTION GETTING STARTED POWER SUPPLIES DIGITAL COMMUNICATION Accessing the ADC Register Map AD7176-2 RESET CONFIGURATION OVERVIEW Channel Configuration Channel Registers ADC Setups Setup Configuration Registers Filter Configuration Registers Offset Registers Gain Registers ADC Mode and Interface Mode Configuration ADC Mode Register Interface Mode Register Understanding Configuration Flexibility CIRCUIT DESCRIPTION ANALOG INPUT Fully Differential Inputs Pseudo Differential Inputs DRIVER AMPLIFIERS AD8475 AD8656 ADA4940-1/ADA4940-2 AD7176-2 REFERENCE External Reference Internal Reference AD7176-2 CLOCK SOURCE Internal Oscillator External Crystal External Clock DIGITAL FILTERS SINC5 + SINC1 FILTER SINC3 FILTER SINGLE CYCLE SETTLING ENHANCED 50 HZ AND 60 HZ REJECTION FILTERS OPERATING MODES CONTINUOUS CONVERSION MODE CONTINUOUS READ MODE SINGLE CONVERSION MODE STANDBY AND POWER-DOWN MODES CALIBRATION MODES DIGITAL INTERFACE CHECKSUM PROTECTION CRC CALCULATION Polynomial Example of a Polynomial CRC Calculation—24-Bit Word: 0x654321 (Eight Command Bits and 16-Bit Data) XOR Calculation Example of an XOR Calculation—24-Bit Word: 0x654321 (Eight Command Bits and 16-Bit Data) INTEGRATED FUNCTIONS GENERAL-PURPOSE I/O EXTERNAL MULTIPLEXER CONTROL DELAY 16-BIT/24-BIT CONVERSIONS SERIAL INTERFACE RESET (DOUT_RESET) SYNCHRONIZATION (SYNC\/ERROR\) ERROR FLAGS ADC_ERROR CRC_ERROR REG_ERROR Pin DATA_STAT IOSTRENTGH GROUNDING AND LAYOUT REGISTER SUMMARY REGISTER DETAILS COMMUNICATIONS REGISTER STATUS REGISTER ADC MODE REGISTER INTERFACE MODE REGISTER REGISTER CHECK DATA REGISTER GPIO CONFIGURATION REGISTER ID REGISTER CHANNEL MAP REGISTER 0 CHANNEL MAP REGISTER 1 CHANNEL MAP REGISTER 2 CHANNEL MAP REGISTER 3 SETUP CONFIGURATION REGISTER 0 SETUP CONFIGURATION REGISTER 1 SETUP CONFIGURATION REGISTER 2 SETUP CONFIGURATION REGISTER 3 FILTER CONFIGURATION REGISTER 0 FILTER CONFIGURATION REGISTER 1 FILTER CONFIGURATION REGISTER 2 FILTER CONFIGURATION REGISTER 3 OFFSET REGISTER 0 OFFSET REGISTER 1 OFFSET REGISTER 2 OFFSET REGISTER 3 GAIN REGISTER 0 GAIN REGISTER 1 GAIN REGISTER 2 GAIN REGISTER 3 OUTLINE DIMENSIONS ORDERING GUIDE
