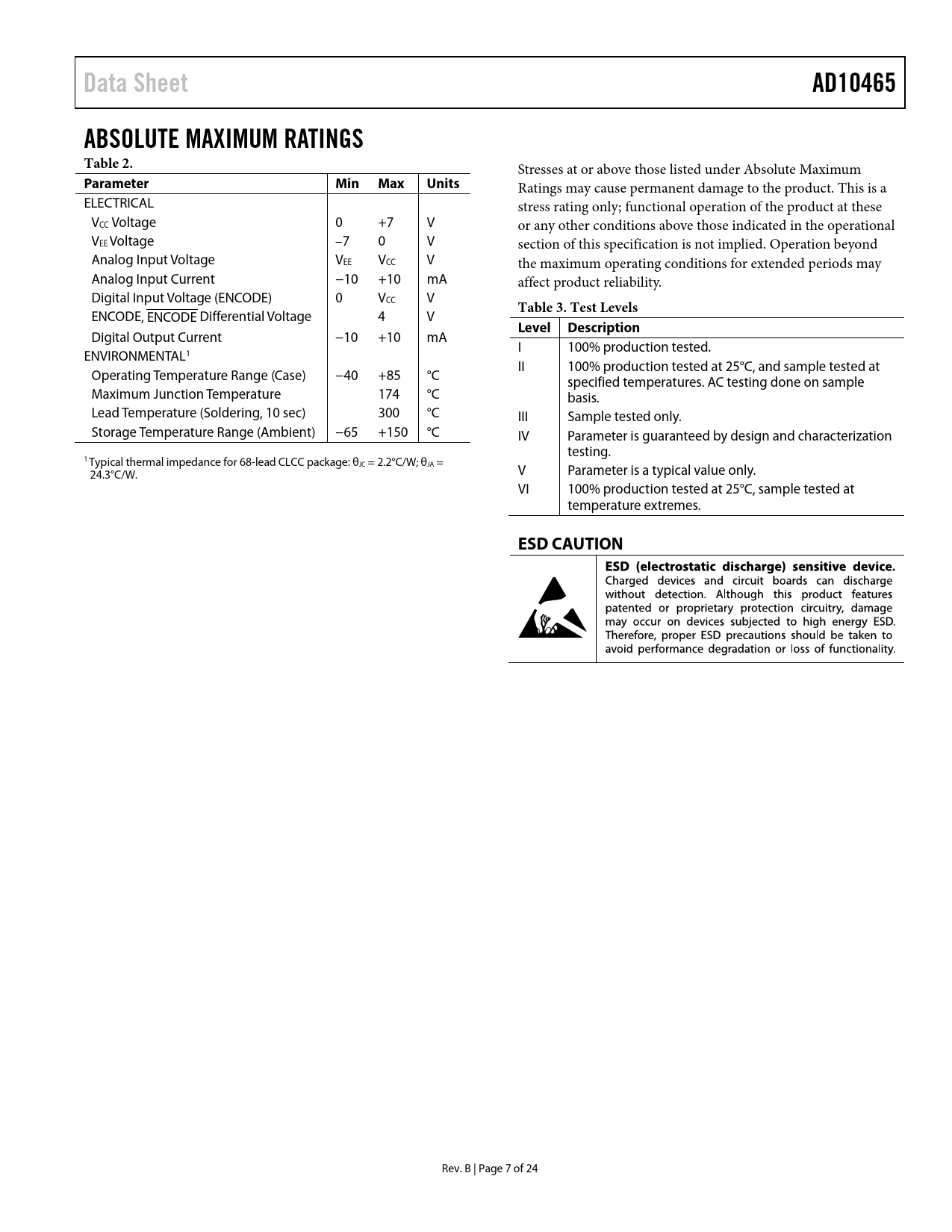

Data Sheet. AD10465. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Min Max. Units. Table 3. Test Levels. Level Description. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet AD10465 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Min Max Units
Ratings may cause permanent damage to the product. This is a ELECTRICAL stress rating only; functional operation of the product at these VCC Voltage 0 +7 V or any other conditions above those indicated in the operational VEE Voltage –7 0 V section of this specification is not implied. Operation beyond Analog Input Voltage VEE VCC V the maximum operating conditions for extended periods may Analog Input Current −10 +10 mA affect product reliability. Digital Input Voltage (ENCODE) 0 VCC V
Table 3. Test Levels
ENCODE, ENCODE Differential Voltage 4 V
Level Description
Digital Output Current −10 +10 mA I 100% production tested. ENVIRONMENTAL1 II 100% production tested at 25°C, and sample tested at Operating Temperature Range (Case) −40 +85 °C specified temperatures. AC testing done on sample Maximum Junction Temperature 174 °C basis. Lead Temperature (Soldering, 10 sec) 300 °C III Sample tested only. Storage Temperature Range (Ambient) −65 +150 °C IV Parameter is guaranteed by design and characterization testing. 1 Typical thermal impedance for 68-lead CLCC package: θJC = 2.2°C/W; θJA = 24.3°C/W. V Parameter is a typical value only. VI 100% production tested at 25°C, sample tested at temperature extremes.
ESD CAUTION
