Pages / Page24 / 6 — AD7476/AD7477/AD7478. Parameter. A Version. ,2 S. Version1,2. Unit. Test …
RevisionF
File Format / SizePDF / 341 Kb
Document LanguageEnglish

AD7476/AD7477/AD7478. Parameter. A Version. ,2 S. Version1,2. Unit. Test Conditions/Comments

AD7476/AD7477/AD7478 Parameter A Version ,2 S Version1,2 Unit Test Conditions/Comments

Model Line for this Datasheet

Text Version of Document

link to page 6 link to page 6 link to page 12 link to page 12
AD7476/AD7477/AD7478 Parameter A Version
1
,2 S Version1,2 Unit Test Conditions/Comments

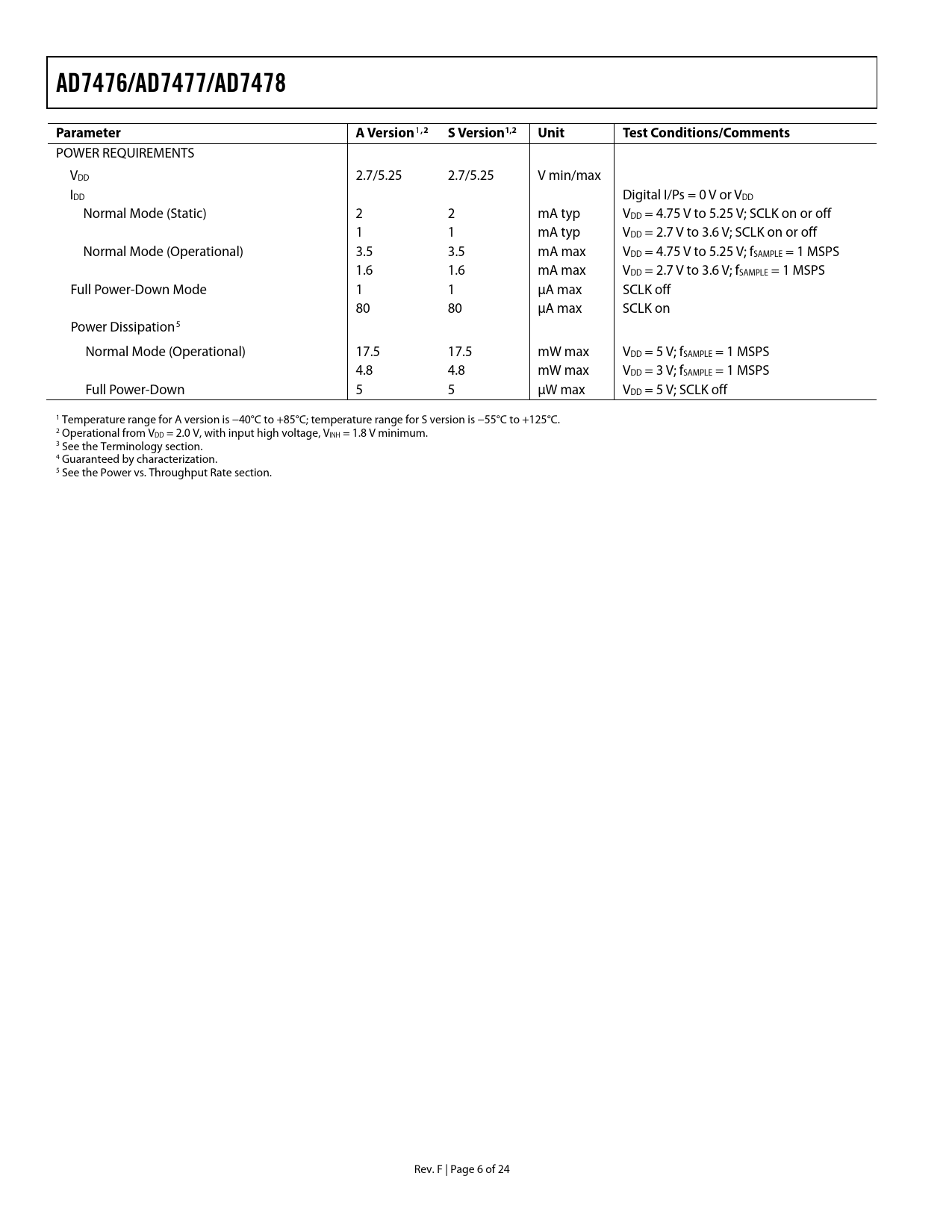

POWER REQUIREMENTS VDD 2.7/5.25 2.7/5.25 V min/max IDD Digital I/Ps = 0 V or VDD Normal Mode (Static) 2 2 mA typ VDD = 4.75 V to 5.25 V; SCLK on or off 1 1 mA typ VDD = 2.7 V to 3.6 V; SCLK on or off Normal Mode (Operational) 3.5 3.5 mA max VDD = 4.75 V to 5.25 V; fSAMPLE = 1 MSPS 1.6 1.6 mA max VDD = 2.7 V to 3.6 V; fSAMPLE = 1 MSPS Full Power-Down Mode 1 1 μA max SCLK off 80 80 μA max SCLK on Power Dissipation5 Normal Mode (Operational) 17.5 17.5 mW max VDD = 5 V; fSAMPLE = 1 MSPS 4.8 4.8 mW max VDD = 3 V; fSAMPLE = 1 MSPS Full Power-Down 5 5 μW max VDD = 5 V; SCLK off 1 Temperature range for A version is −40°C to +85°C; temperature range for S version is −55°C to +125°C. 2 Operational from VDD = 2.0 V, with input high voltage, VINH = 1.8 V minimum. 3 See the Terminology section. 4 Guaranteed by characterization. 5 See the Power vs. Throughput Rate section. Rev. F | Page 6 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS AD7476 SPECIFICATIONS AD7477 SPECIFICATIONS AD7478 SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION ADC TRANSFER FUNCTION TYPICAL CONNECTION DIAGRAM Analog Input Digital Input MODES OF OPERATION Normal Mode Power-Down Mode Power-Up Time POWER VS. THROUGHPUT RATE SERIAL INTERFACE MICROPROCESSOR INTERFACING AD7476/AD7477/AD7478 to TMS320C5x/C54x Interface AD7476/AD7477/AD7478 to ADSP-21xx Interface AD7476/AD7477/AD7478 to DSP56xxx Interface AD7476/AD7477/AD7478 to MC68HC16 Interface OUTLINE DIMENSIONS ORDERING GUIDE
