Datasheet ADL5567 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 4.3 GHz, Ultrahigh Dynamic Range, Dual Differential Amplifier |
| Pages / Page | 25 / 8 — ADL5567. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Revision | A |
| File Format / Size | PDF / 869 Kb |
| Document Language | English |

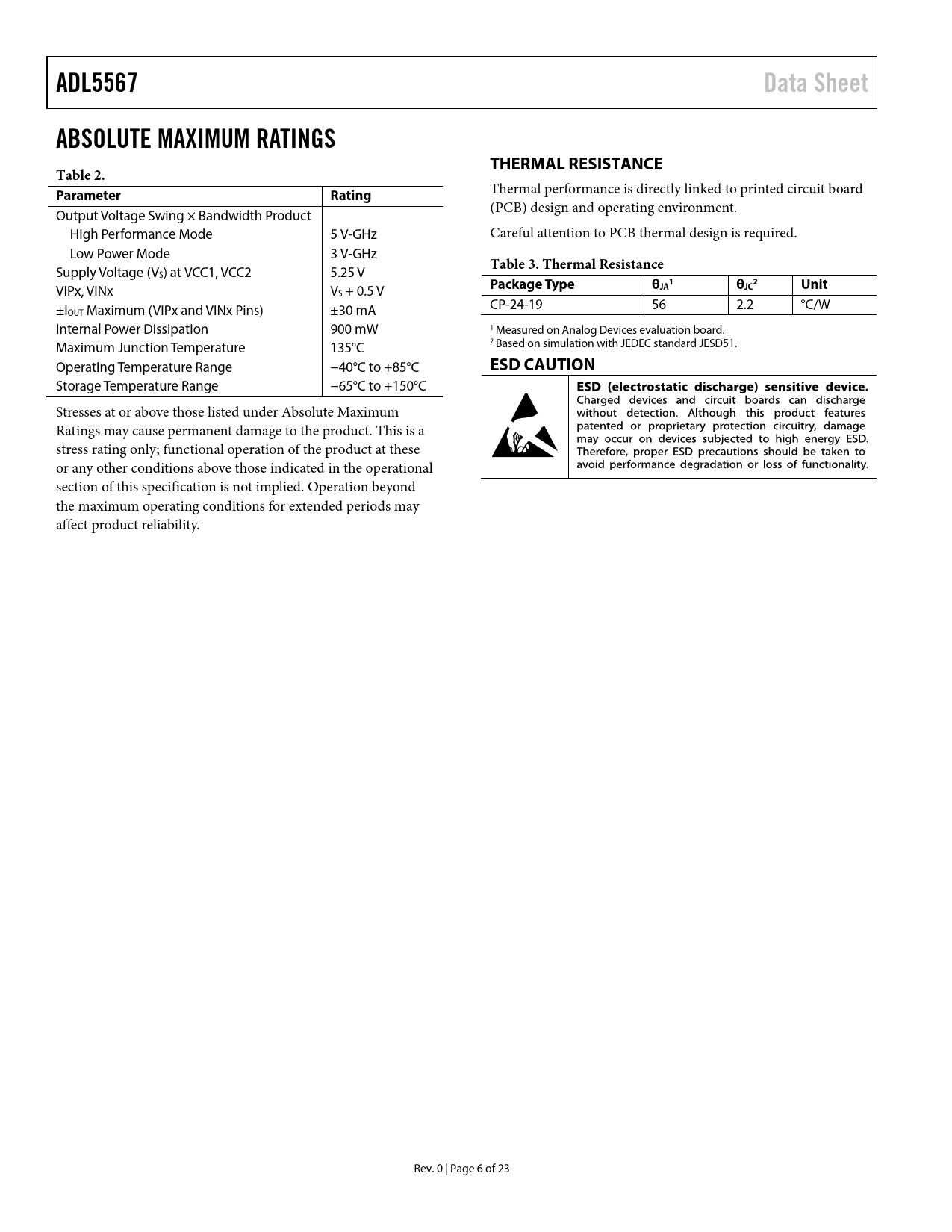

ADL5567. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
ADL5567 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
Thermal performance is directly linked to printed circuit board Output Voltage Swing × Bandwidth Product (PCB) design and operating environment. High Performance Mode 5 V-GHz Careful attention to PCB thermal design is required. Low Power Mode 3 V-GHz Supply Voltage (V
Table 3. Thermal Resistance
S) at VCC1, VCC2 5.25 V
1 2
VIPx, VINx V
Package Type θJA θJC Unit
S + 0.5 V ±I CP-24-19 56 2.2 °C/W OUT Maximum (VIPx and VINx Pins) ±30 mA Internal Power Dissipation 900 mW 1 Measured on Analog Devices evaluation board. Maximum Junction Temperature 135°C 2 Based on simulation with JEDEC standard JESD51. Operating Temperature Range −40°C to +85°C
