Datasheet ADA4930-1-EP (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Ultralow Noise Drivers for Low Voltage ADCs |
| Pages / Page | 12 / 9 — Enhanced Product. ADA4930-1-EP. OUTLINE DIMENSIONS. 3.10. 0.30. 3.00 SQ. … |
| Revision | A |
| File Format / Size | PDF / 202 Kb |
| Document Language | English |
Enhanced Product. ADA4930-1-EP. OUTLINE DIMENSIONS. 3.10. 0.30. 3.00 SQ. 0.23. 2.90. PIN 1. 0.18. INDICATOR. 0.50. BSC. EXPOSED. 1.45. PAD
Model Line for this Datasheet
Text Version of Document
link to page 9

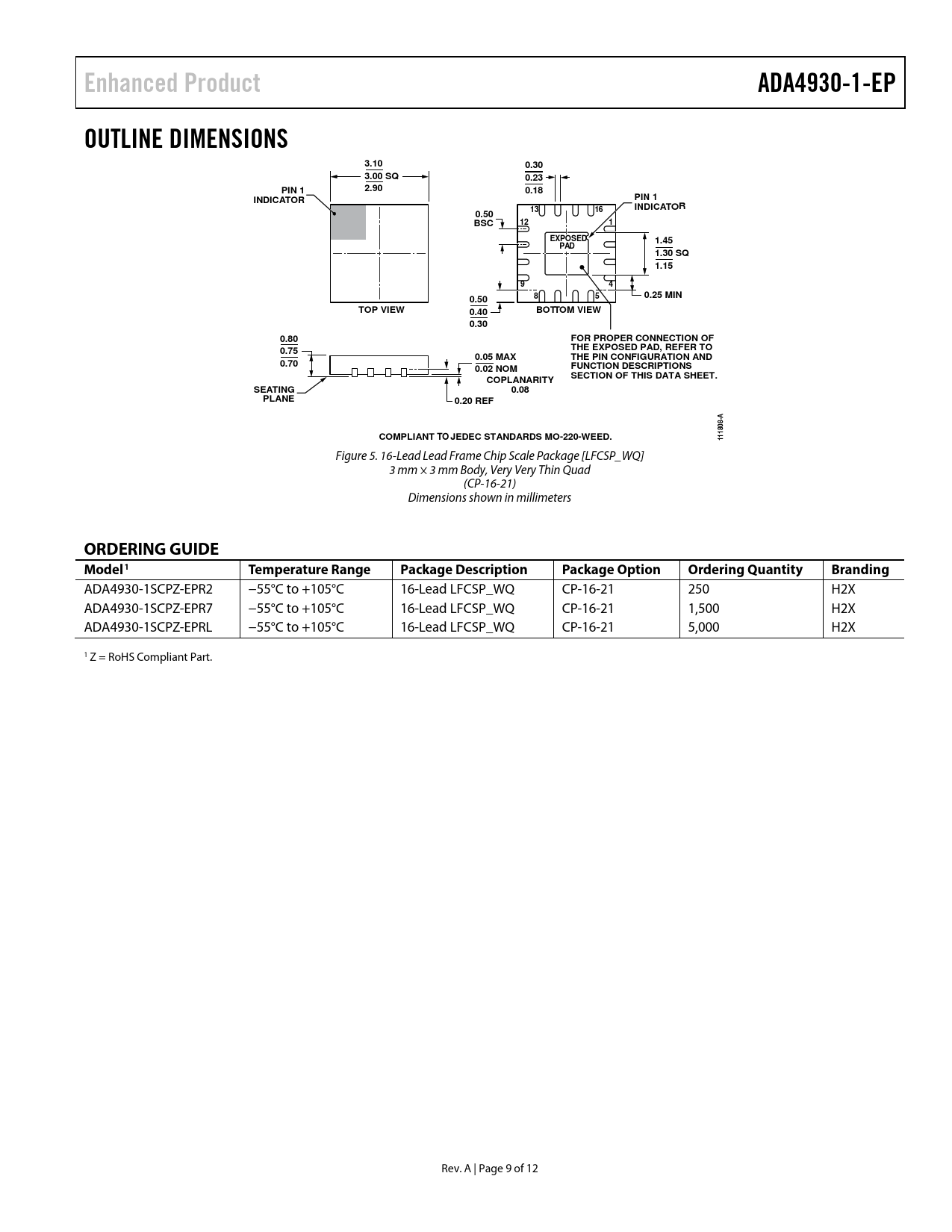

Enhanced Product ADA4930-1-EP OUTLINE DIMENSIONS 3.10 0.30 3.00 SQ 0.23 2.90 PIN 1 0.18 PIN 1 INDICATOR 13 16 INDICATOR 0.50 12 1 BSC EXPOSED 1.45 PAD 1.30 SQ 1.15 9 4 8 5 0.50 0.25 MIN TOP VIEW BOTTOM VIEW 0.40 0.30 0.80 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO 0.75 0.05 MAX THE PIN CONFIGURATION AND 0.70 0.02 NOM FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. COPLANARITY SEATING 0.08 PLANE 0.20 REF A COMPLIANT TO JEDEC STANDARDS MO-220-WEED. 111808-
Figure 5. 16-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 3 mm × 3 mm Body, Very Very Thin Quad (CP-16-21) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Ordering Quantity Branding
ADA4930-1SCPZ-EPR2 −55°C to +105°C 16-Lead LFCSP_WQ CP-16-21 250 H2X ADA4930-1SCPZ-EPR7 −55°C to +105°C 16-Lead LFCSP_WQ CP-16-21 1,500 H2X ADA4930-1SCPZ-EPRL −55°C to +105°C 16-Lead LFCSP_WQ CP-16-21 5,000 H2X 1 Z = RoHS Compliant Part. Rev. A | Page 9 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagrams Revision History Specifications 3.3 V Operation 3.3 V VOCM to VO, cm Performance 3.3 V General Performance 5 V Operation 5 V VOCM to VO, cm Performance 5 V General Performance Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Ordering Guide
