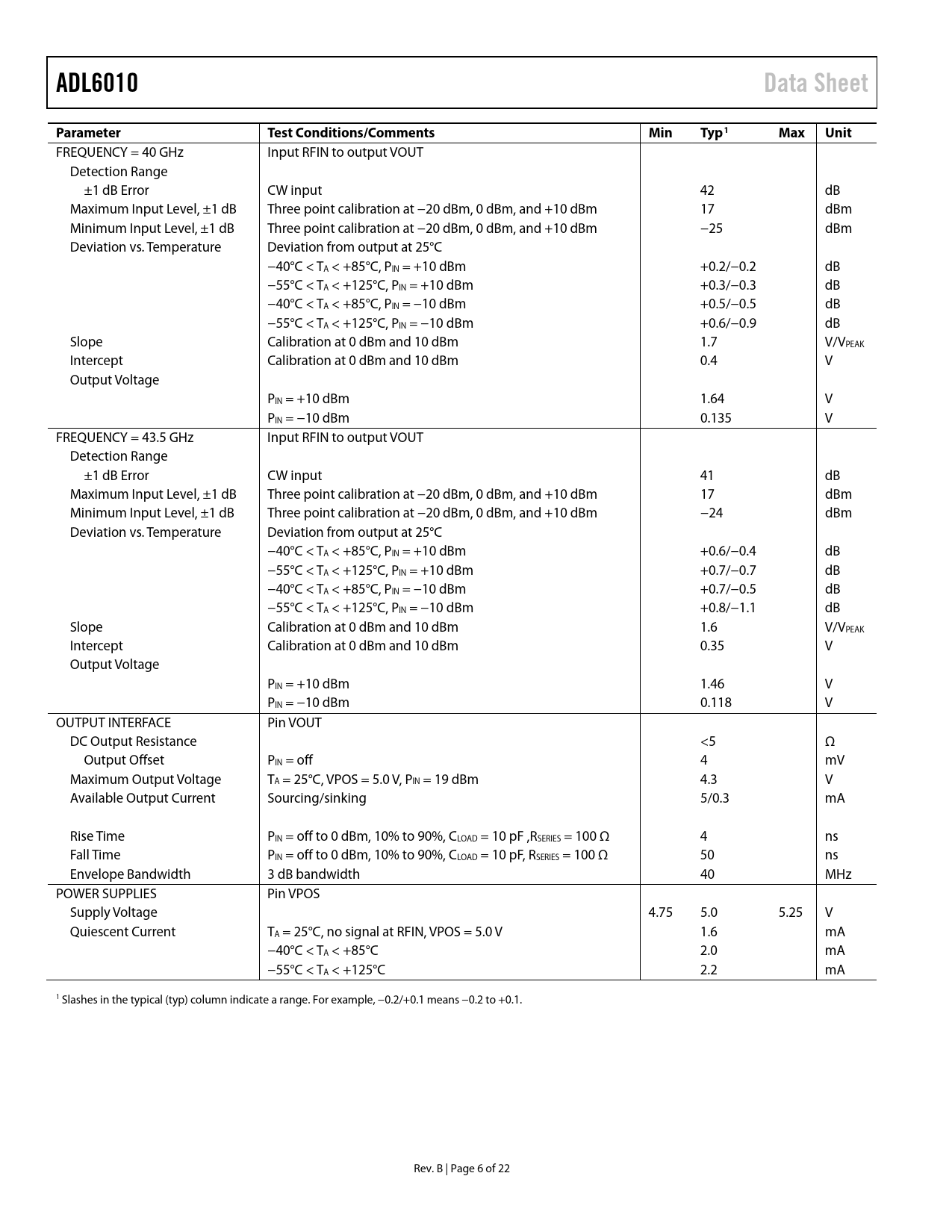

ADL6010Data SheetParameterTest Conditions/CommentsMinTyp1MaxUnit FREQUENCY = 40 GHz Input RFIN to output VOUT Detection Range ±1 dB Error CW input 42 dB Maximum Input Level, ±1 dB Three point calibration at −20 dBm, 0 dBm, and +10 dBm 17 dBm Minimum Input Level, ±1 dB Three point calibration at −20 dBm, 0 dBm, and +10 dBm −25 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C, PIN = +10 dBm +0.2/−0.2 dB −55°C < TA < +125°C, PIN = +10 dBm +0.3/−0.3 dB −40°C < TA < +85°C, PIN = −10 dBm +0.5/−0.5 dB −55°C < TA < +125°C, PIN = −10 dBm +0.6/−0.9 dB Slope Calibration at 0 dBm and 10 dBm 1.7 V/VPEAK Intercept Calibration at 0 dBm and 10 dBm 0.4 V Output Voltage PIN = +10 dBm 1.64 V PIN = −10 dBm 0.135 V FREQUENCY = 43.5 GHz Input RFIN to output VOUT Detection Range ±1 dB Error CW input 41 dB Maximum Input Level, ±1 dB Three point calibration at −20 dBm, 0 dBm, and +10 dBm 17 dBm Minimum Input Level, ±1 dB Three point calibration at −20 dBm, 0 dBm, and +10 dBm −24 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C, PIN = +10 dBm +0.6/−0.4 dB −55°C < TA < +125°C, PIN = +10 dBm +0.7/−0.7 dB −40°C < TA < +85°C, PIN = −10 dBm +0.7/−0.5 dB −55°C < TA < +125°C, PIN = −10 dBm +0.8/−1.1 dB Slope Calibration at 0 dBm and 10 dBm 1.6 V/VPEAK Intercept Calibration at 0 dBm and 10 dBm 0.35 V Output Voltage PIN = +10 dBm 1.46 V PIN = −10 dBm 0.118 V OUTPUT INTERFACE Pin VOUT DC Output Resistance <5 Ω Output Offset PIN = off 4 mV Maximum Output Voltage TA = 25°C, VPOS = 5.0 V, PIN = 19 dBm 4.3 V Available Output Current Sourcing/sinking 5/0.3 mA Rise Time PIN = off to 0 dBm, 10% to 90%, CLOAD = 10 pF ,RSERIES = 100 Ω 4 ns Fall Time PIN = off to 0 dBm, 10% to 90%, CLOAD = 10 pF, RSERIES = 100 Ω 50 ns Envelope Bandwidth 3 dB bandwidth 40 MHz POWER SUPPLIES Pin VPOS Supply Voltage 4.75 5.0 5.25 V Quiescent Current TA = 25°C, no signal at RFIN, VPOS = 5.0 V 1.6 mA −40°C < TA < +85°C 2.0 mA −55°C < TA < +125°C 2.2 mA 1 Slashes in the typical (typ) column indicate a range. For example, −0.2/+0.1 means −0.2 to +0.1. Rev. B | Page 6 of 22 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS MEASUREMENT SETUPS THEORY OF OPERATION BASIC CONNECTIONS PCB LAYOUT RECOMMENDATIONS SYSTEM CALIBRATION AND ERROR CALCULATION EFFECT OF A CAPACITAVE LOAD ON RISE TIME AND FALL TIME EVALUATION BOARD EVALUATION BOARD ASSEMBLY DRAWINGS OUTLINE DIMENSIONS ORDERING GUIDE
