HMC813. SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA). WITH LIMITED RF OUTPUT, 1 - 26 GHz. Pad Descriptions
Model Line for this Datasheet
Text Version of Document
HMC813
v02.0913
SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA) WITH LIMITED RF OUTPUT, 1 - 26 GHz Pad Descriptions

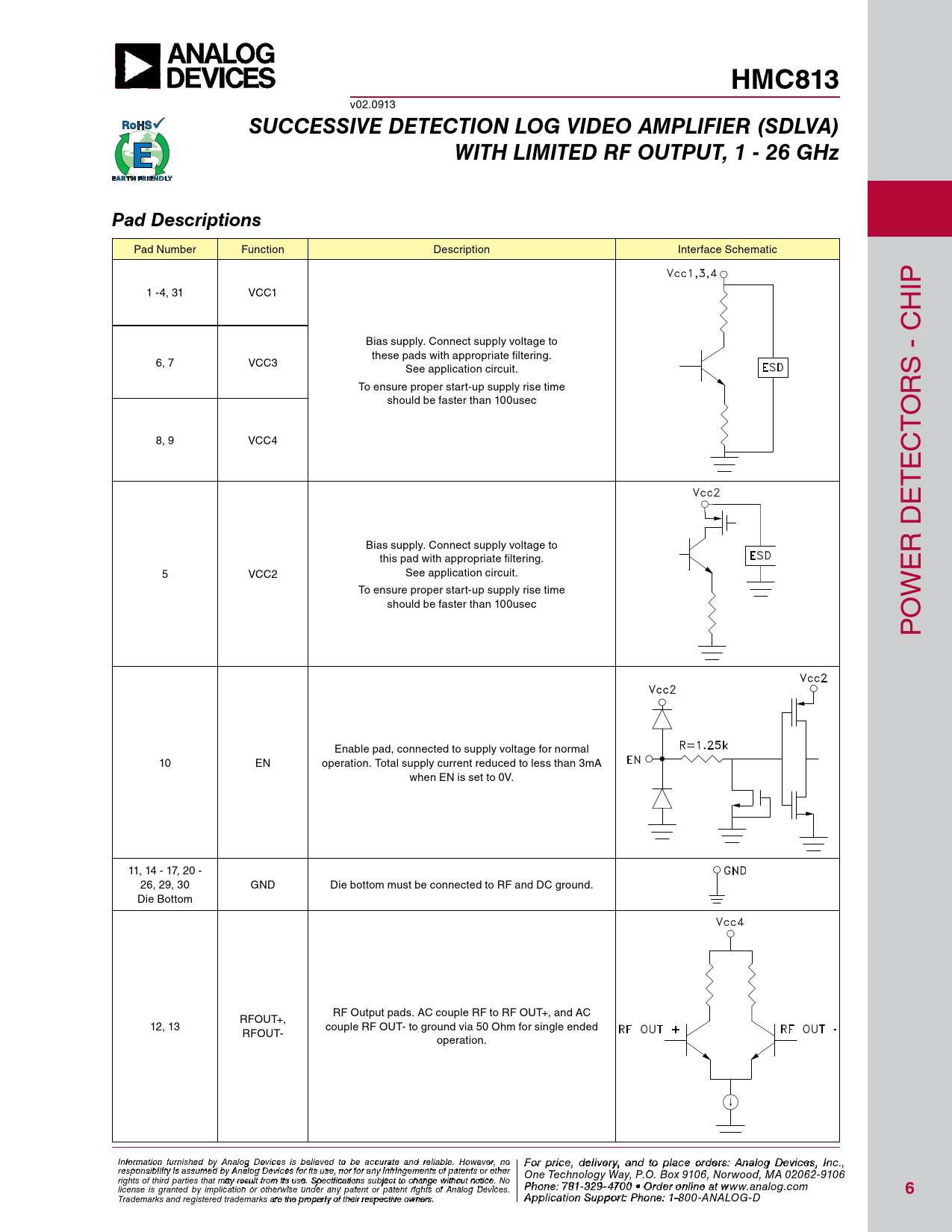

Pad Number Function Description Interface Schematic 1 -4, 31 VCC1 IP H C Bias supply. Connect supply voltage to these pads with appropriate filtering. - 6, 7 VCC3 See application circuit. To ensure proper start-up supply rise time RS should be faster than 100usec O T 8, 9 VCC4 C TE E D Bias supply. Connect supply voltage to R this pad with appropriate filtering. 5 VCC2 See application circuit. To ensure proper start-up supply rise time WE should be faster than 100usec O P Enable pad, connected to supply voltage for normal 10 EN operation. Total supply current reduced to less than 3mA when EN is set to 0V. 11, 14 - 17, 20 - 26, 29, 30 GND Die bottom must be connected to RF and DC ground. Die Bottom RF Output pads. AC couple RF to RF OUT+, and AC RFOUT+, 12, 13 couple RF OUT- to ground via 50 Ohm for single ended RFOUT- operation. I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
