| Manufacturer | Analog Devices |
| Description | Low Power, 1kHz to 20MHz Resistor Set SOT-23 Oscillator |
| Pages / Page | 12 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| File Format / Size | PDF / 164 Kb |
| Document Language | English |

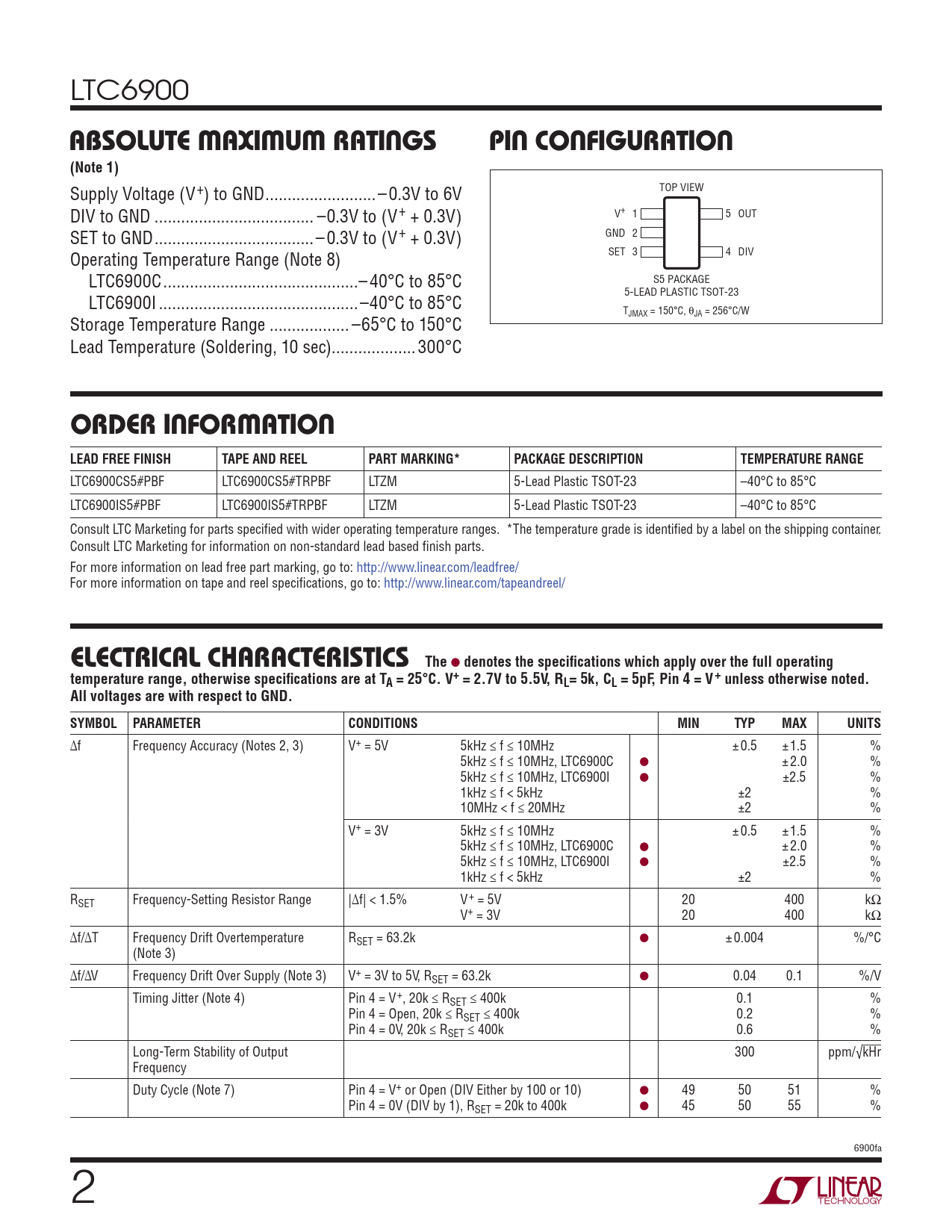

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC6900
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+) to GND ... – 0.3V to 6V TOP VIEW DIV to GND .. –0.3V to (V+ + 0.3V) V+ 1 5 OUT SET to GND .. – 0.3V to (V+ + 0.3V) GND 2 Operating Temperature Range (Note 8) SET 3 4 DIV LTC6900C ..– 40°C to 85°C S5 PACKAGE 5-LEAD PLASTIC TSOT-23 LTC6900I ...–40°C to 85°C TJMAX = 150°C, θJA = 256°C/W Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec)... 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6900CS5#PBF LTC6900CS5#TRPBF LTZM 5-Lead Plastic TSOT-23 –40°C to 85°C LTC6900IS5#PBF LTC6900IS5#TRPBF LTZM 5-Lead Plastic TSOT-23 –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 2.7V to 5.5V, RL= 5k, CL = 5pF, Pin 4 = V + unless otherwise noted. All voltages are with respect to GND. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Δf Frequency Accuracy (Notes 2, 3) V+ = 5V 5kHz ≤ f ≤ 10MHz ± 0.5 ±1.5 % 5kHz ≤ f ≤ 10MHz, LTC6900C ● ± 2.0 % 5kHz ≤ f ≤ 10MHz, LTC6900I ● ±2.5 % 1kHz ≤ f < 5kHz ±2 % 10MHz < f ≤ 20MHz ±2 % V+ = 3V 5kHz ≤ f ≤ 10MHz ± 0.5 ±1.5 % 5kHz ≤ f ≤ 10MHz, LTC6900C ● ± 2.0 % 5kHz ≤ f ≤ 10MHz, LTC6900I ● ±2.5 % 1kHz ≤ f < 5kHz ±2 % RSET Frequency-Setting Resistor Range |Δf| < 1.5% V+ = 5V 20 400 kΩ V+ = 3V 20 400 kΩ Δf/ΔT Frequency Drift Overtemperature RSET = 63.2k ● ± 0.004 %/°C (Note 3) Δf/ΔV Frequency Drift Over Supply (Note 3) V+ = 3V to 5V, RSET = 63.2k ● 0.04 0.1 %/V Timing Jitter (Note 4) Pin 4 = V+, 20k ≤ RSET ≤ 400k 0.1 % Pin 4 = Open, 20k ≤ RSET ≤ 400k 0.2 % Pin 4 = 0V, 20k ≤ RSET ≤ 400k 0.6 % Long-Term Stability of Output 300 ppm/√kHr Frequency Duty Cycle (Note 7) Pin 4 = V+ or Open (DIV Either by 100 or 10) ● 49 50 51 % Pin 4 = 0V (DIV by 1), RSET = 20k to 400k ● 45 50 55 % 6900fa 2
