TYPICAL PERFORMANCE CHARACTERISTICS (TA = 25°C, unless otherwise indicated). Boost Pull-Up Current vs
Model Line for this Datasheet
- LTC4311CDC#PBF LTC4311CDC#TRMPBF LTC4311CDC#TRMPBF LTC4311CDC#TRPBF LTC4311CDC#TRPBF LTC4311CSC6#PBF LTC4311CSC6#TRMPBF LTC4311CSC6#TRMPBF LTC4311CSC6#TRPBF LTC4311CSC6#TRPBF LTC4311IDC#PBF LTC4311IDC#TRMPBF LTC4311IDC#TRMPBF LTC4311IDC#TRPBF LTC4311IDC#TRPBF LTC4311ISC6#PBF LTC4311ISC6#TRMPBF LTC4311ISC6#TRMPBF LTC4311ISC6#TRPBF LTC4311ISC6#TRPBF
Text Version of Document
LTC4311

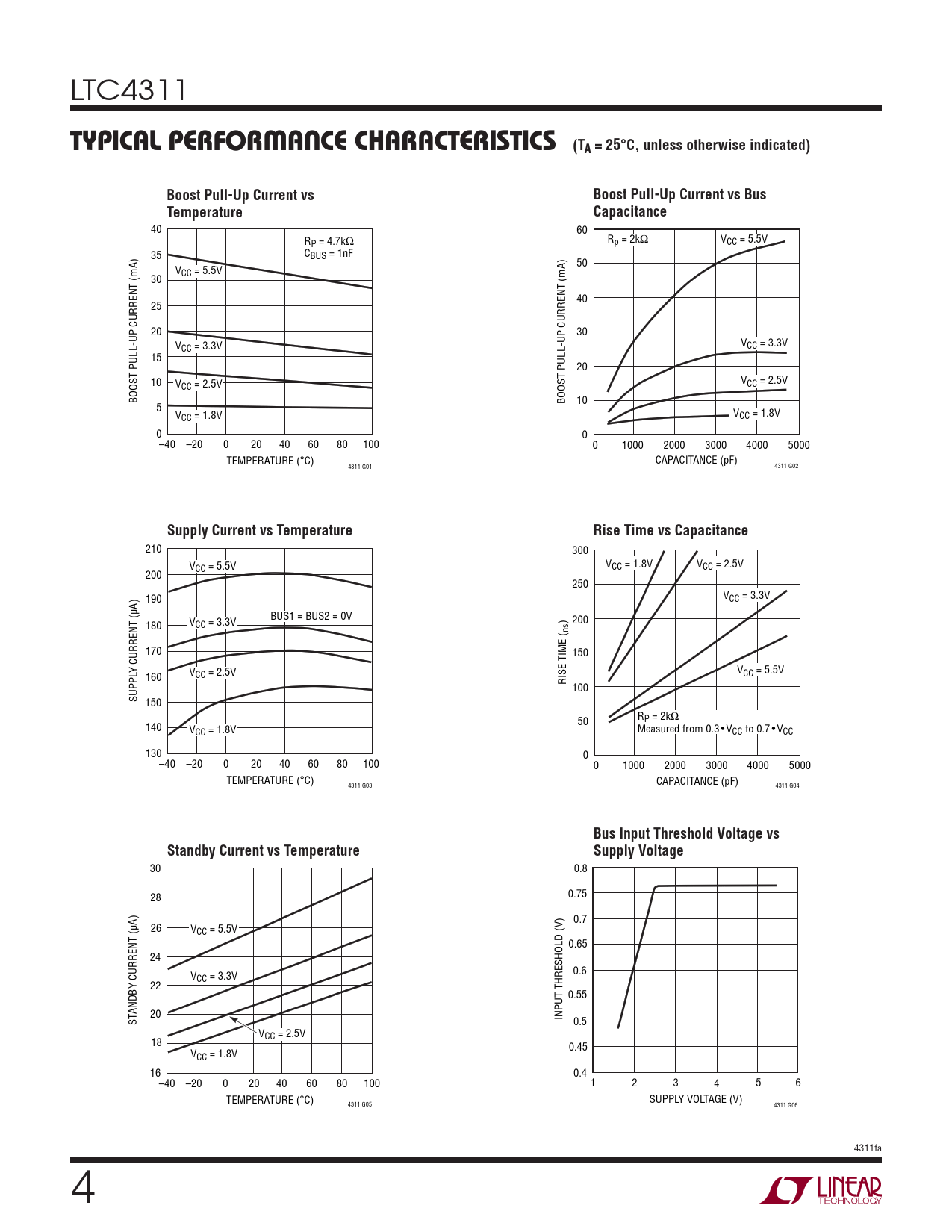

TYPICAL PERFORMANCE CHARACTERISTICS (TA = 25°C, unless otherwise indicated) Boost Pull-Up Current vs Boost Pull-Up Current vs Bus Temperature Capacitance
