Package Characteristics. Outline 15. Electrical Specifications at T = 25. General Purpose Diodes. Min. Max. V = 1 V Max. Breakdown
Model Line for this Datasheet
Text Version of Document
2

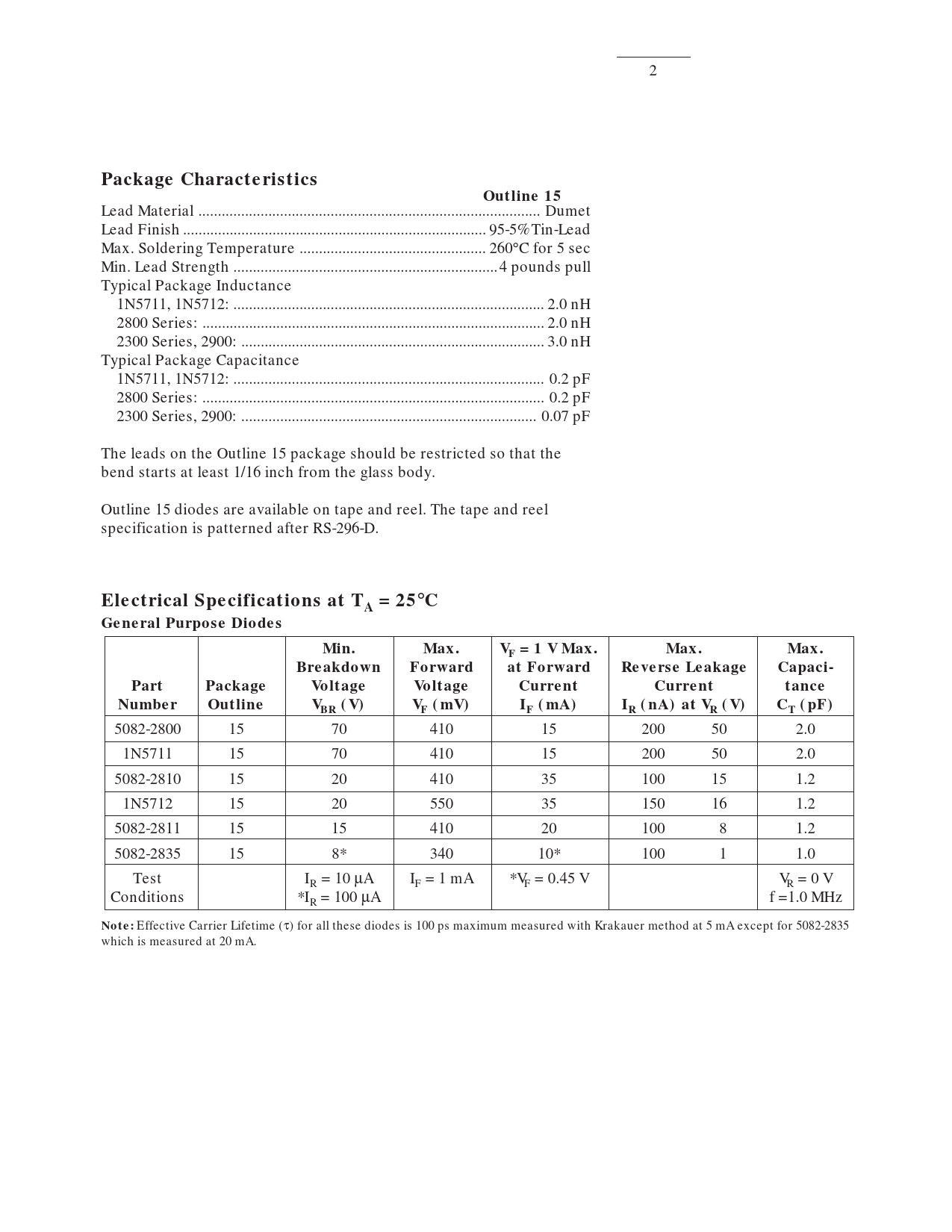

Package Characteristics Outline 15
Lead Material .. Dumet Lead Finish .. 95-5% Tin-Lead Max. Soldering Temperature .. 260°C for 5 sec Min. Lead Strength .. 4 pounds pull Typical Package Inductance 1N5711, 1N5712: .. 2.0 nH 2800 Series: .. 2.0 nH 2300 Series, 2900: .. 3.0 nH Typical Package Capacitance 1N5711, 1N5712: .. 0.2 pF 2800 Series: .. 0.2 pF 2300 Series, 2900: .. 0.07 pF The leads on the Outline 15 package should be restricted so that the bend starts at least 1/16 inch from the glass body. Outline 15 diodes are available on tape and reel. The tape and reel specification is patterned after RS-296-D.
Electrical Specifications at T = 25
°
C A General Purpose Diodes Min. Max. V = 1 V Max. Max. Max. F Breakdown Forward at Forward Reverse Leakage Capaci- Part Package Voltage Voltage Current Current tance Number Outline V (V) V (mV) I (mA) I (nA) at V (V) C (pF) BR F F R R T
5082-2800 15 70 410 15 200 50 2.0 1N5711 15 70 410 15 200 50 2.0 5082-2810 15 20 410 35 100 15 1.2 1N5712 15 20 550 35 150 16 1.2 5082-2811 15 15 410 20 100 8 1.2 5082-2835 15 8* 340 10* 100 1 1.0 Test I = 10 µA I = 1 mA *V = 0.45 V V = 0 V R F F R Conditions *I = 100 µA f =1.0 MHz R
Note:
Effective Carrier Lifetime (τ) for all these diodes is 100 ps maximum measured with Krakauer method at 5 mA except for 5082-2835 which is measured at 20 mA. Document Outline 1N5711 Features Description/Applications Maximum Ratings Outline 15 Package Characteristics Electrical Specifications Matched Pairs and Quads SPICE Parameters Typical Parameters Diode Package Marking
Package Characteristics Outline 15
Lead Material .. Dumet Lead Finish .. 95-5% Tin-Lead Max. Soldering Temperature .. 260°C for 5 sec Min. Lead Strength .. 4 pounds pull Typical Package Inductance 1N5711, 1N5712: .. 2.0 nH 2800 Series: .. 2.0 nH 2300 Series, 2900: .. 3.0 nH Typical Package Capacitance 1N5711, 1N5712: .. 0.2 pF 2800 Series: .. 0.2 pF 2300 Series, 2900: .. 0.07 pF The leads on the Outline 15 package should be restricted so that the bend starts at least 1/16 inch from the glass body. Outline 15 diodes are available on tape and reel. The tape and reel specification is patterned after RS-296-D.
Electrical Specifications at T = 25
°
C A General Purpose Diodes Min. Max. V = 1 V Max. Max. Max. F Breakdown Forward at Forward Reverse Leakage Capaci- Part Package Voltage Voltage Current Current tance Number Outline V (V) V (mV) I (mA) I (nA) at V (V) C (pF) BR F F R R T
5082-2800 15 70 410 15 200 50 2.0 1N5711 15 70 410 15 200 50 2.0 5082-2810 15 20 410 35 100 15 1.2 1N5712 15 20 550 35 150 16 1.2 5082-2811 15 15 410 20 100 8 1.2 5082-2835 15 8* 340 10* 100 1 1.0 Test I = 10 µA I = 1 mA *V = 0.45 V V = 0 V R F F R Conditions *I = 100 µA f =1.0 MHz R
Note:
Effective Carrier Lifetime (τ) for all these diodes is 100 ps maximum measured with Krakauer method at 5 mA except for 5082-2835 which is measured at 20 mA. Document Outline 1N5711 Features Description/Applications Maximum Ratings Outline 15 Package Characteristics Electrical Specifications Matched Pairs and Quads SPICE Parameters Typical Parameters Diode Package Marking
